AJAX

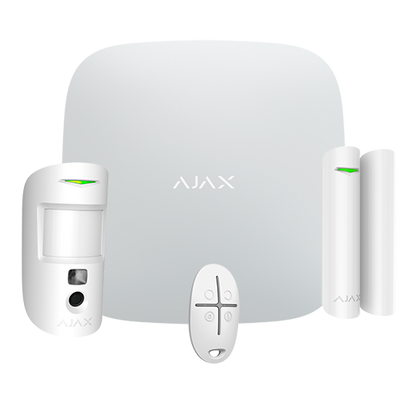

HUB-STARTER CAM PLUS AJAX Kit

Ref.: AJ-STARTERKITPLUS-CAM-HDR-W
In stock
€590,40 VAT included

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

AJAX HUB-STARTER CAM PLUS Kit. See the contents and options of this kit below.

Product information and features

GSAJ-STARTERKITPLUS-CAM Kit consists of:

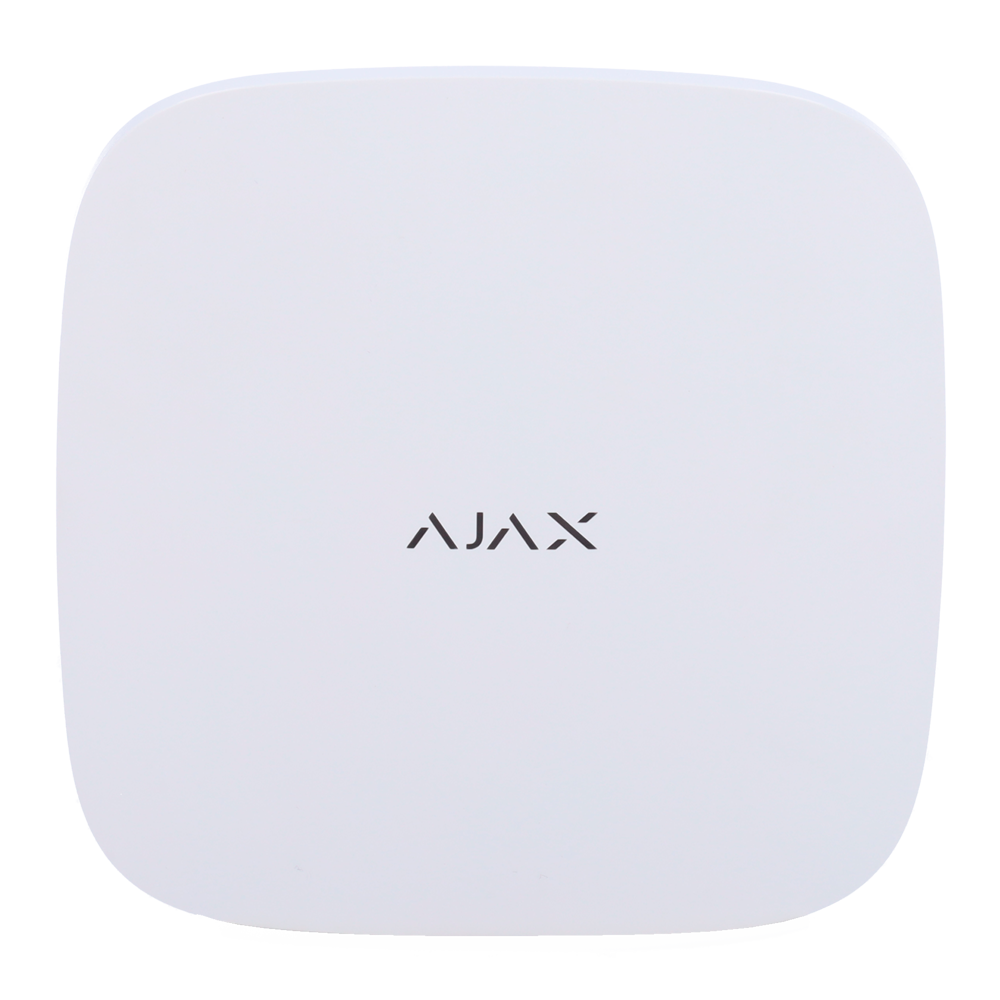

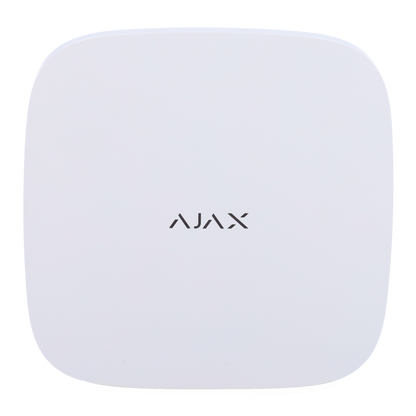

Control Panel

Brand Ajax
Security grade Grade 2
Model AJ-HUB2PLUS-W
RF frequency 868 MHz. Jeweller radio protocol
Internal security Anti-opening tamper
Internal siren Not available
Communication Ethernet / Wi-Fi / Dual SIM 4G (LTE)
Maximum number of devices 200 (max. 10 sirens)
Video integration Up to 100 IP Cameras or NVR channels
Number of users Up to 200
Communication with CRA Contact ID / SIA
Compatibility Not compatible with ocBridge and uartBridge
Finish material ABS plastic
Power supply AC 110~250 V, 50/60 Hz
Backup battery Lasts up to 15 hours
Operating temp. +5°C ~ 40°C
Dimensions 163 (H) x 163 (W) x 36 (D) mm

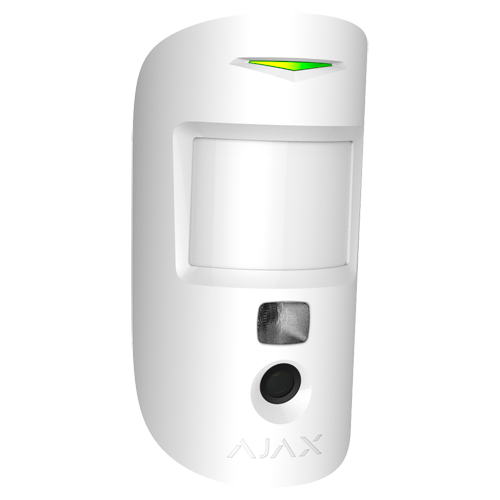

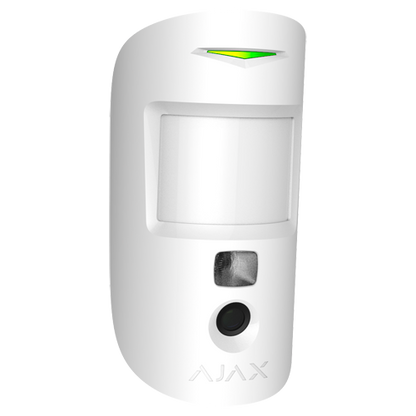

PIRCAM

Model AJ-MOTIONCAM-W
Technology Volumetric PIR with camera
Security grade Grade 2
PIR lens 24 zones and 6 planes
Detection field 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweller and Wings (image transmission)
Transmission distance ≤ 1700 m in open space
Pet detector ≤ 20 kg, ≤ 50 cm
Anti-masking Not available
Sensitivity Adjustable. 3 levels (low, medium and high)
Image resolution Up to VGA (640 x 480)
Number of images Up to 5 images per detection
Image transmission Image transmission and reception in less than one minute
Infrared lighting IR for night mode
LED indicators Alarm, tamper, signal
Battery 2 CR123A 3.0 V batteries (lasts up to 4 years)
Compatibility AJ-HUB2-W/B
Operating temp. 0°C ~ 40°C
Finish material ABS plastic
Dimensions (without bracket) 135 (H) x 70 (W) x 60 (D) mm

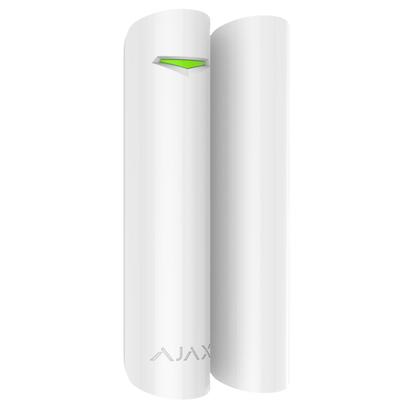

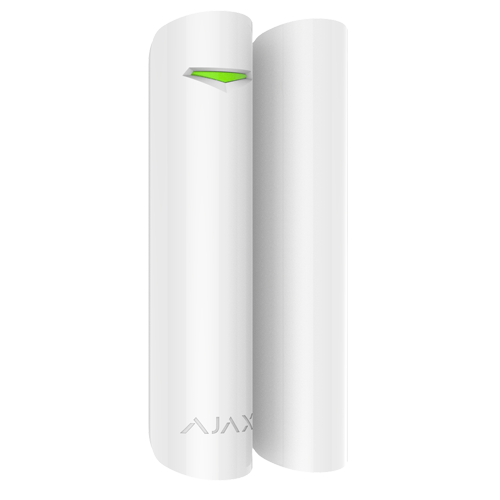

Magnetic contact

Model AJ-DOORPROTECT-W
Security grade Grade 2
Transmission distance ≤ 2000 m in open space
Frequency 868 MHz
Battery 1 CR123A 3.0 V battery (approx. 7 years duration)
Finish material ABS plastic
Dimensions 90 mm (D) x 20 (Ø) mm

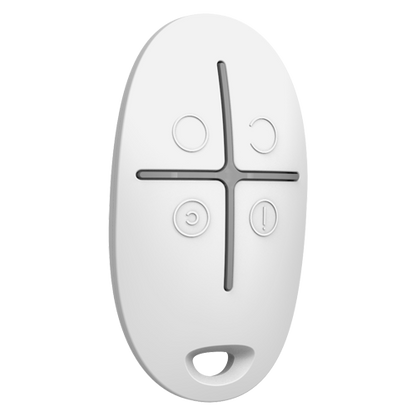

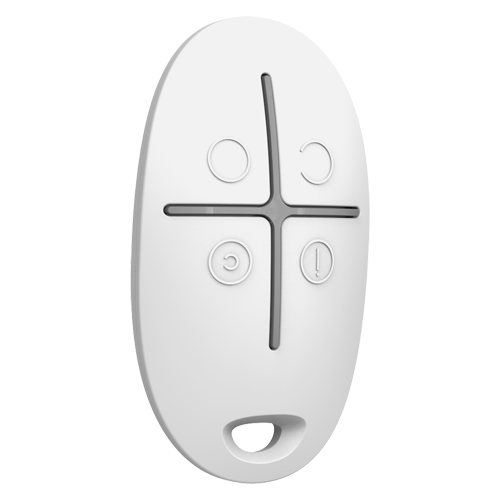

Remote control

Model AJ-SPACECONTROL-W
Power supply 1 3 V CR2032 battery
Transmission distance ≤ 1000 m in open space
Frequency 868 MHz
Battery 1 CR123A 3.0 V battery (approx. 5 years duration)
Operating temp. -20°C ~ 50°C
Finish material ABS plastic
Dimensions 65 (H) x 37 (W) x 10 (D) mm
