Z-Wave Smart Dimmer Controller Module
Dispatch: Within 2 business days.
Once your order has been processed, you will receive a tracking number by email.
Description
Z-Wave smart Dimmer controller module. See below for the features and application conditions of this product.
Product information and features
Description

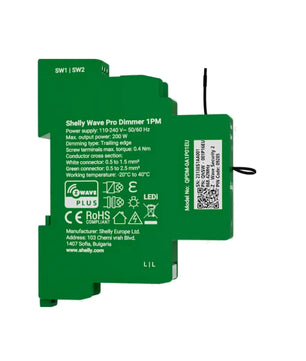

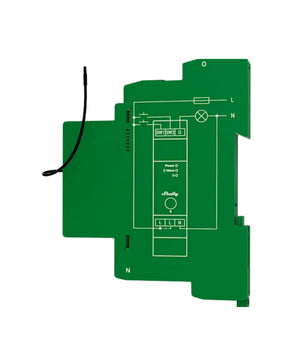

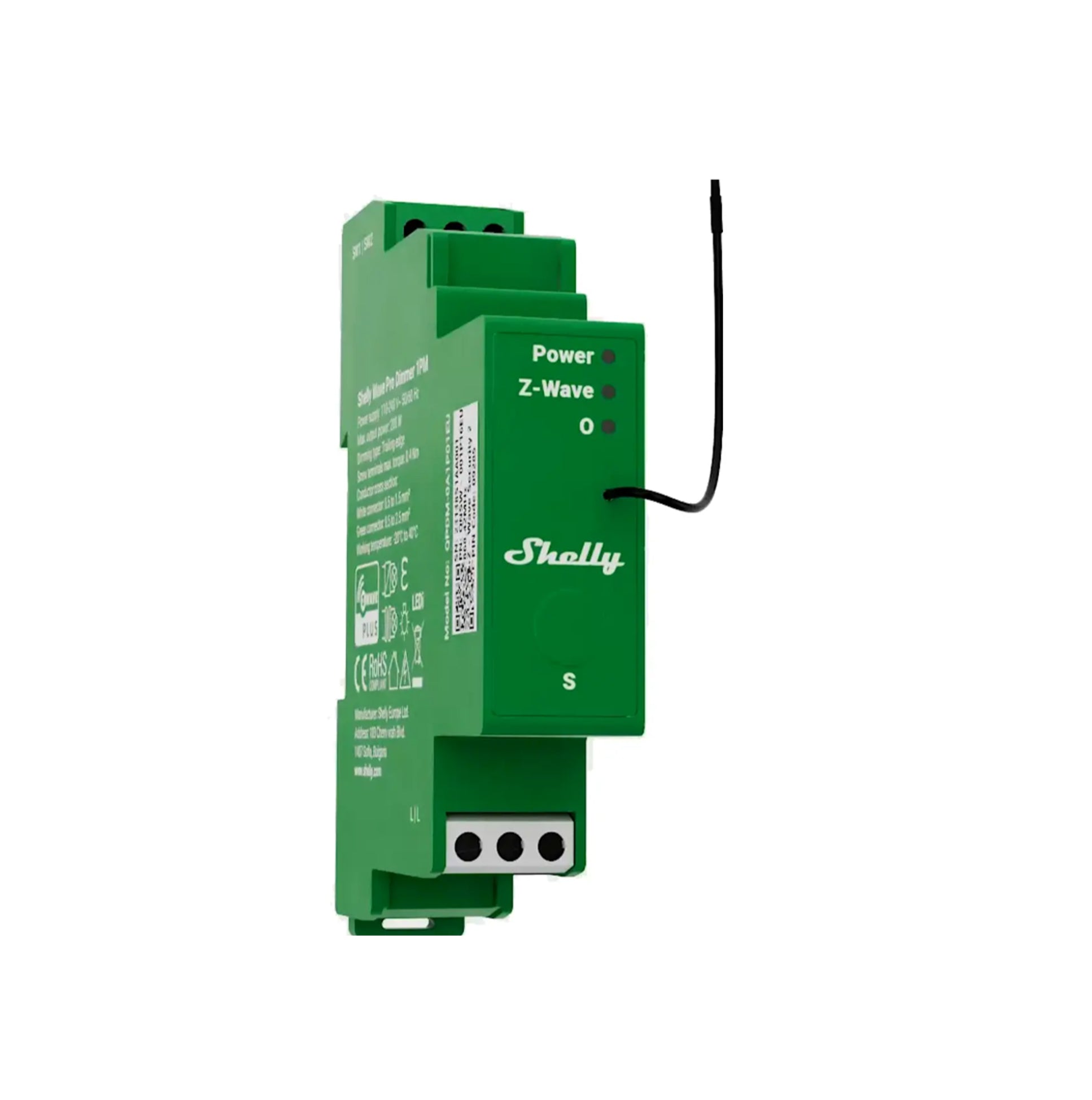

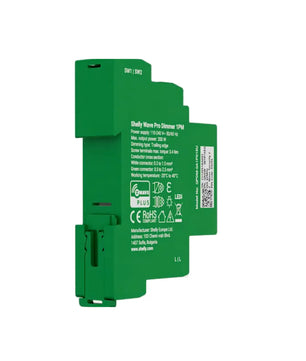

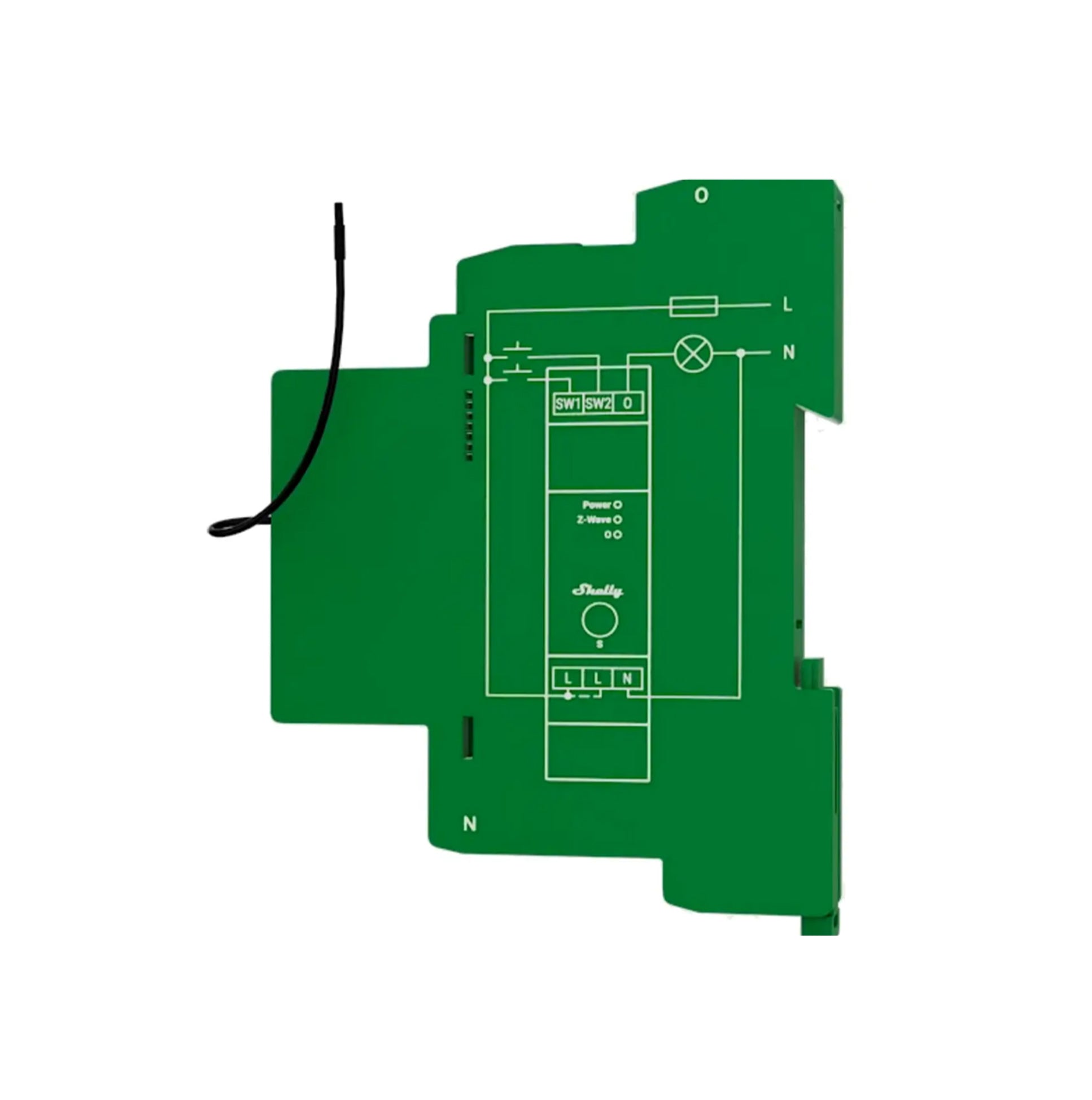

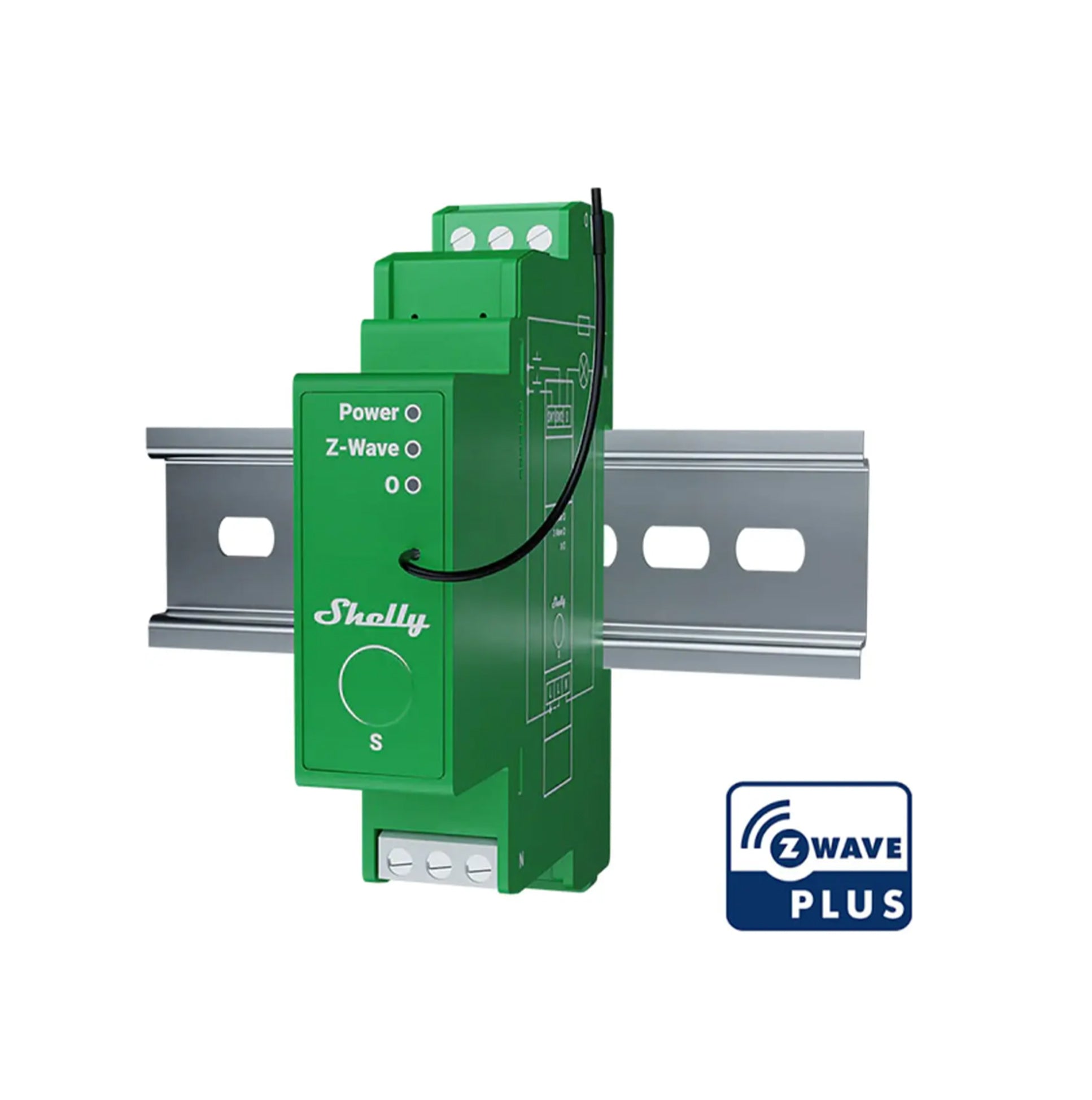

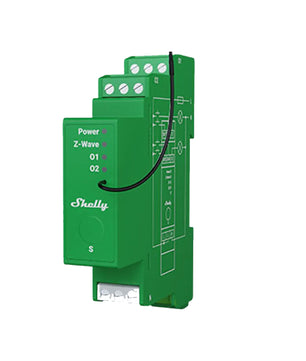

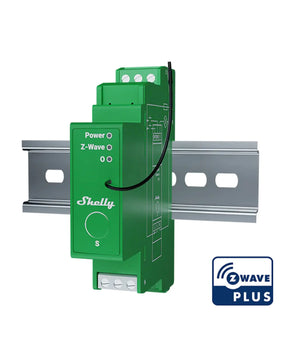

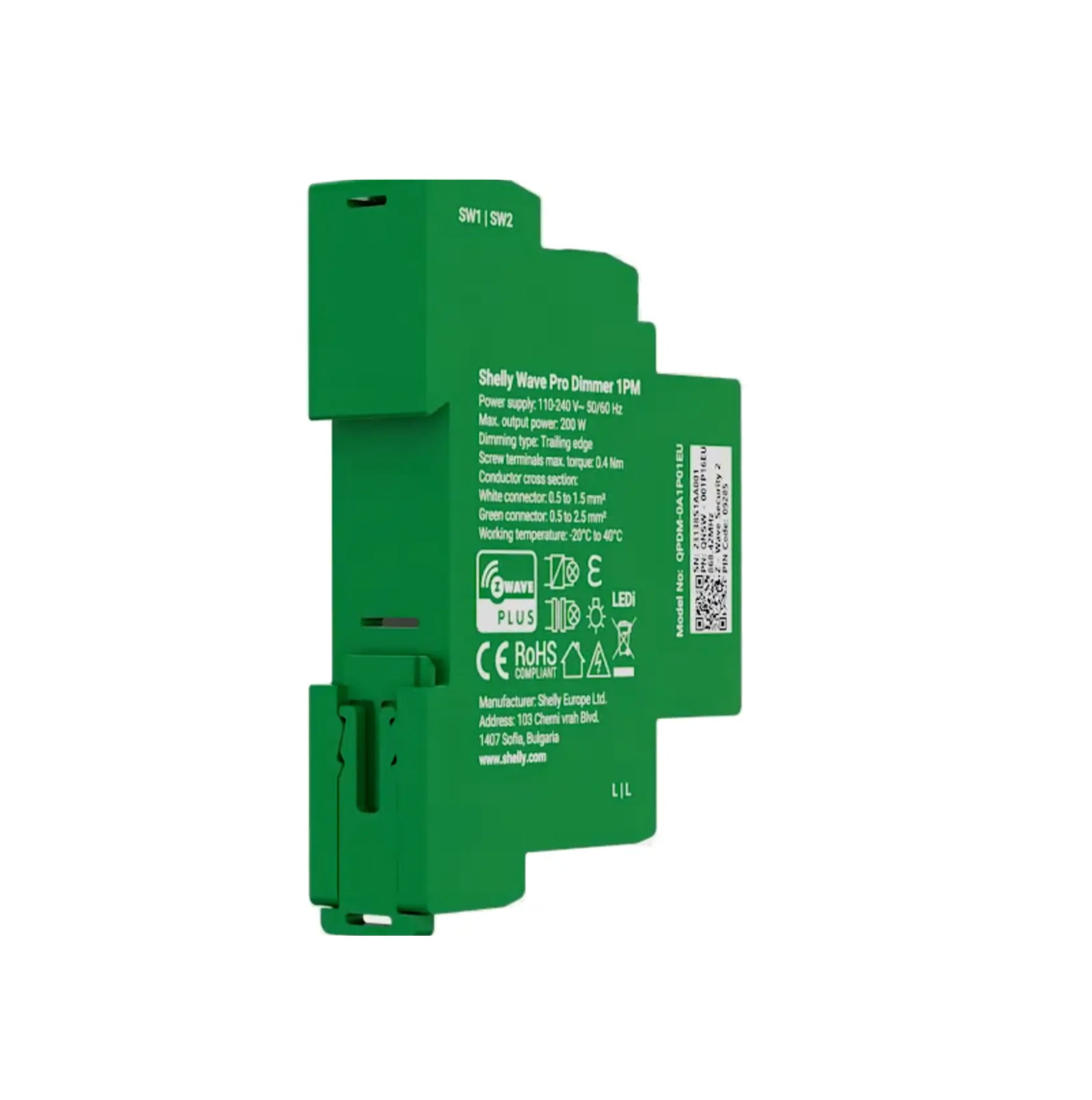

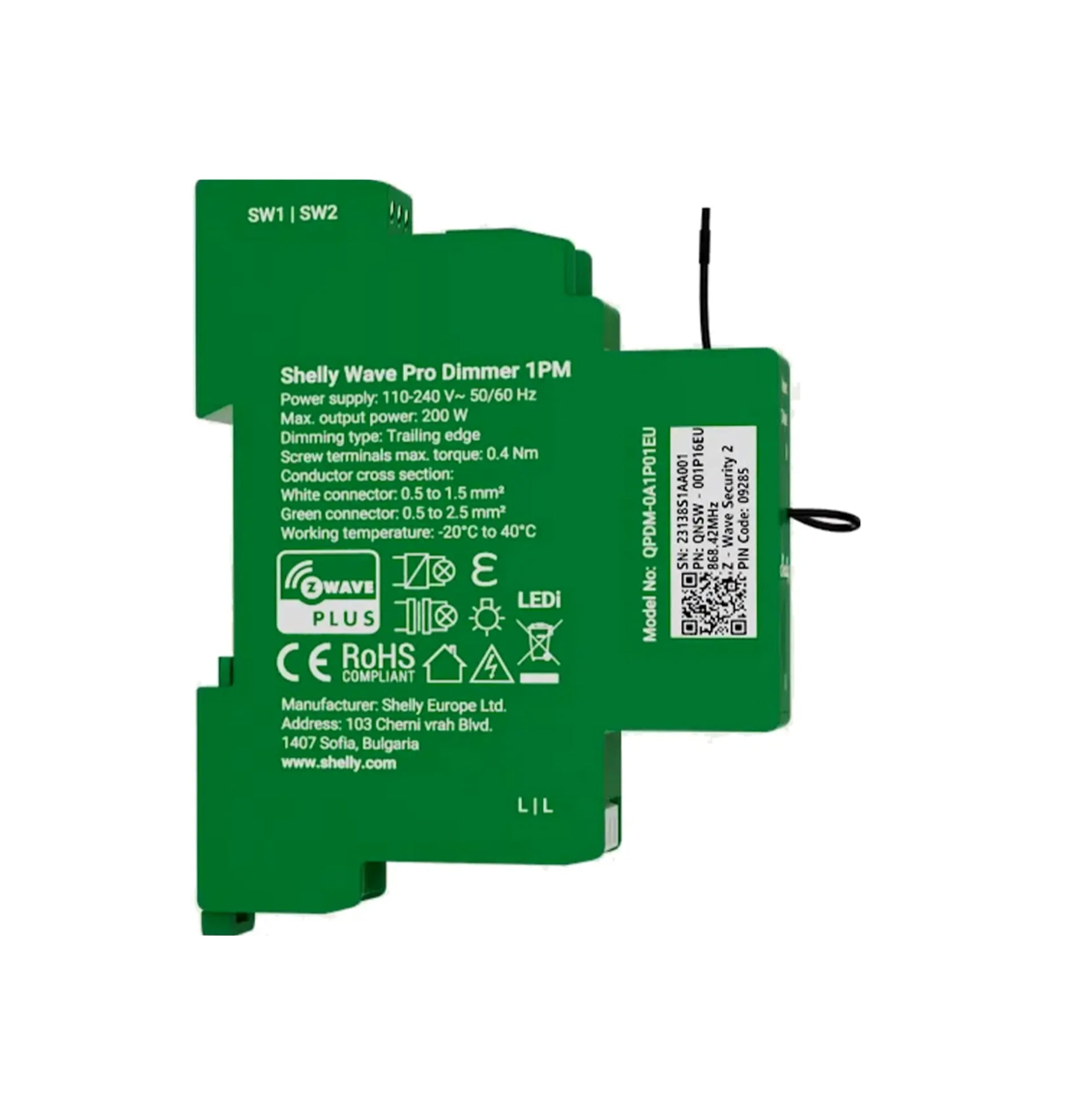

The Shelly Wave Pro Dimmer 1PM is a 1-channel smart dimmer with power measurement, designed for DIN rail mounting. Ideal for residential and professional applications, it allows you to remotely control and adjust the light intensity via the Z-Wave® network, ensuring secure and flexible integration with more than 4000 certified devices. With advanced security features and simplified installation, it is the ideal choice for automation projects in new or renovated buildings.
Specifications
| Power supply | 110–240 V AC, 50/60 Hz External protection: 10 A, B or C curve |
| Own consumption | < 0.3 W |
| Dimming capacity | Dimming type: trailing edge Maximum output power: 200 W |
| Supported load types | Dimmable LED bulbs: up to 200 W Incandescent and halogen: up to 200 W Ferromagnetic transformers: up to 200 VA Dimmable electronic transformers: up to 200 W |
| Smart features | Power measurement: yes Z-Wave S800, 868.4 MHz protocol Compatibility with: S0, S2 Unauthenticated, S2 Authenticated OTA updates Range: up to 40 m indoors Integrated Z-Wave repeater |
| Security | Overheating protection Overload protection Overvoltage protection AES128 encryption |
| Electrical interfaces |
Inputs: 2 (switch or button) Output: 1 channel Screw terminals (0.5 to 2.5 mm² / 20–14 AWG in the green connector |
| User interface |
Physical button (S) for pairing, reset and calibration Status LED |
| Operating environment |
Temperature: -20 ºC to 40 ºC Humidity: 30% to 70% RH Maximum altitude: 2000 m |
| Dimensions and materials |
Dimensions: 94 × 19 × 69 mm Weight: 75 g Material: V-0 plastic (flame retardant) Color: Lime Green |
