Centralised Wall Control with Touchscreen

Ref.: 095-7978 MAUSER
In stock
€211,61 VAT included
COLOR: BLACK

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

Centralised Wall Control with Touchscreen. See below for the features and application requirements of this product.

Product information and features

Description

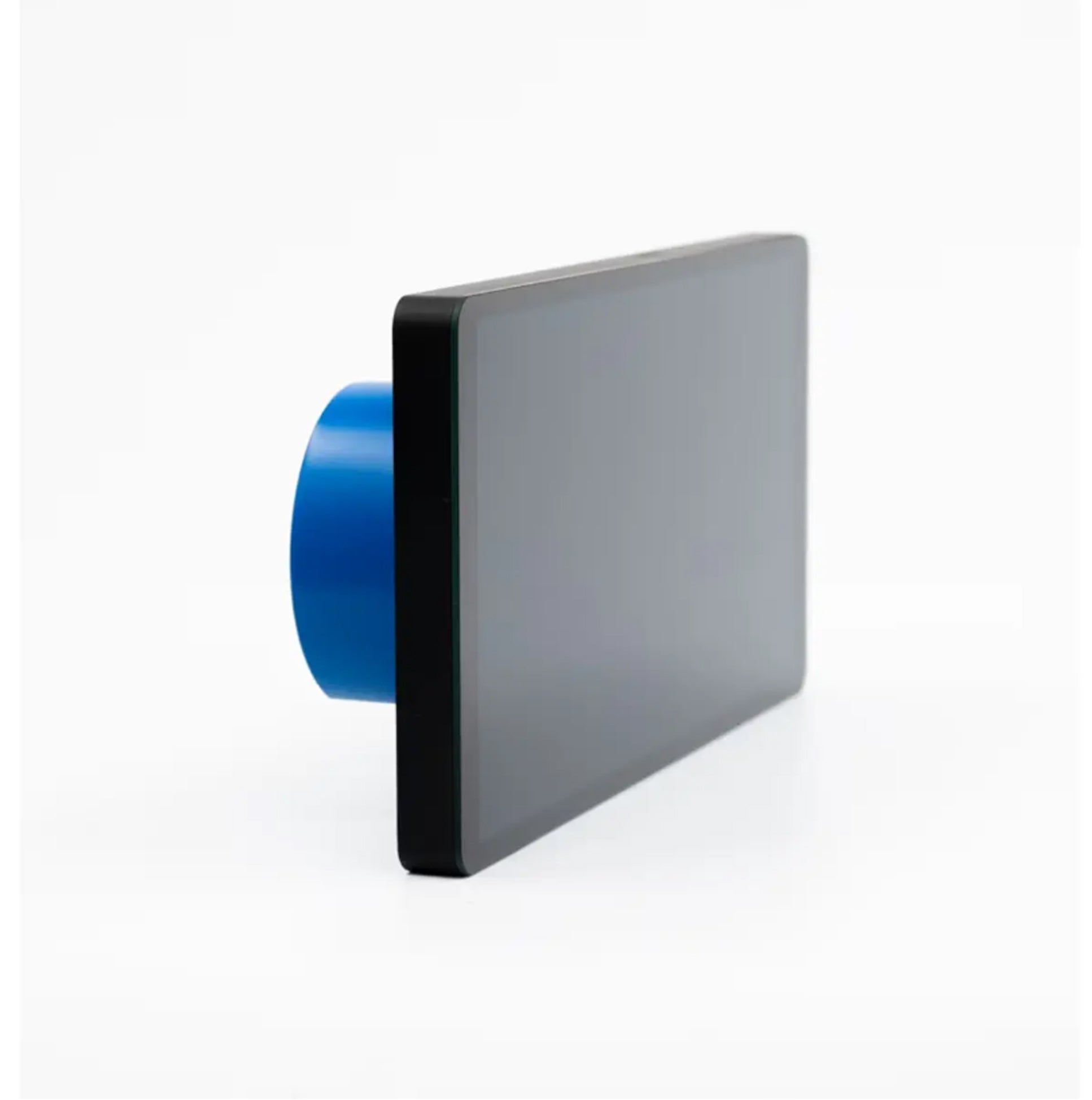

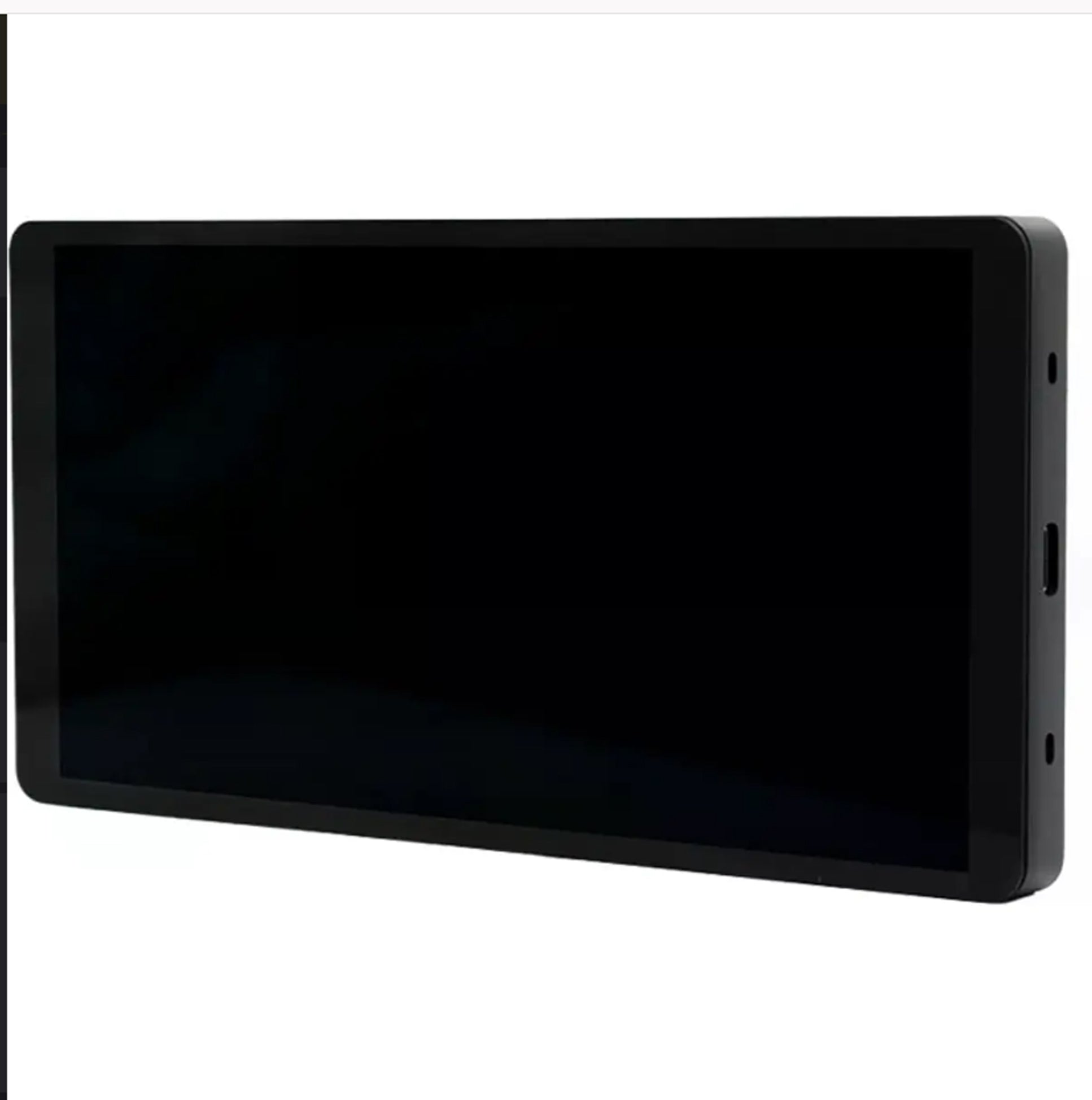

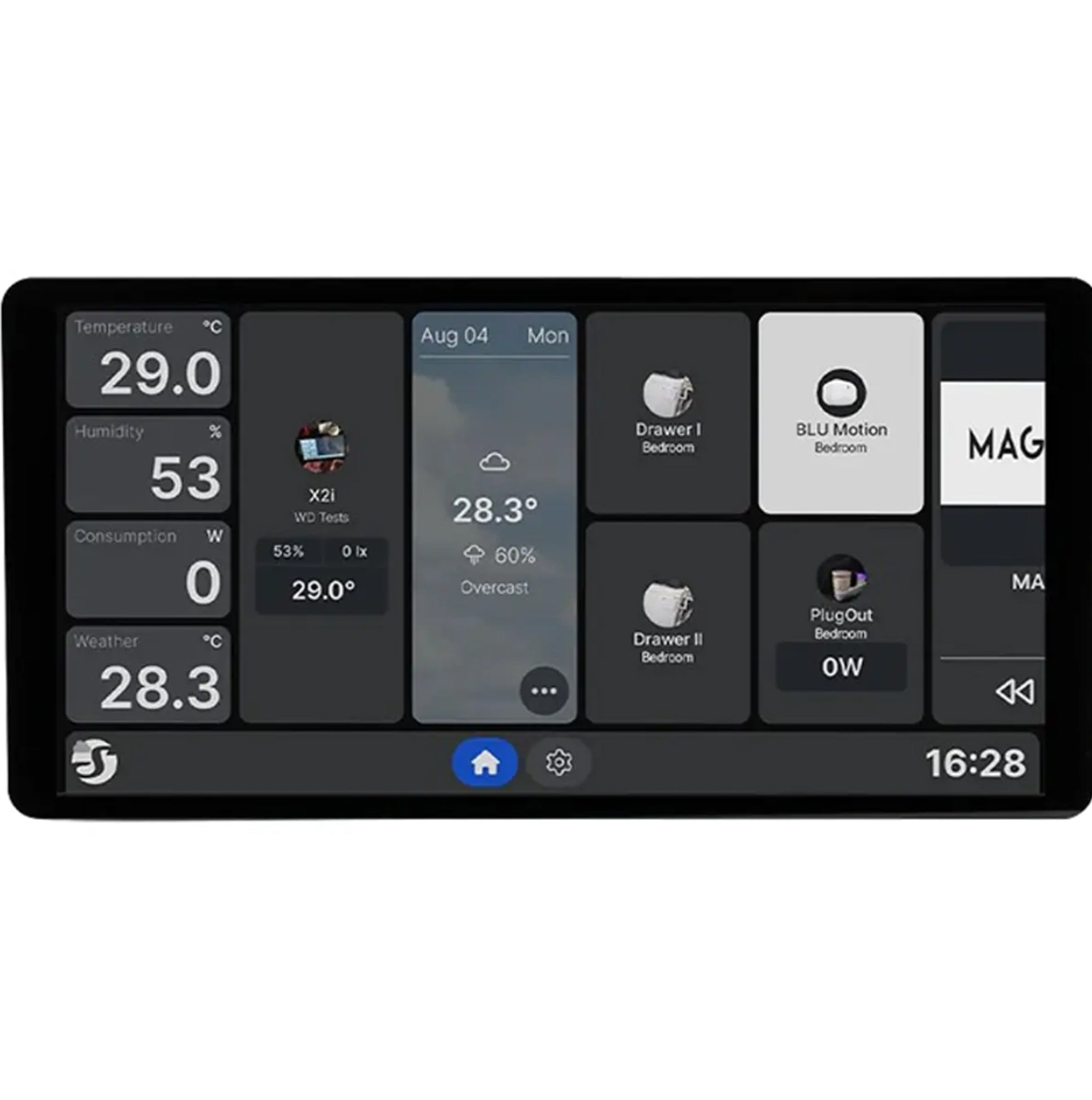

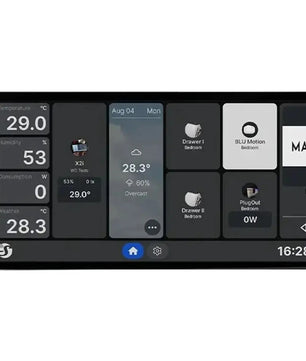

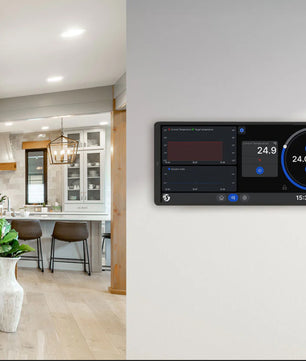

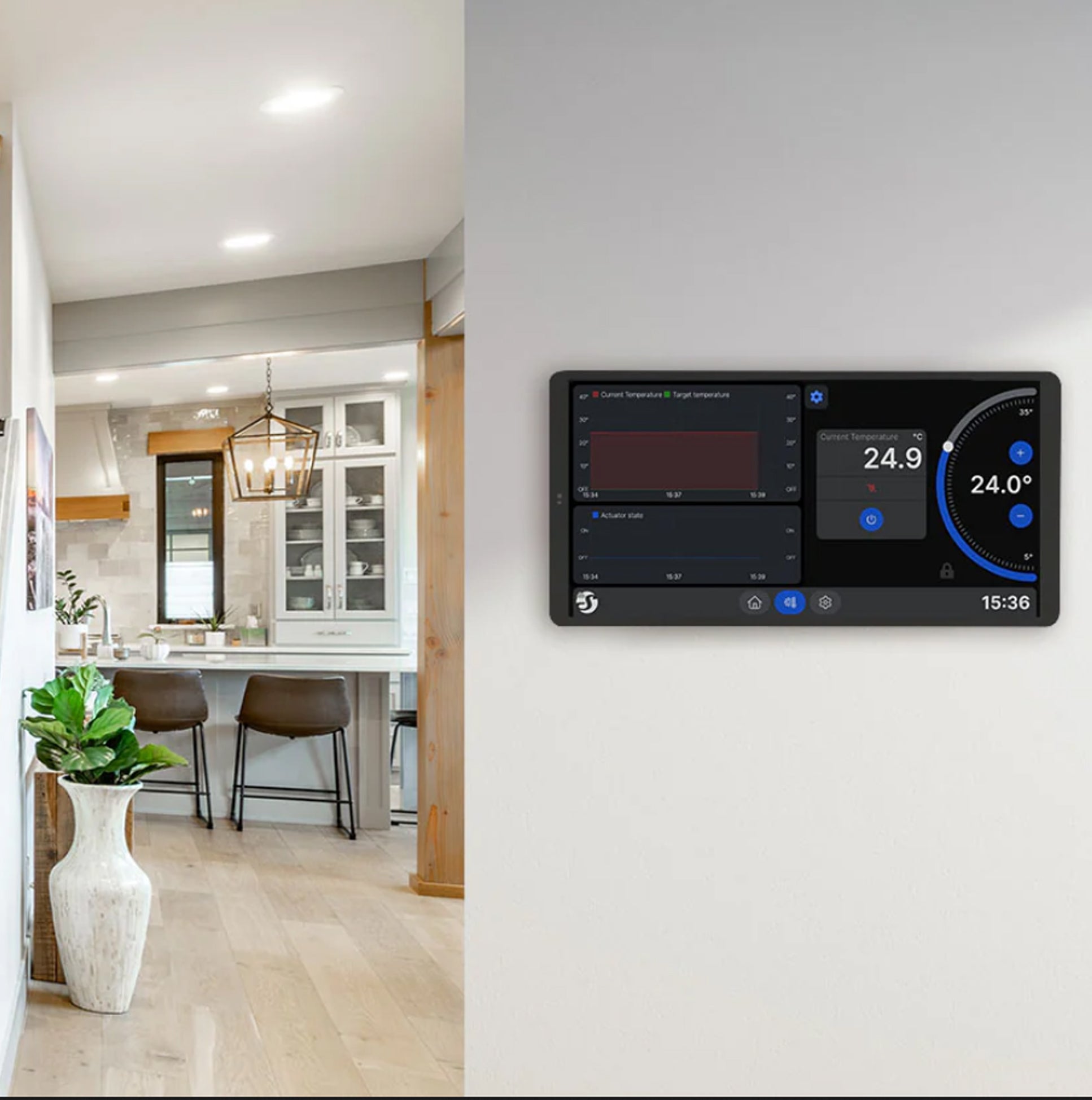

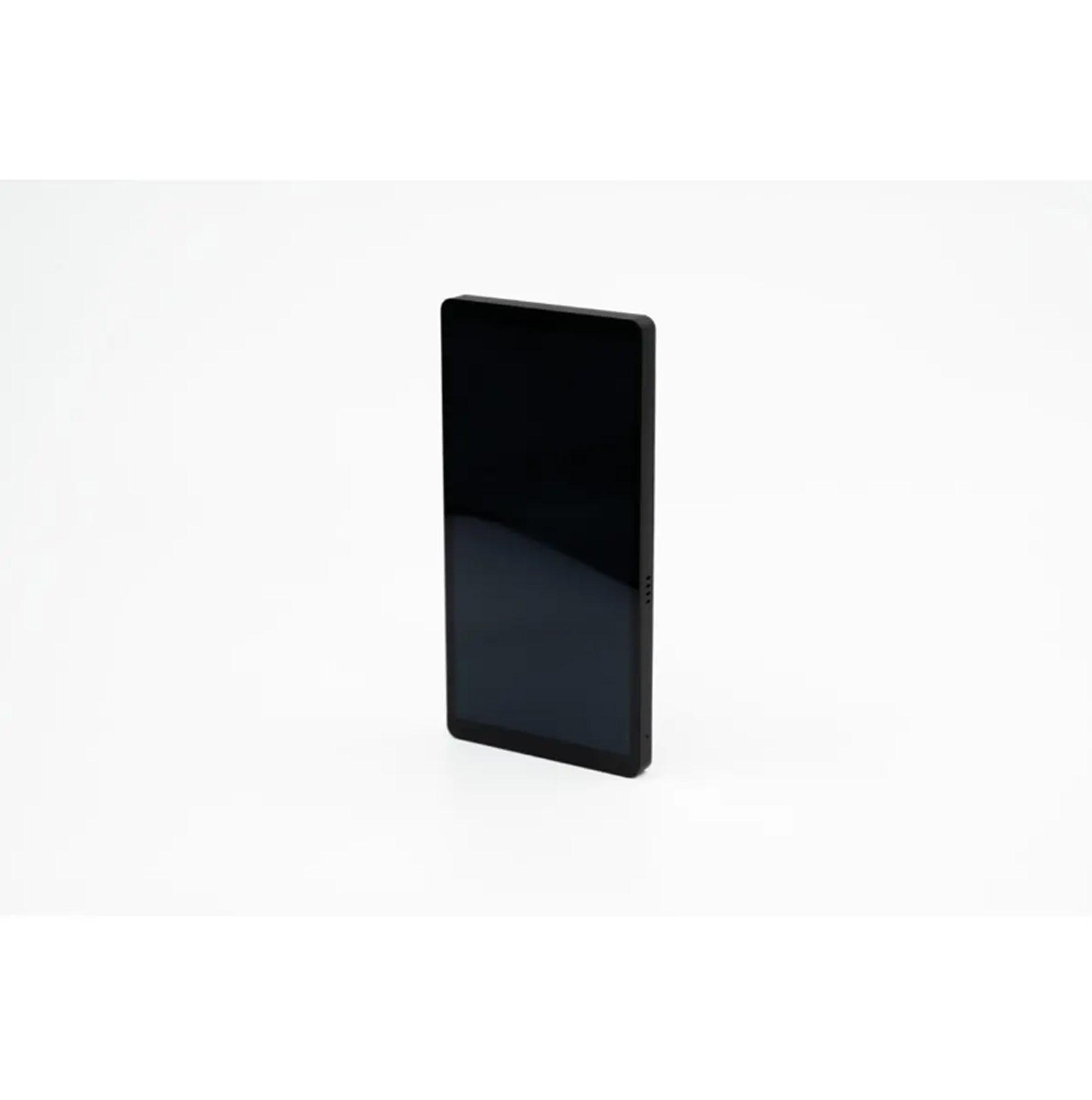

Shelly Wall Display X2i is a smart home control panel designed for wall mounting and everyday use as a central control hub. The 6.95” colour touchscreen, with a fluid and customisable interface, ensures quick access to lighting, scenes, routines and device statuses, with an immediate response thanks to the quad-core processor.

Specifications

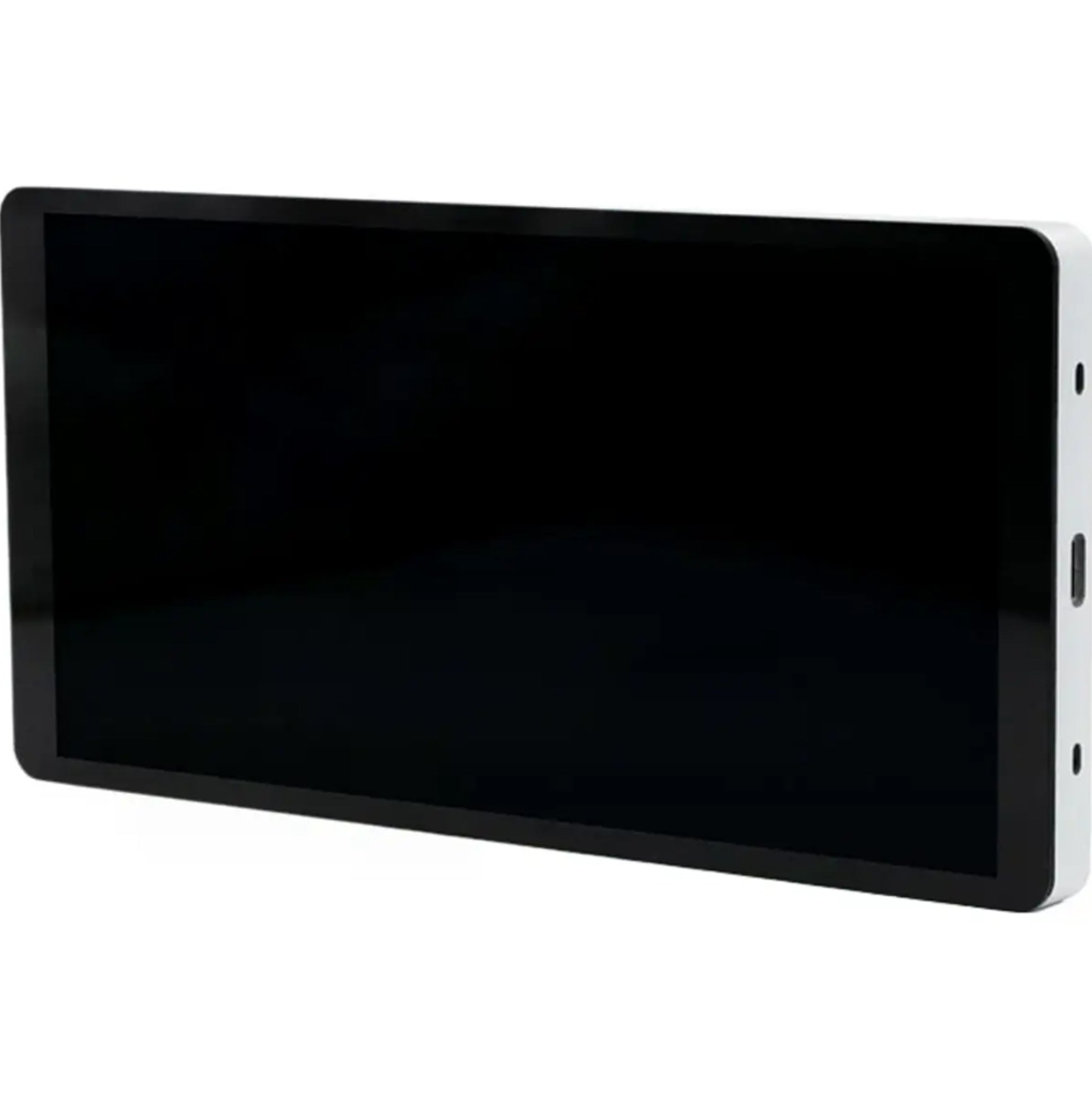

 Screen and interface Type: Colour capacitive touchscreen (5-point)
Size: 6.95” (landscape or portrait orientation)
Resolution: 1440 × 720
Connectivity and protocols Wi-Fi: Dual-band Wi-Fi 6 (2.4 GHz and 5 GHz)
    · Max. RF power: < 20 dBm
Bluetooth: 5.0 (2402–2480 MHz)
    · Max. RF power: < 4 dBm
Protocols: HTTP; RPC over HTTP; RPC over BLE; MQTT
Power supply and consumption Power supply (base): 100–240 V~, 50/60 Hz
Power supply (USB-C): 5 V⎓, 1 A
Consumption: < 5 W

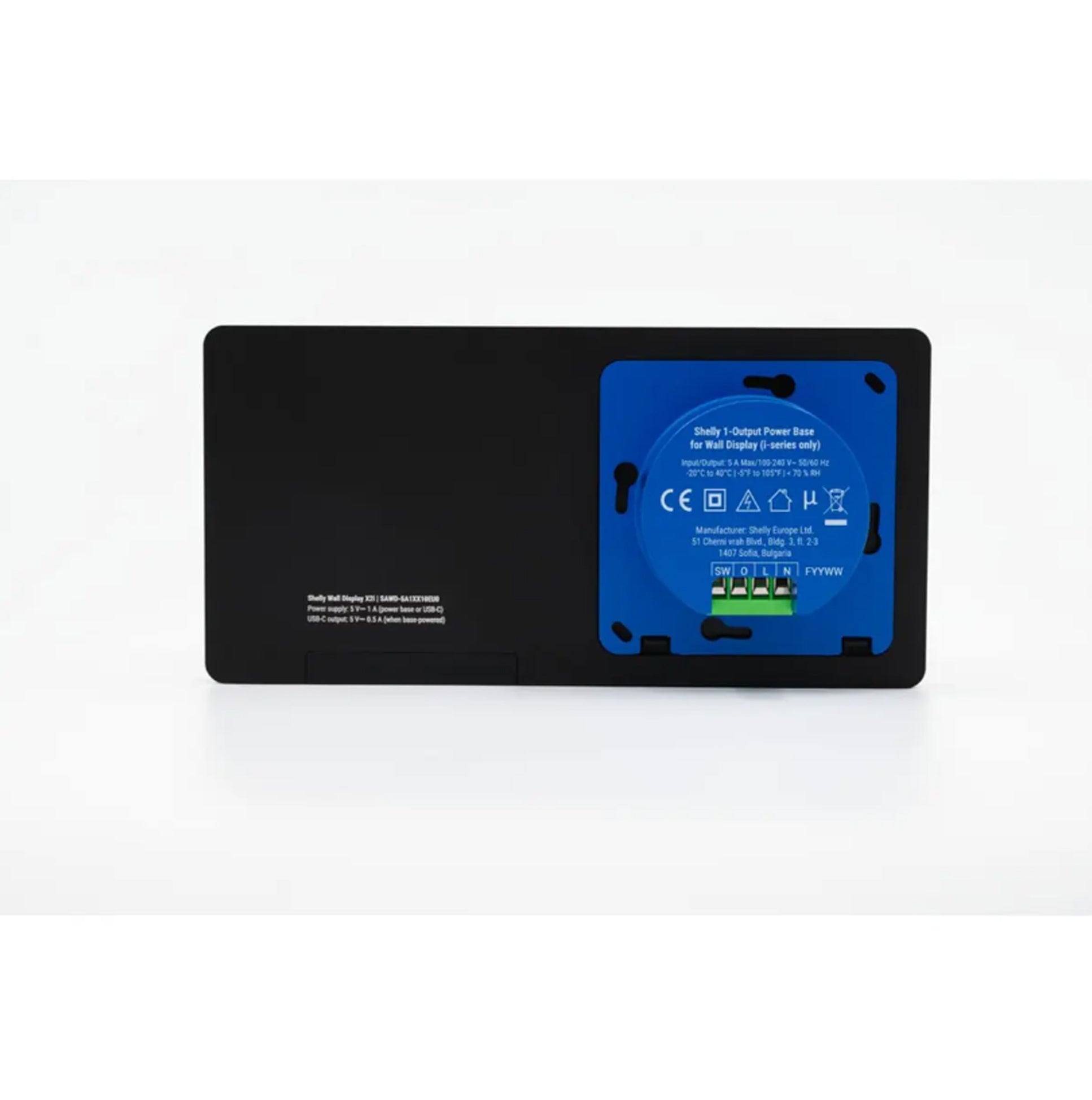

Output (base with relay – 1 circuit) Max. switching voltage: 240 V~
Max. switching current: 5 A

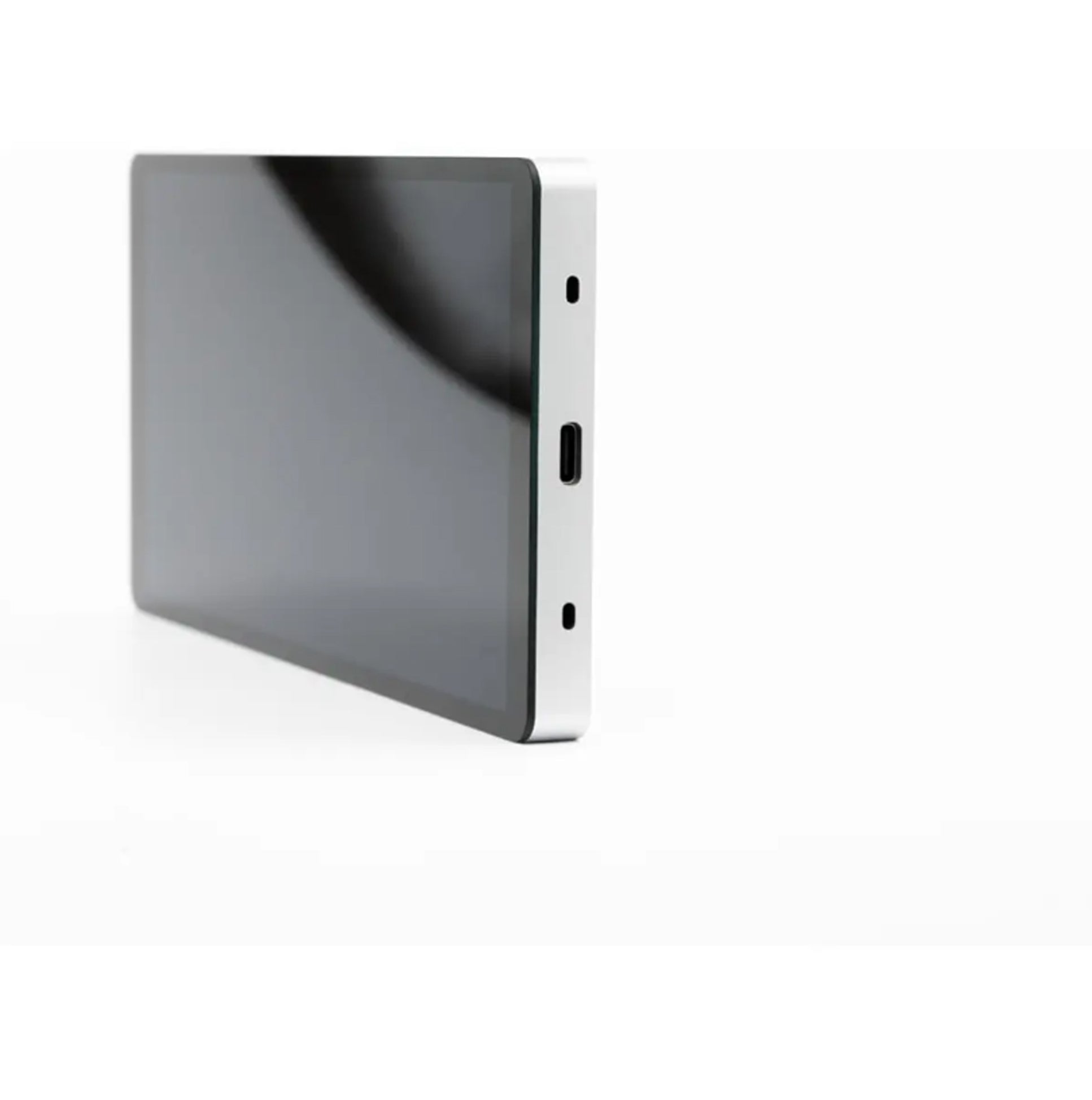

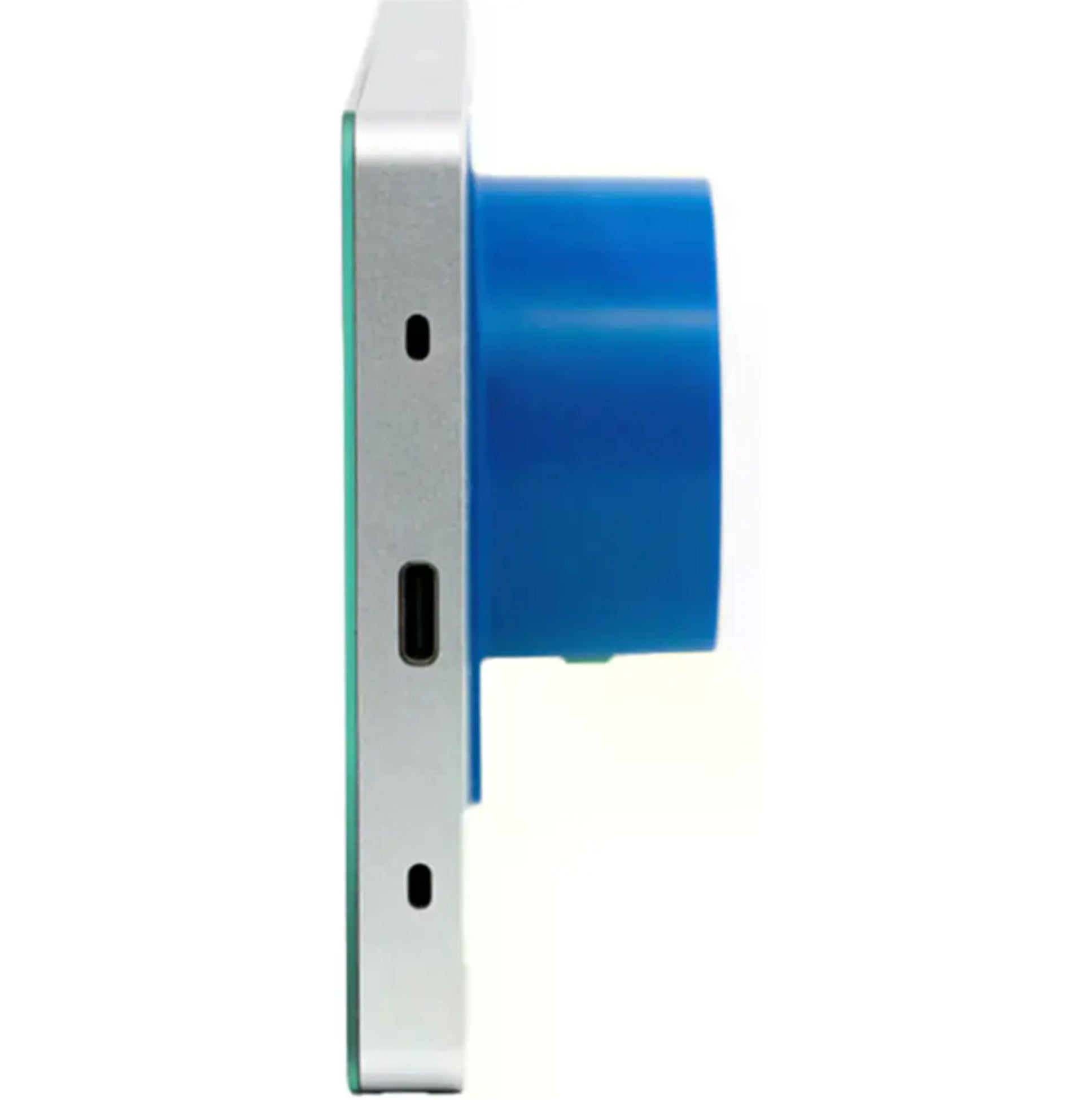

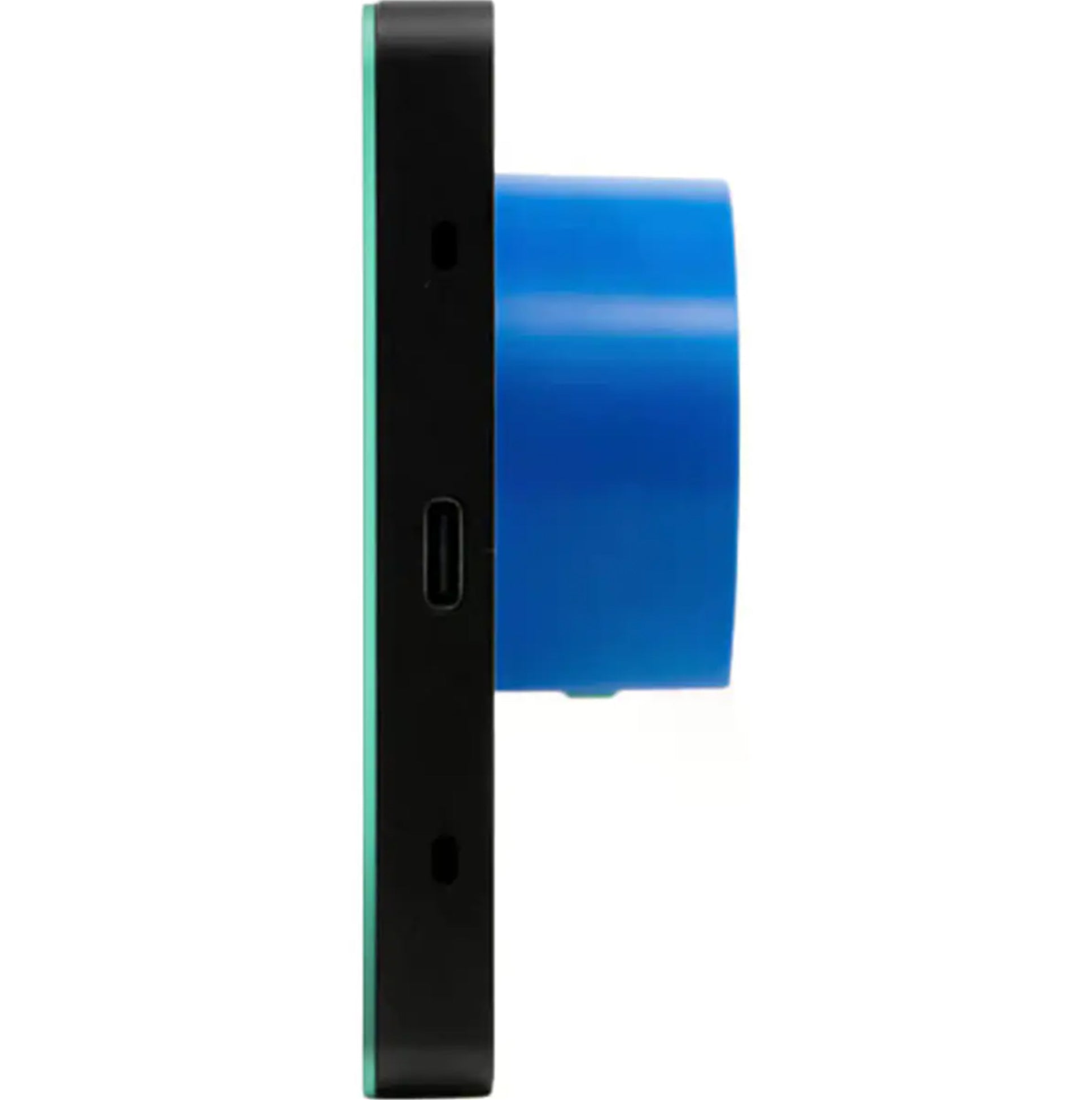

USB-C (port): 5 V⎓, 0.5 A
Sensors and audio Light sensor (LUX): Yes
Proximity sensor: Yes
G-sensor: Yes
Microphone: Yes
Speaker: 0.8 W × 1
Processing and system CPU: Rockchip RK3326-S, Quad-core Cortex-A35, 1.5 GHz
RAM: 2 GB
Flash: 8 GB
Operating system: Android 11
Firmware capabilities Schedules: 20
Webhooks (URL actions): 20 (with 2 URLs per webhook)
Scripting: No
Environment Operating temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Max. altitude: 2000 m

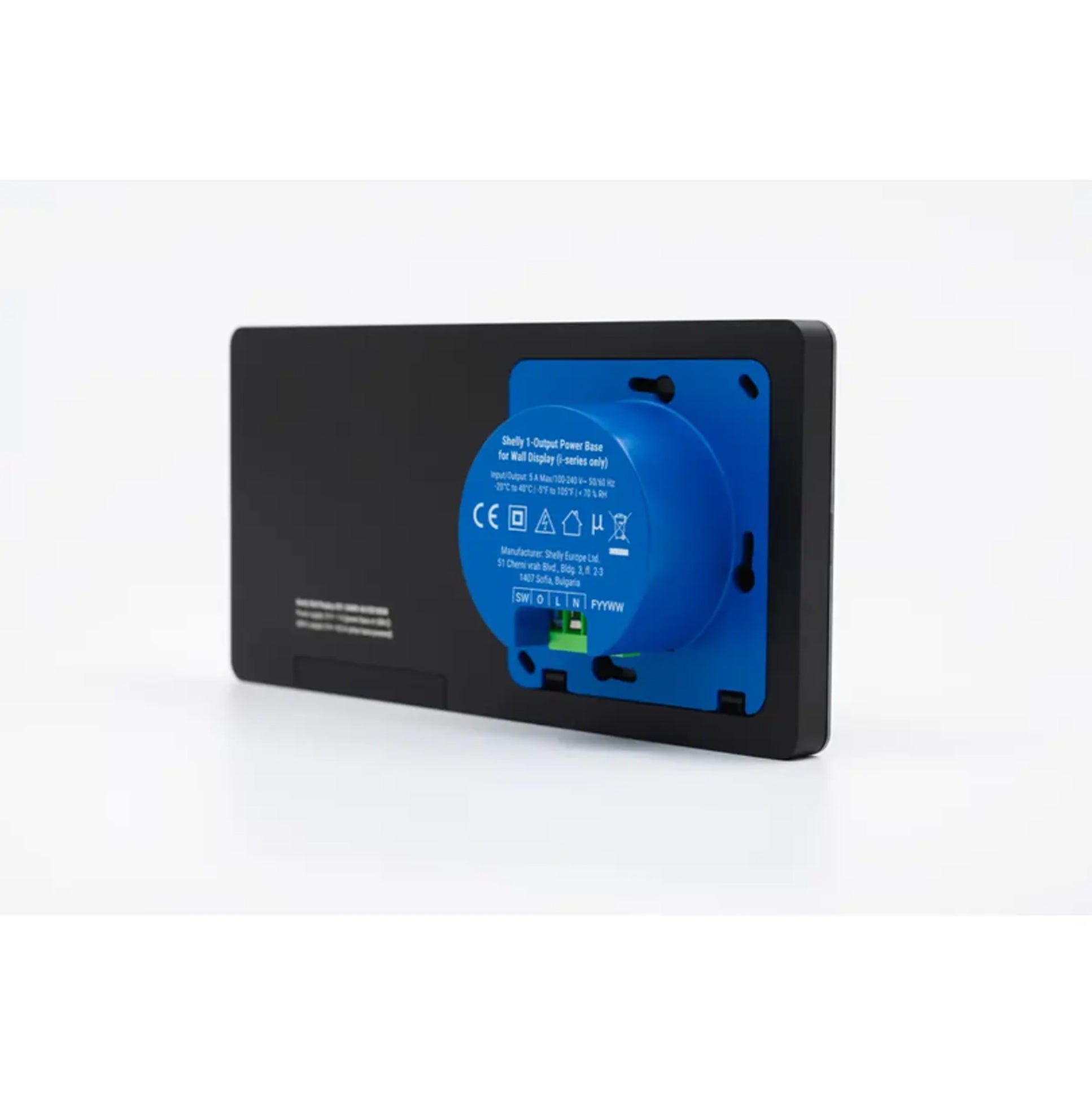

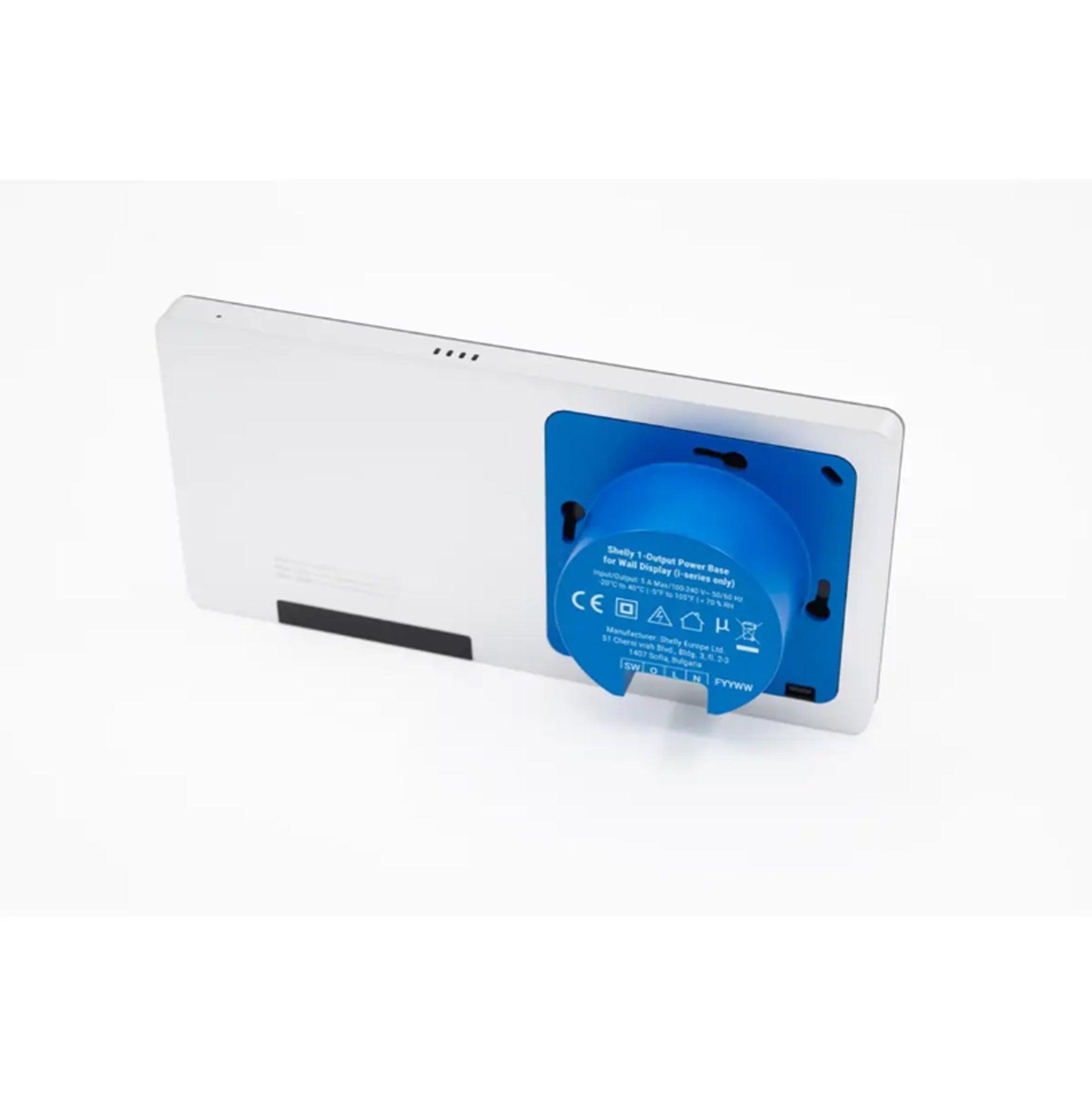

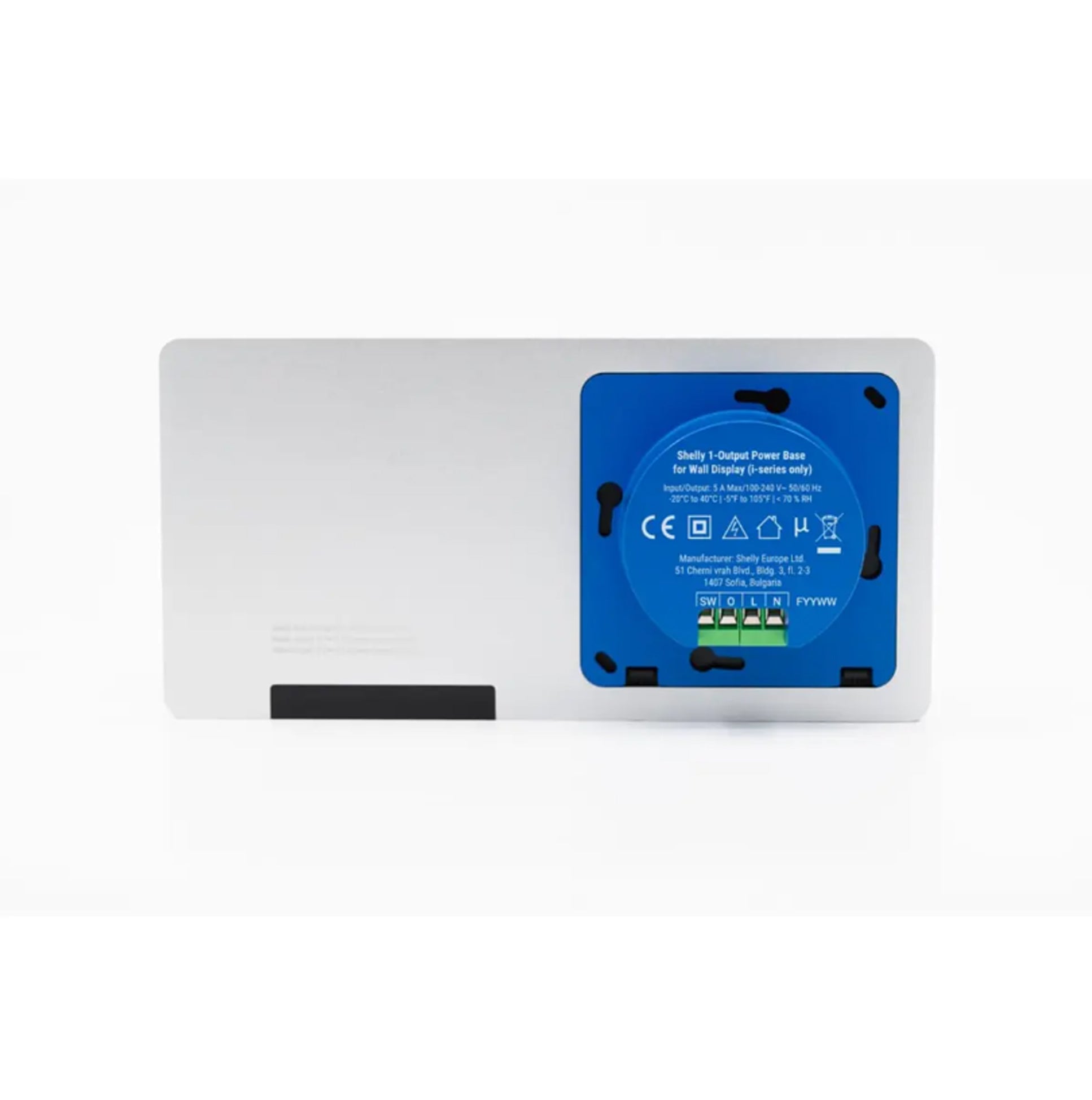

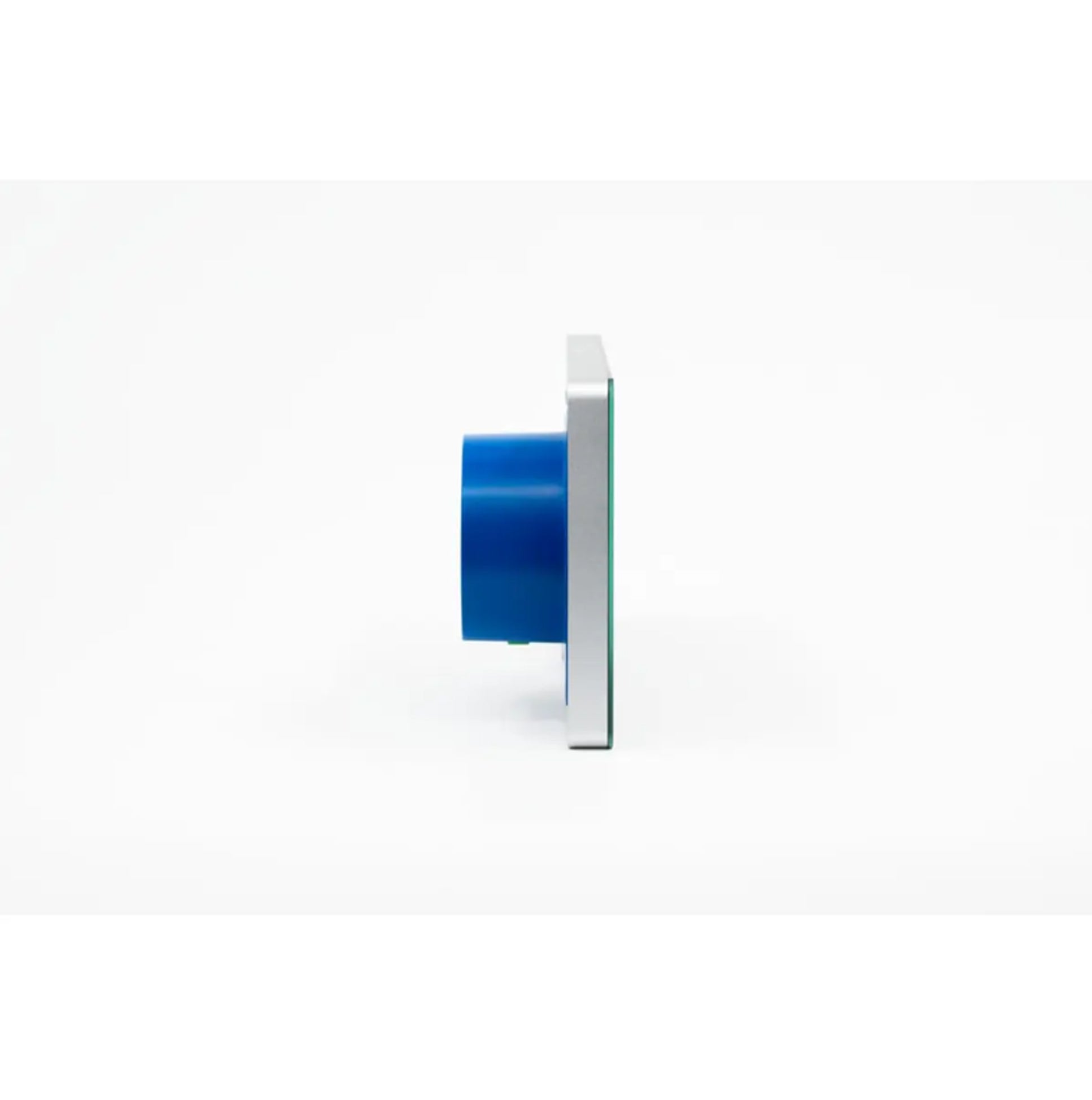

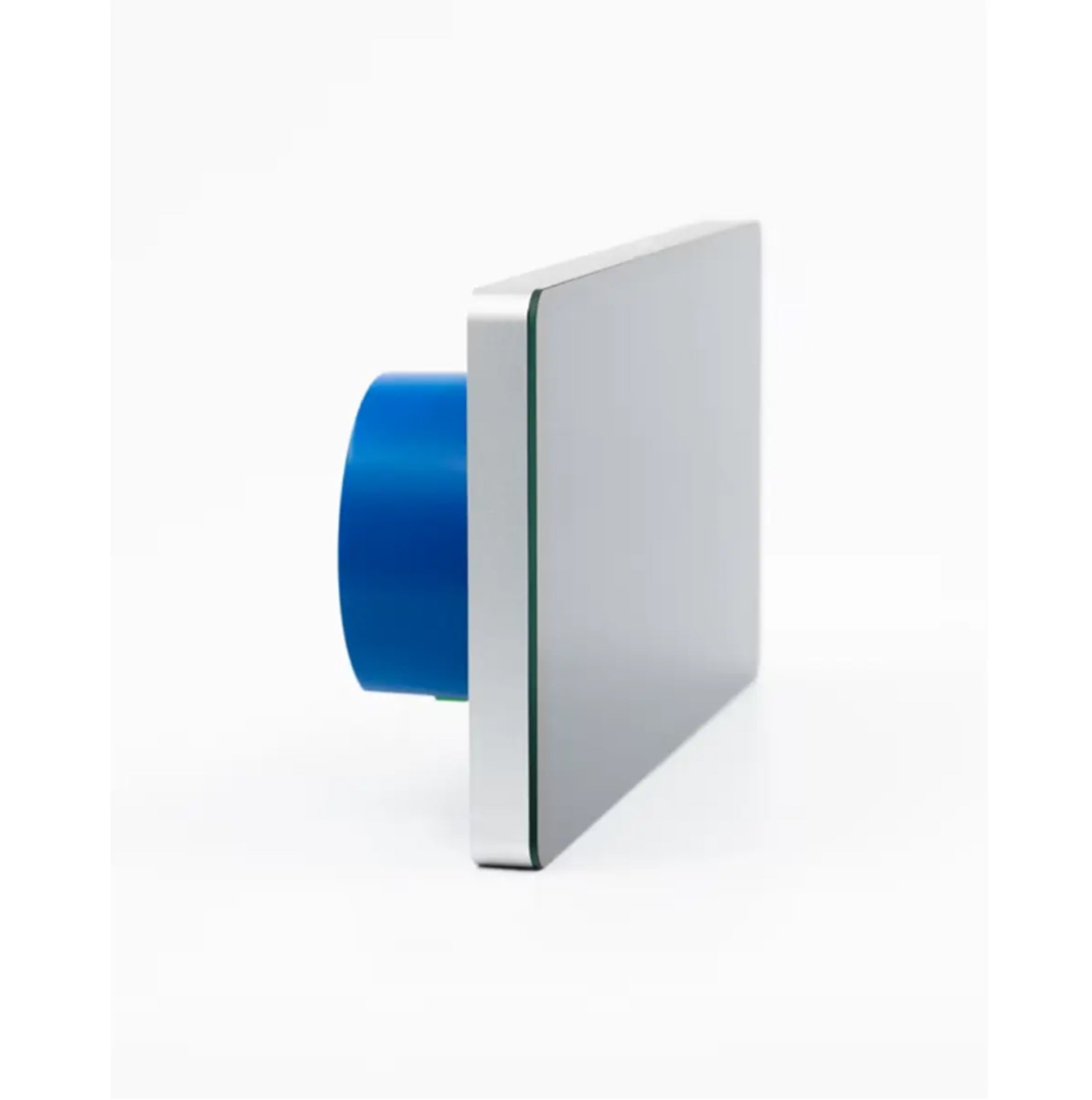

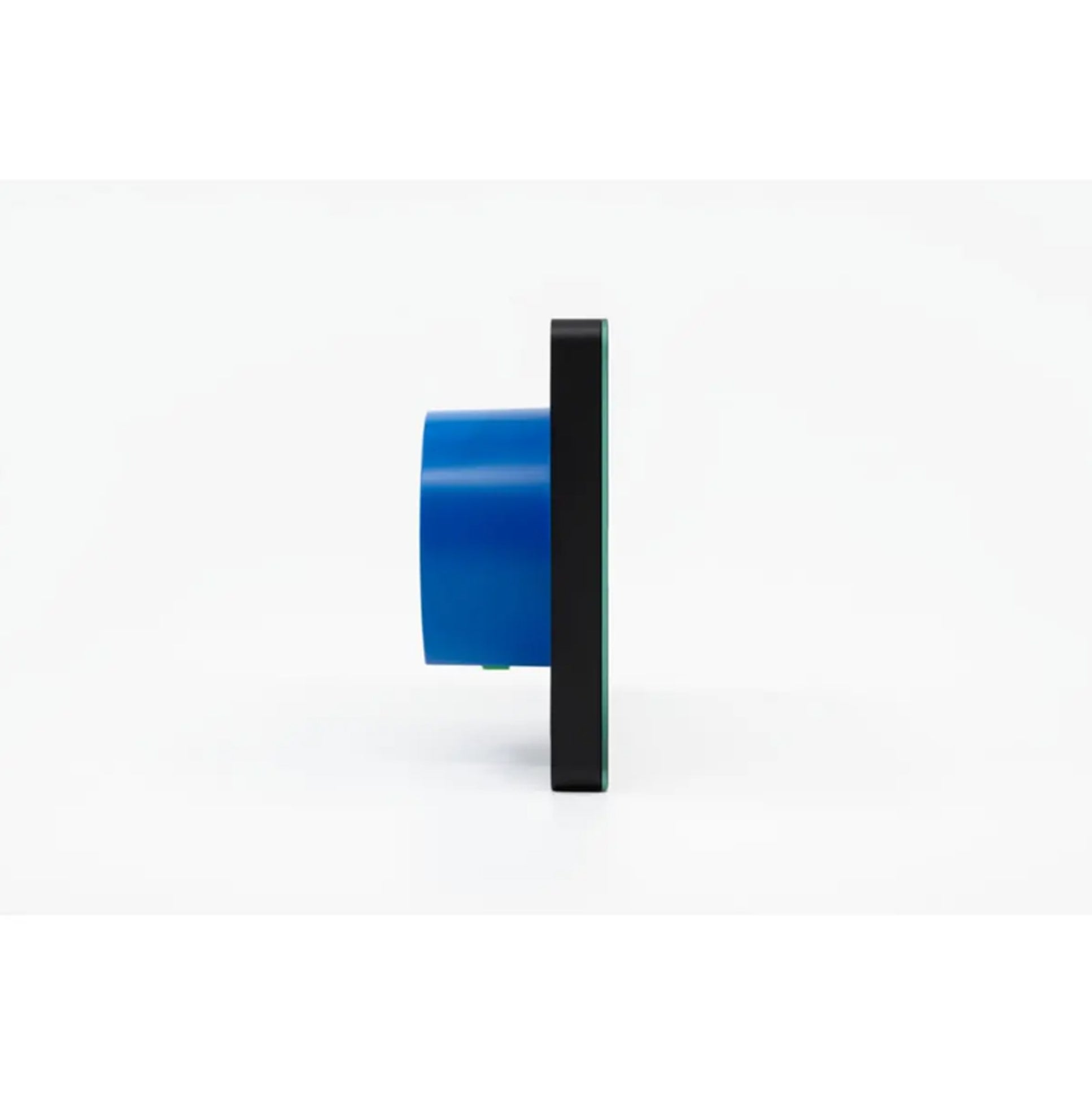

Construction and mounting Mounting: Wall box
Dimensions (H×W×D):
    · With base: 87 × 178 × 36 mm
    · Without base: 87 × 178 × 11 mm
Weight:
    · With base: 292 g
    · Without base: 246 g
Max. screw terminal torque: 0.4 Nm
Conductor cross-section: 0.75 to 2.5 mm² (18 to 14 AWG)
Conductor stripping: 6 to 7 mm
Materials: Plastic, aluminium and glass
Colour: Black



Available options

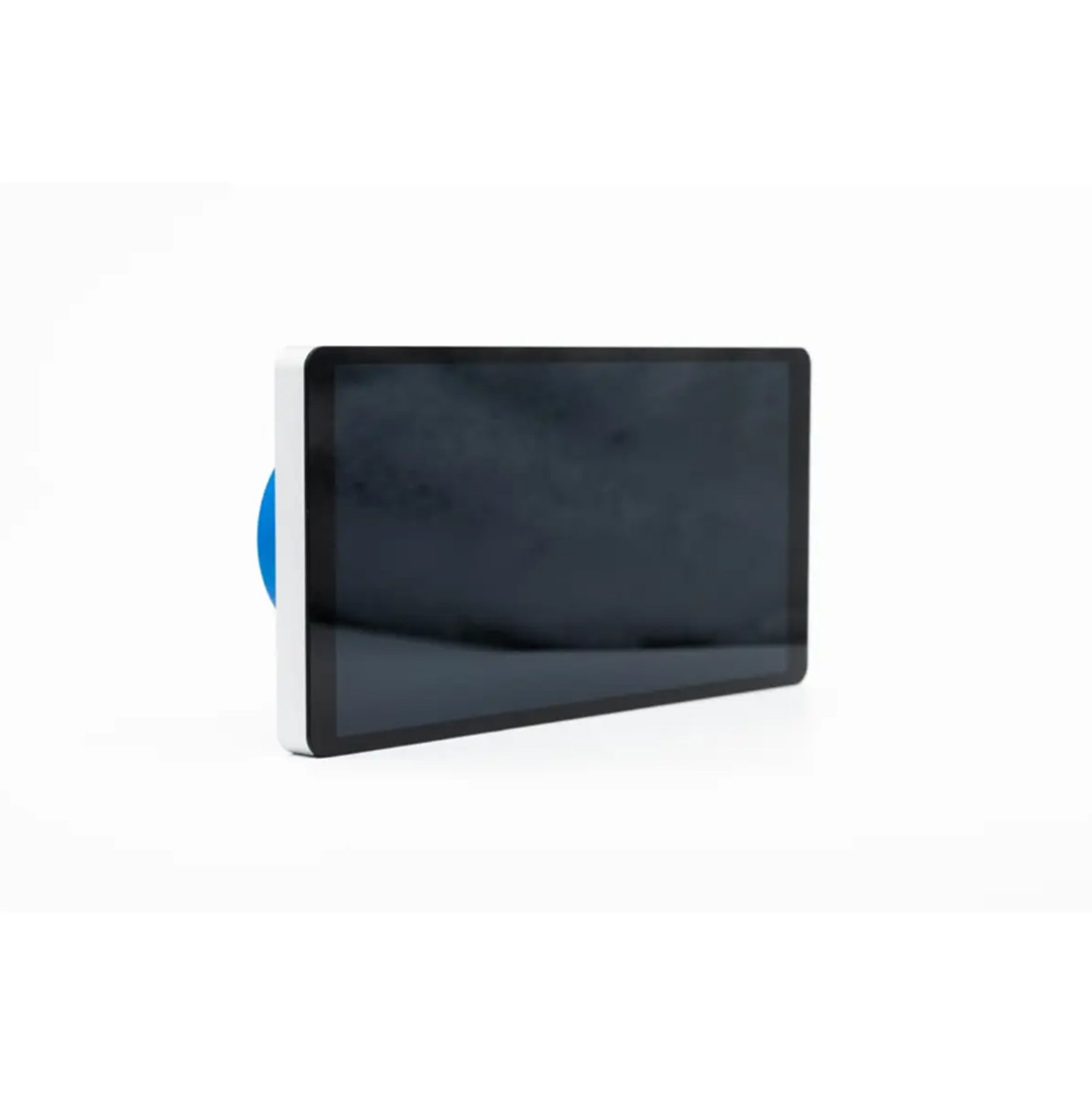

  • COLOUR: BLACK; SILVER.
