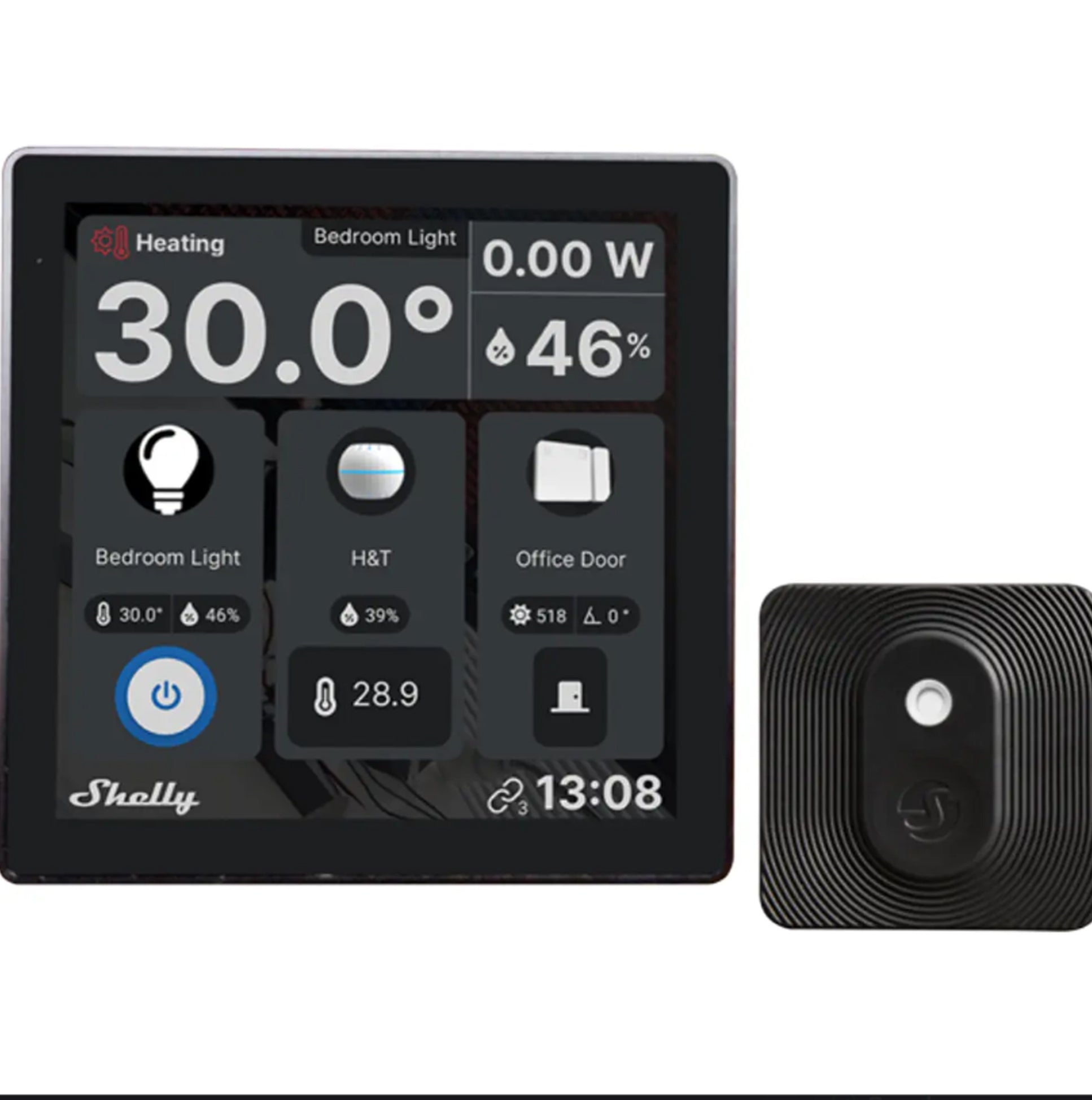

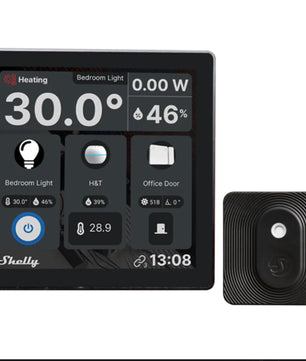

Centralised Wall Control with Touchscreen + Temperature and Humidity Sensor
Dispatch: Within 2 business days.
Once your order has been processed, you will receive a tracking number by email.
Description
Centralised Wall Control with Touchscreen + Temperature and Humidity Sensor. See below for the features and conditions of application of this product.
Product information and features
Description

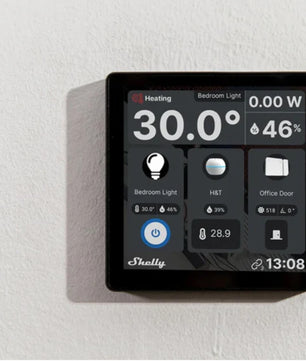

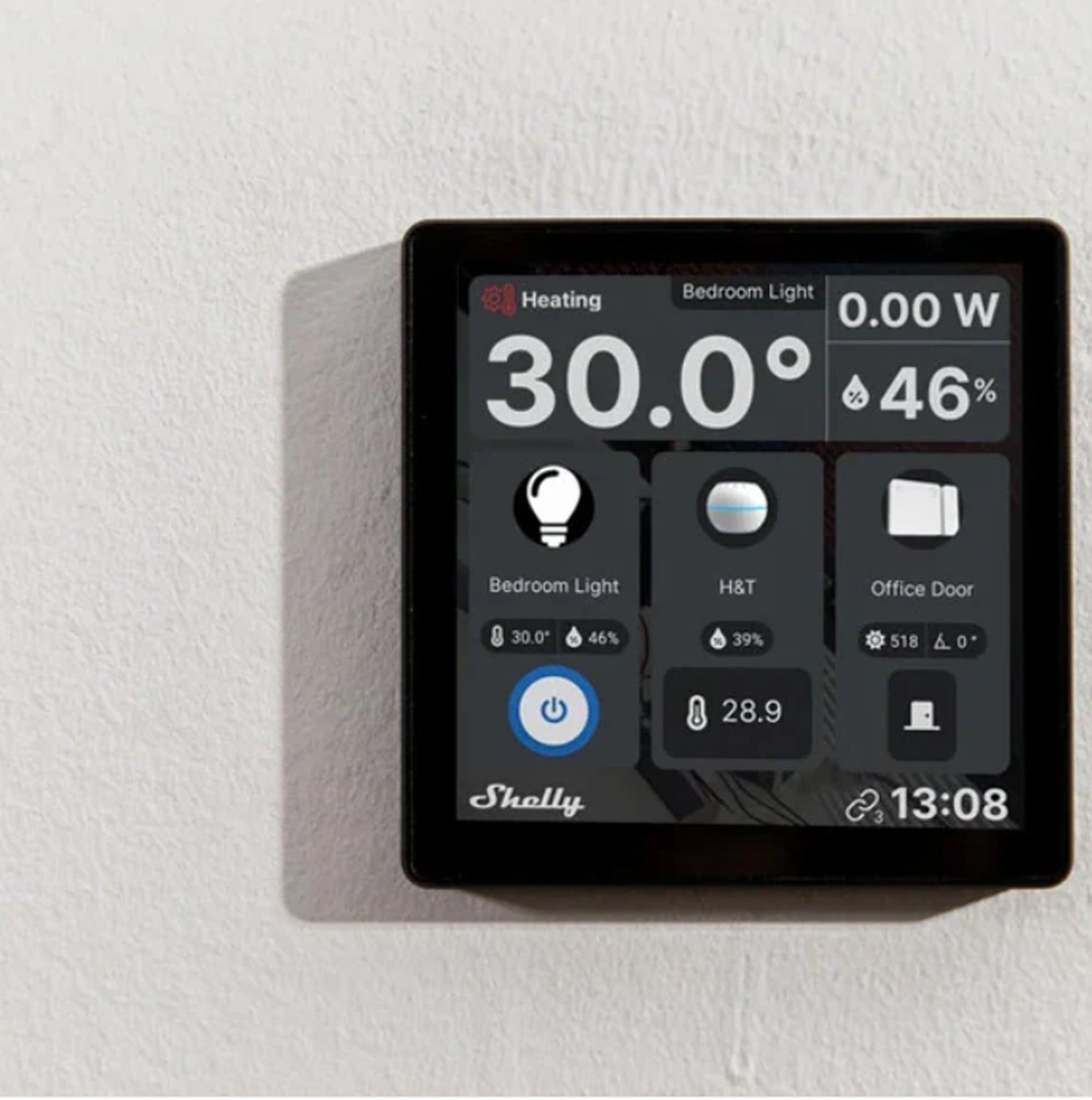

The 4-inch wall screen offers centralised control of devices, groups, and favourite scenes, with a touch interface, without a HUB, thanks to the integrated Bluetooth gateway. It includes environmental monitoring with temperature, humidity, and light sensors, and lighting control via a 5 A relay. The smart thermostat adjusts heating and cooling based on environmental data. It allows monitoring of energy consumption by room, features a customisable home screen, Night mode, and remote cloud integration, with simple installation replacing the switch and neutral.
Specifications
| Electrical |
Power supply: 230 VAC, 50/60Hz Power consumption: < 1 W |
| Output Circuit Rating | Maximum switching voltage: 230 VAC Maximum switching current: 5 A |
| Radio - Wi-Fi | Protocol: 802.11 b/g/n Frequency band: 2401 - 2495 MHz Maximum RF power: < 20 dBm Range: Up to 30m indoors and 50m outdoors (depends on local conditions) |
| Radio - Bluetooth | Protocol: 4.2 Frequency band: 2400 - 2483.5 MHz Maximum RF power: < 4 dBm Range: Up to 10m indoors and 30m outdoors (depends on local conditions) |

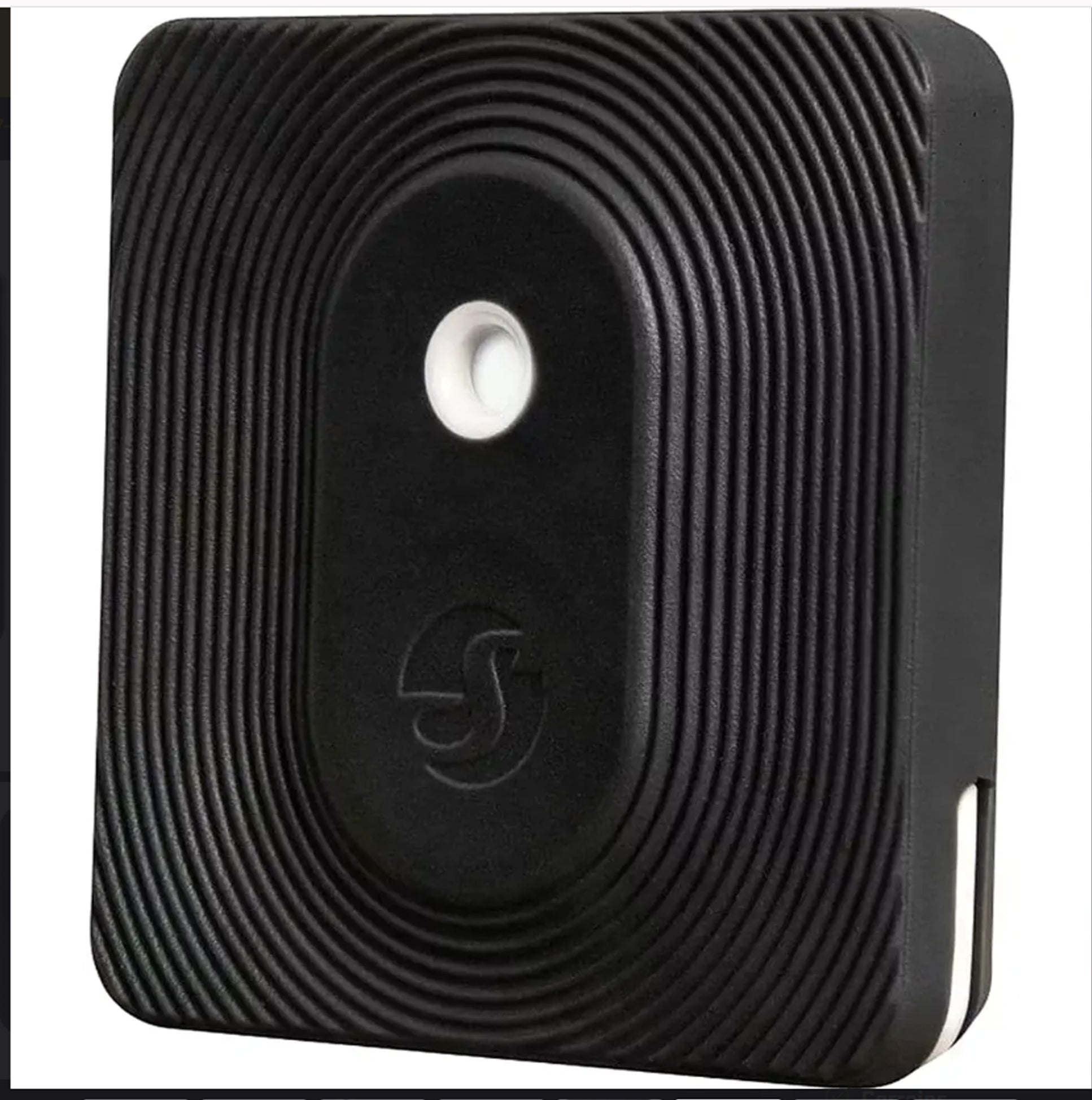

| Sensors and Meters | Ambient temperature sensor: Yes Humidity sensor: Yes Light sensor: Yes |
| Microcontroller Unit | CPU: MTK6580 RAM: 1 GB Flash memory: 8 GB |
| Firmware capabilities | Schedules: 20 Webhooks (actions by URL): 20 (with 2 URLs per webhook) Scripting: No |
| Environmental | Operating temperature: -20 °C to 40 °C / -5 °F to 105 °F Humidity: 30% to 70% RH Maximum altitude: 2000 m |

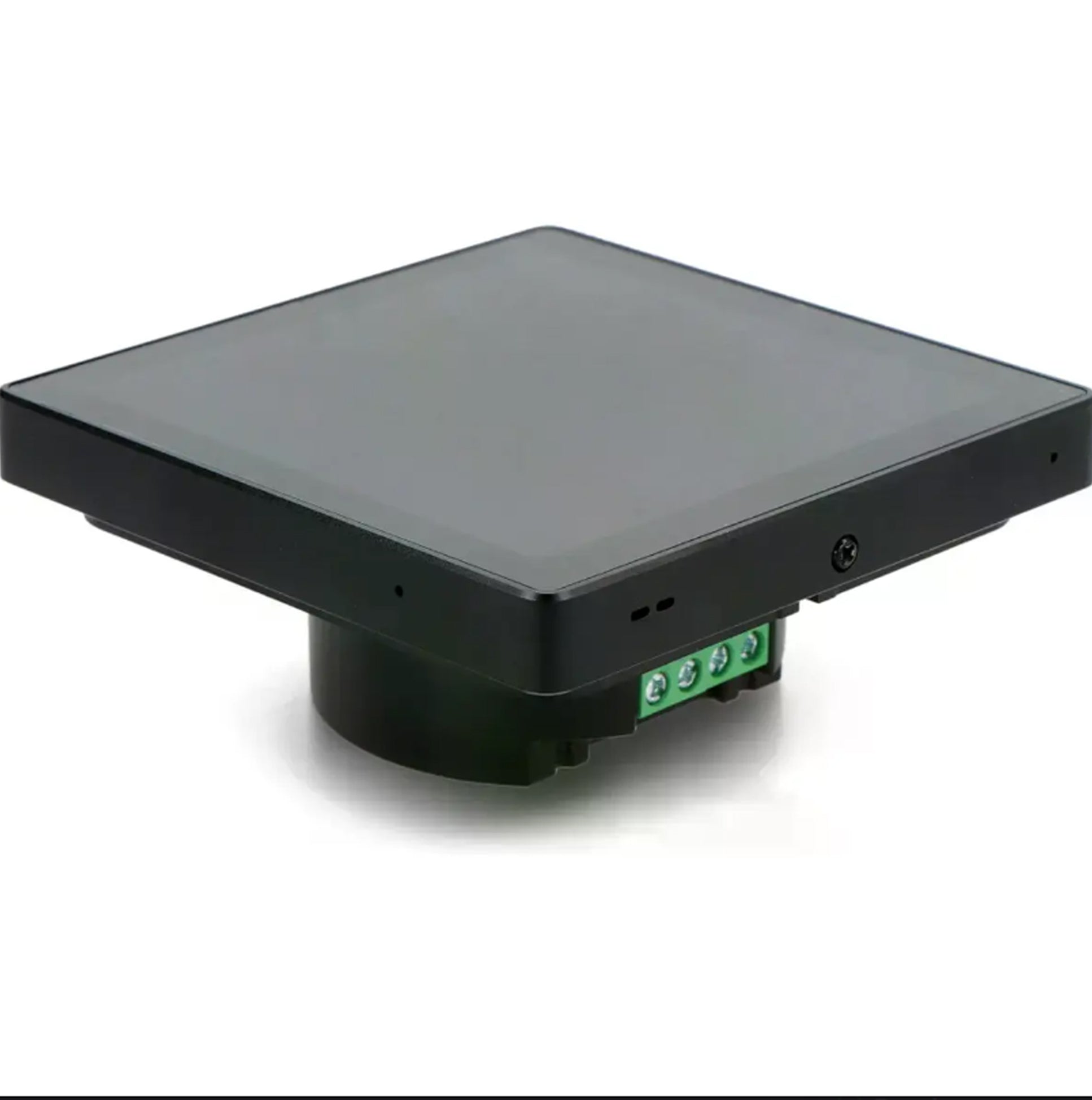

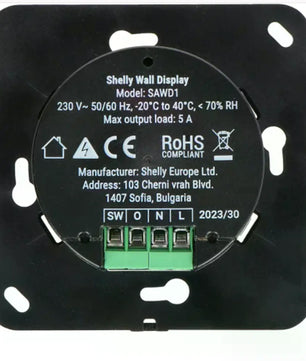

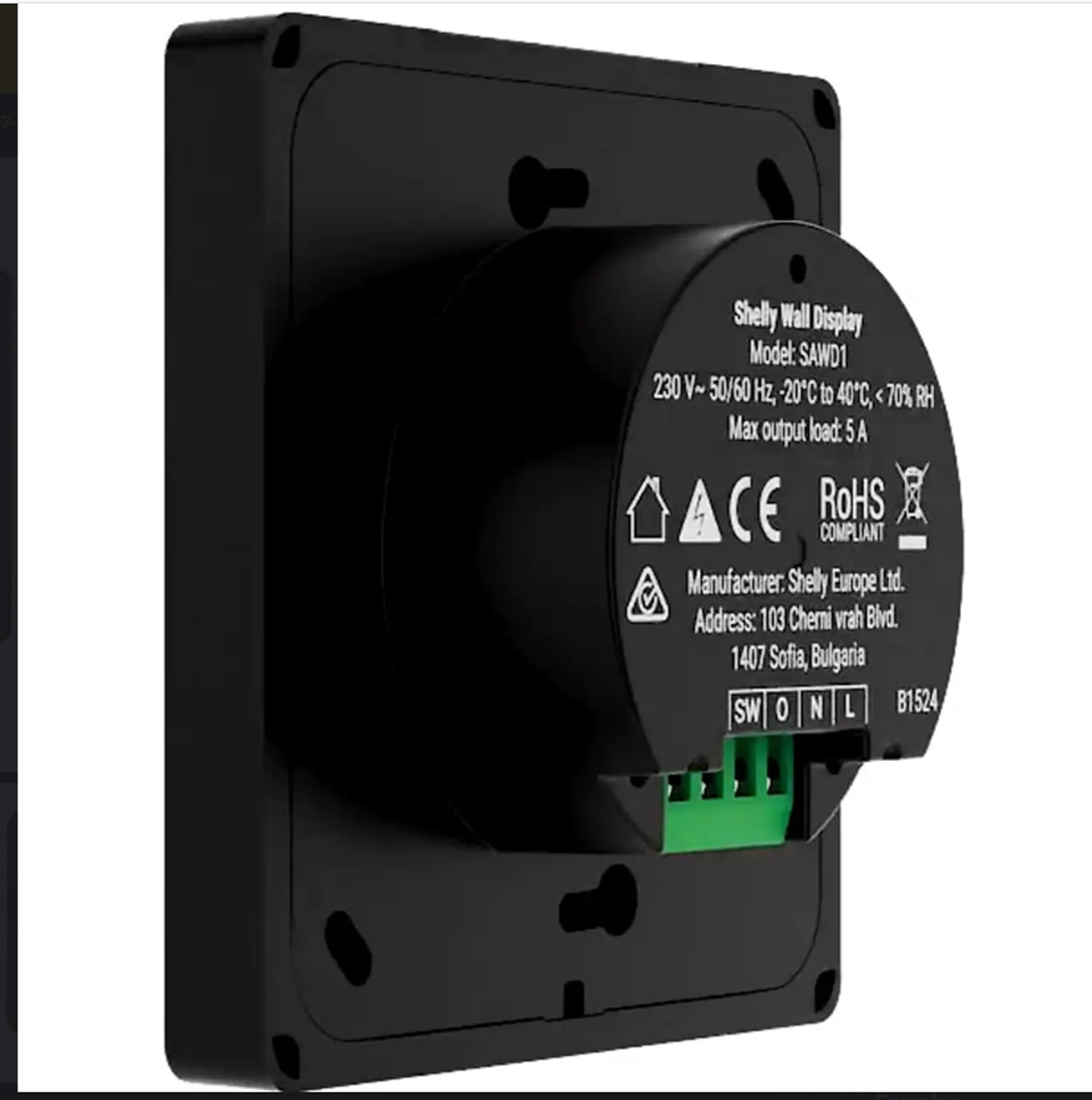

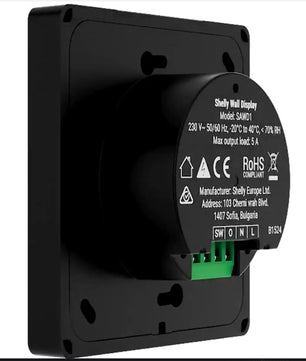

| Construction and mounting | Mounting: Electrical junction box (wall-mounted) Housing material: Plastic, aluminum, glass Conductor cross-section: 0.5 to 2.5 mm² / 20 to 14 AWG Weight: 180 g Size (HxWxD): 85x85x30 mm / 3.35x3.35x1.18 inches Housing color: Black |
