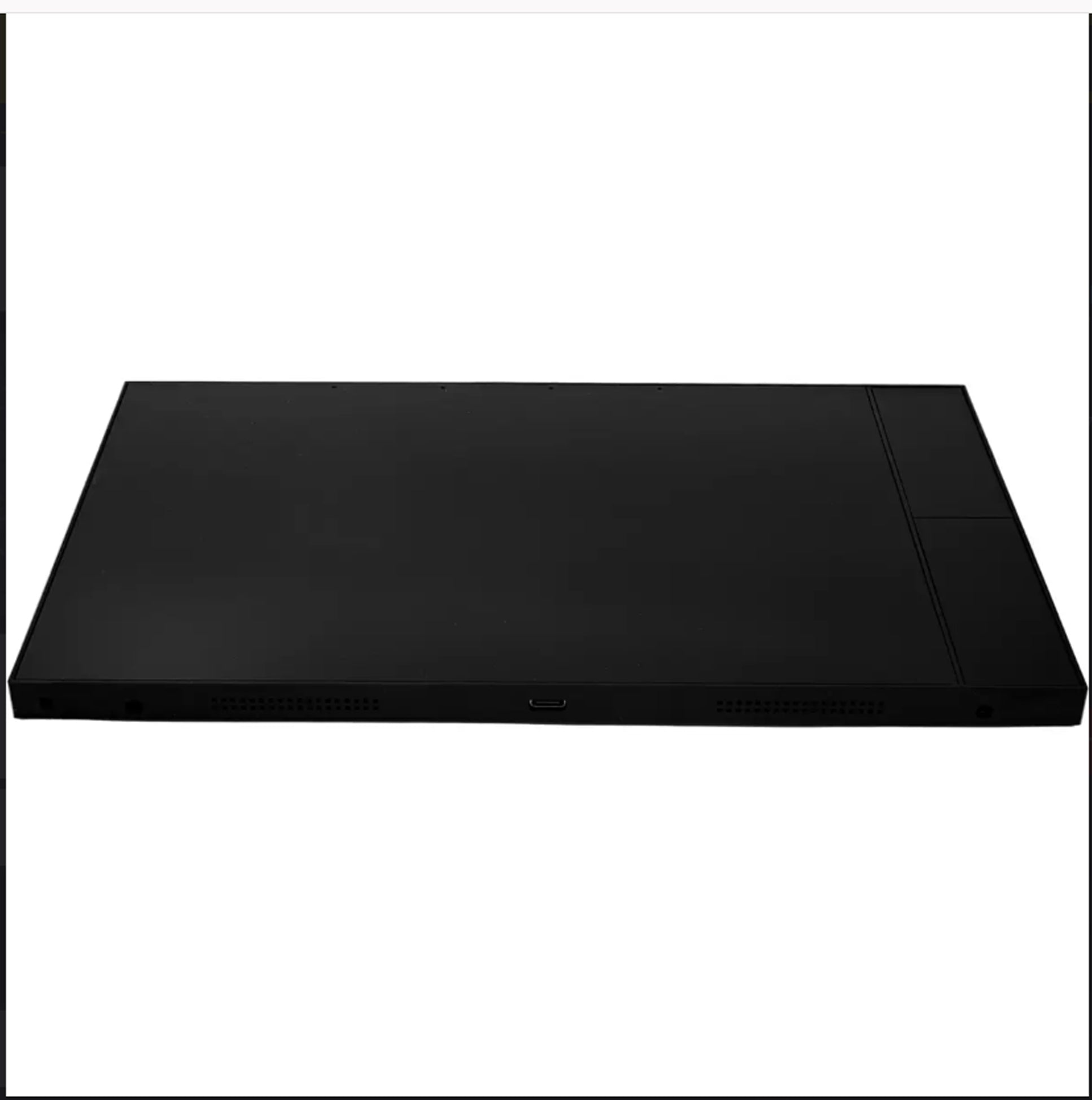

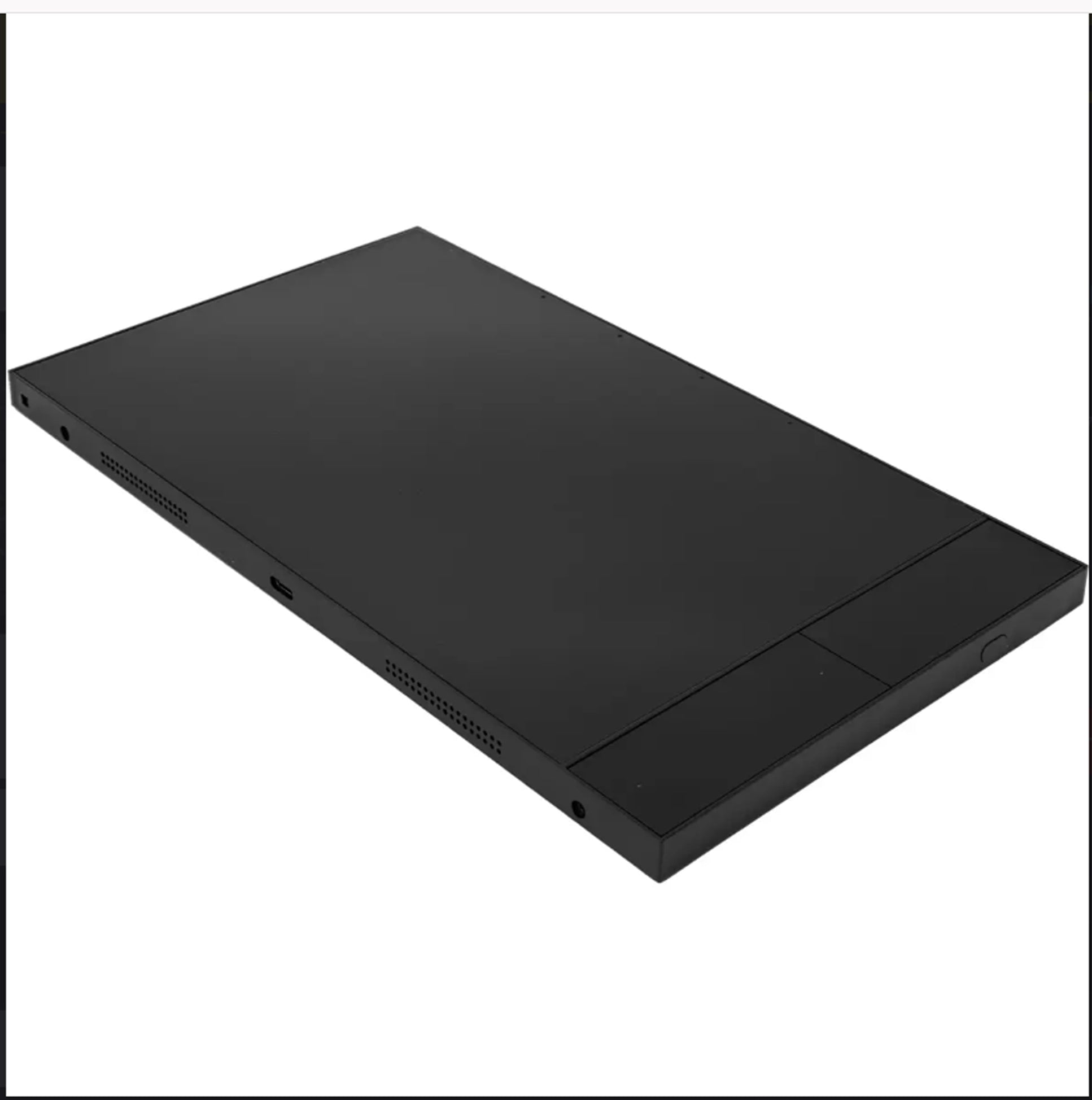

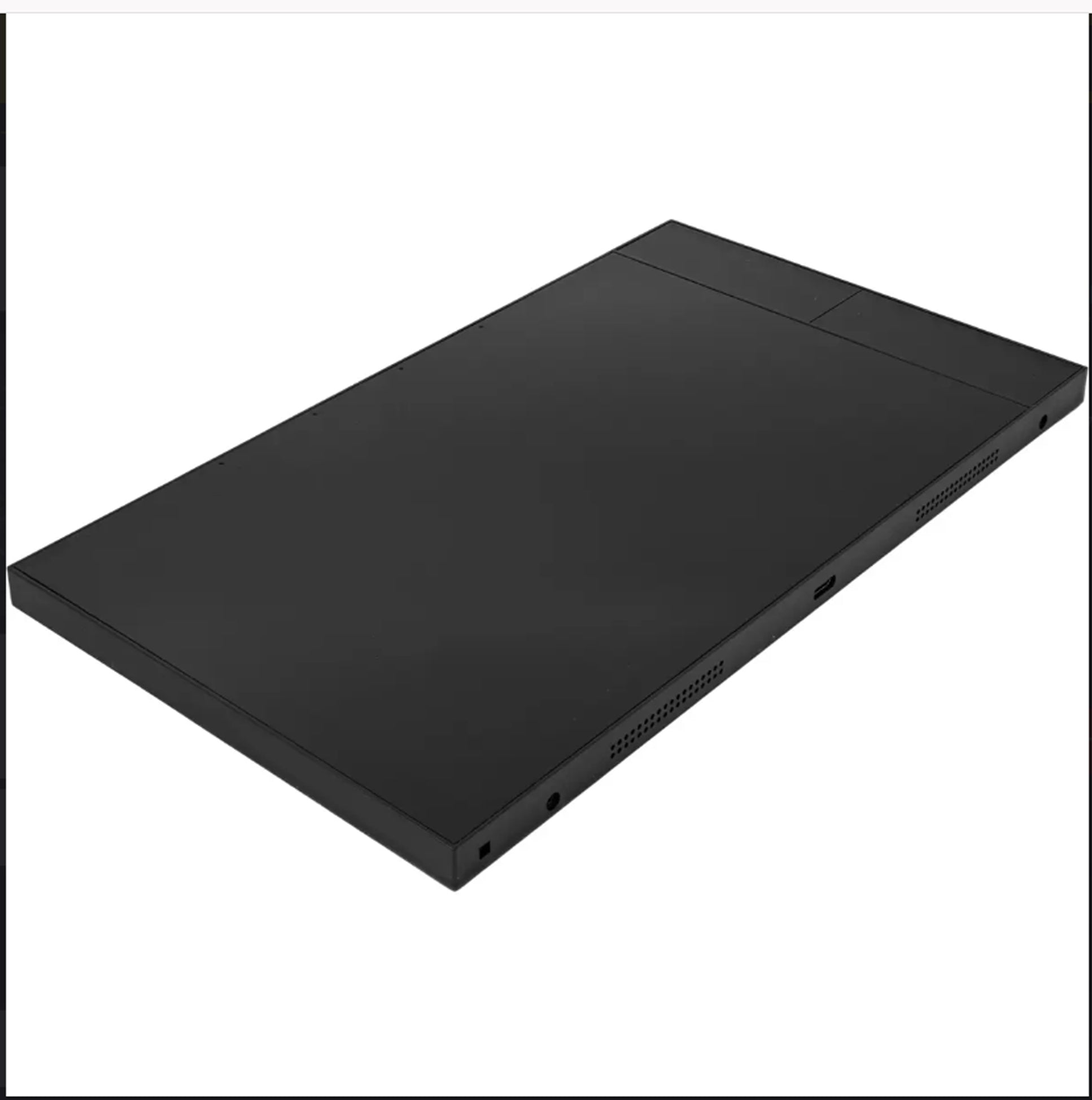

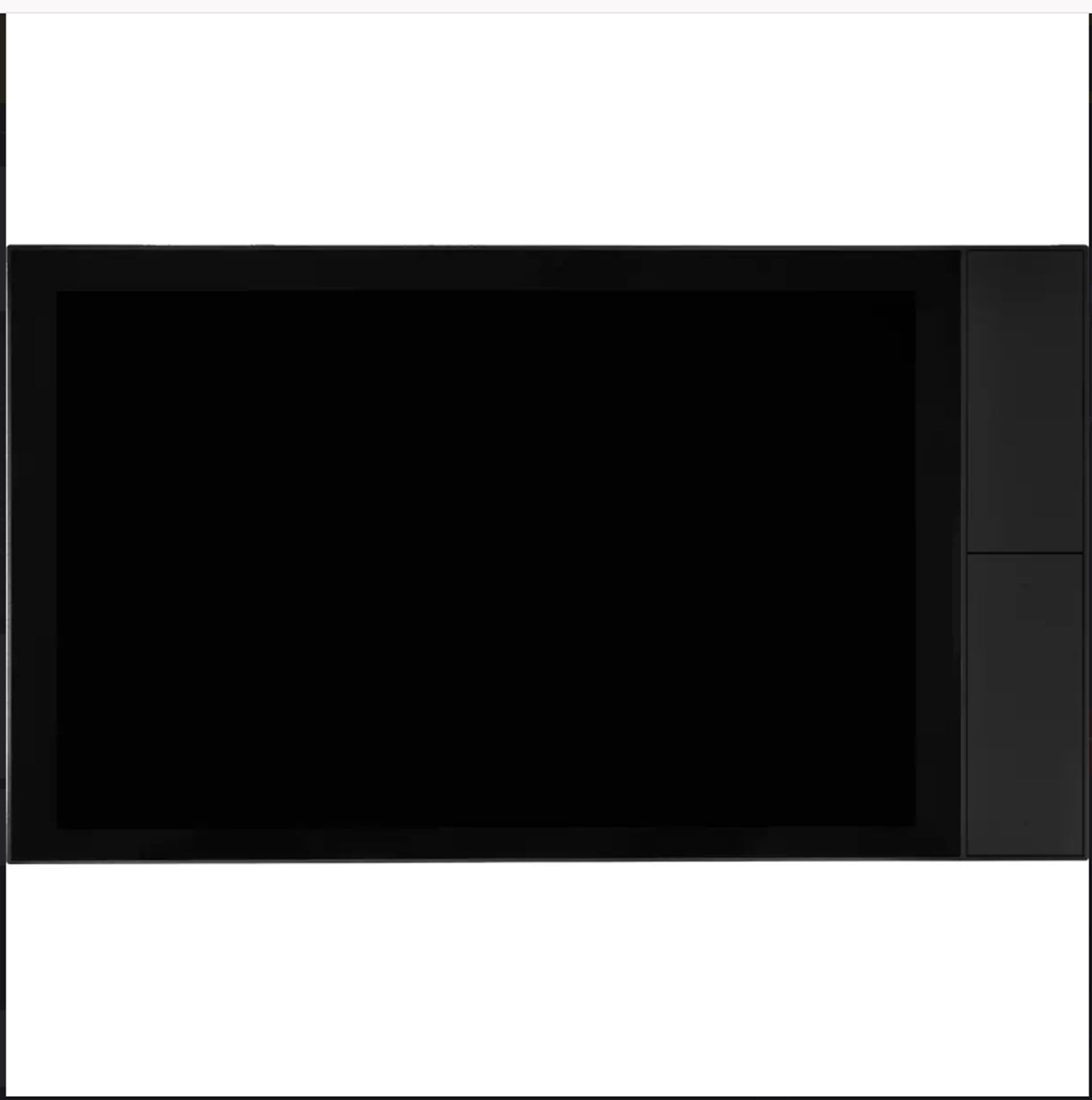

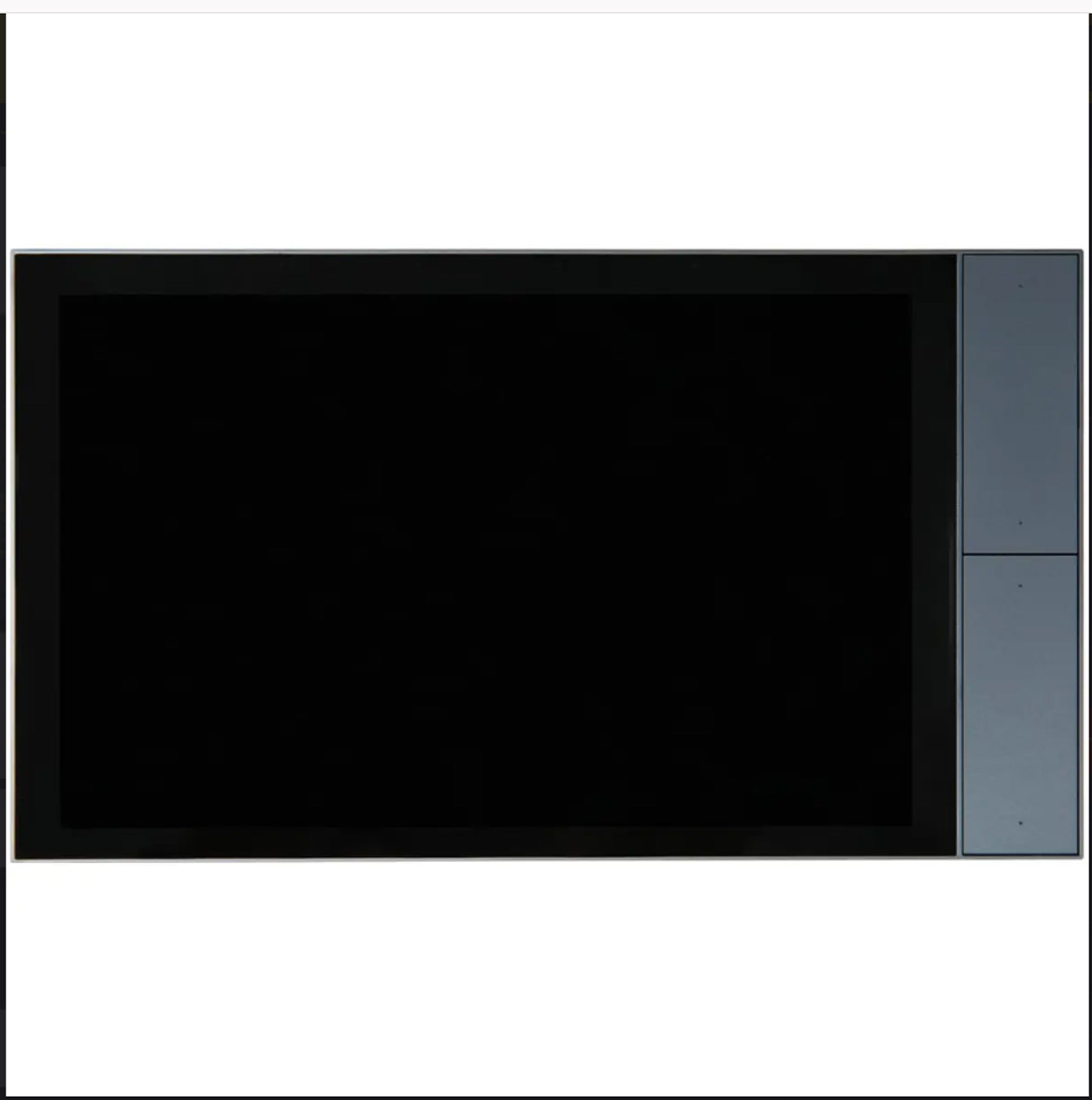

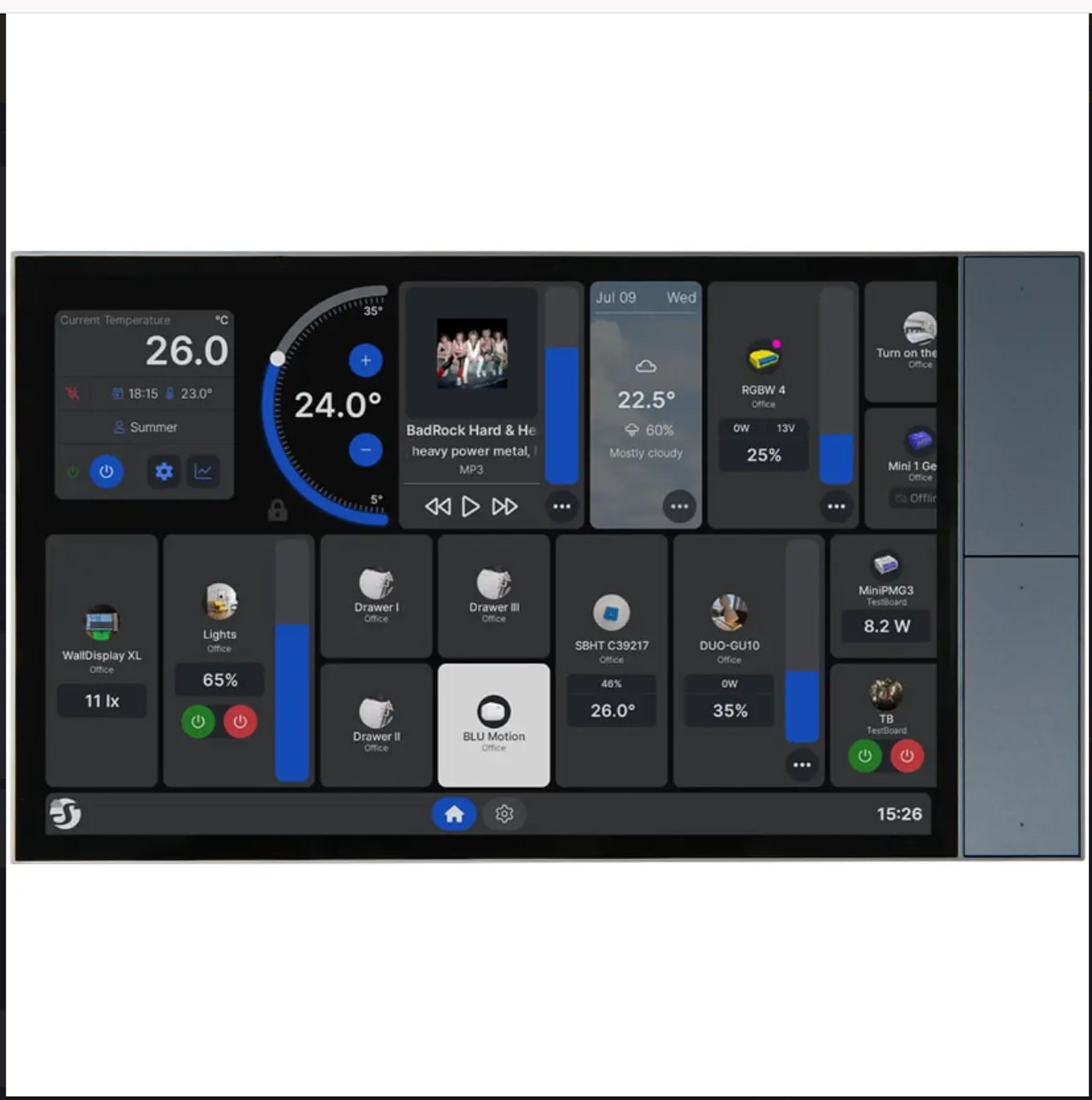

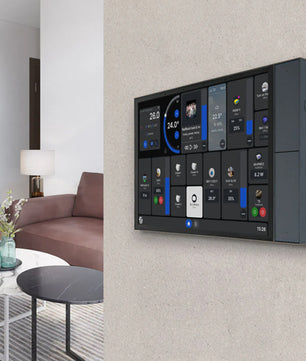

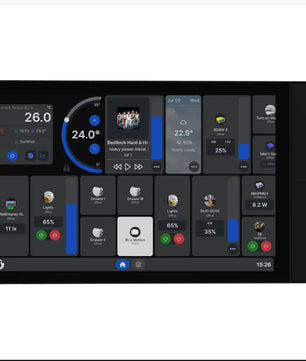

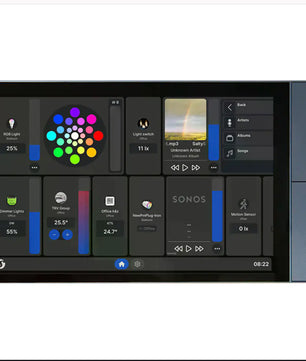

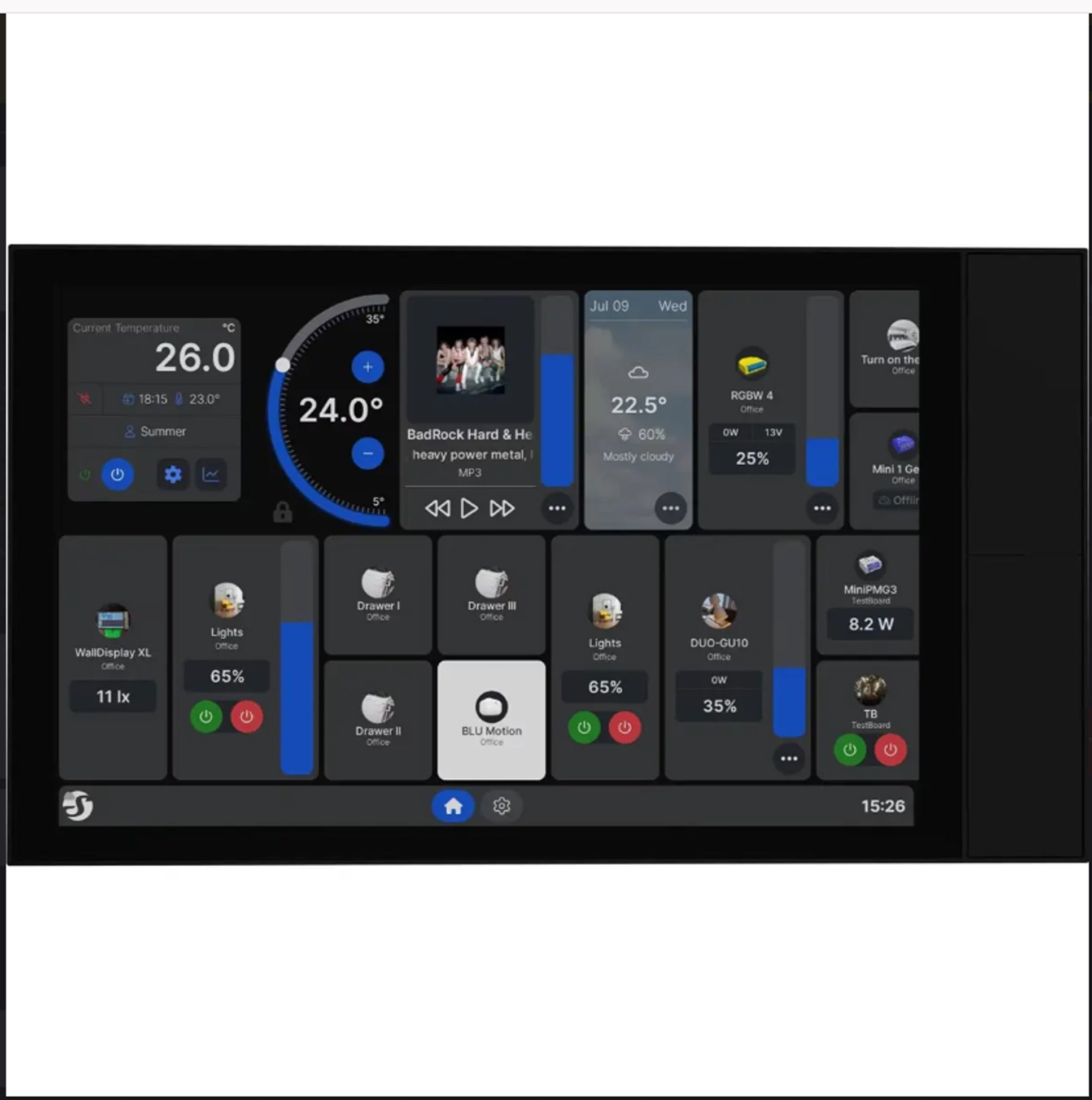

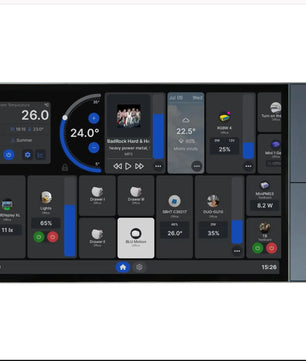

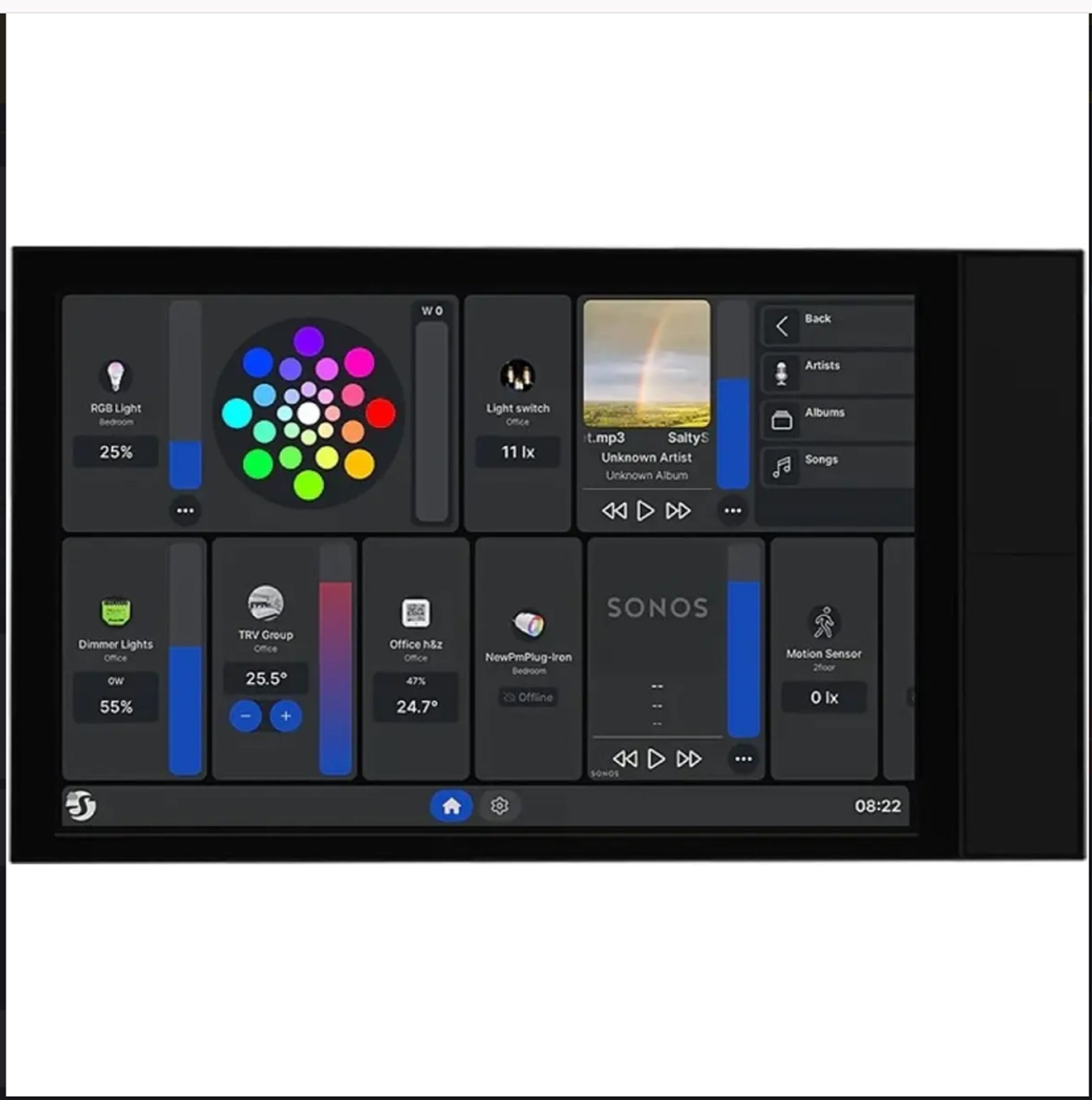

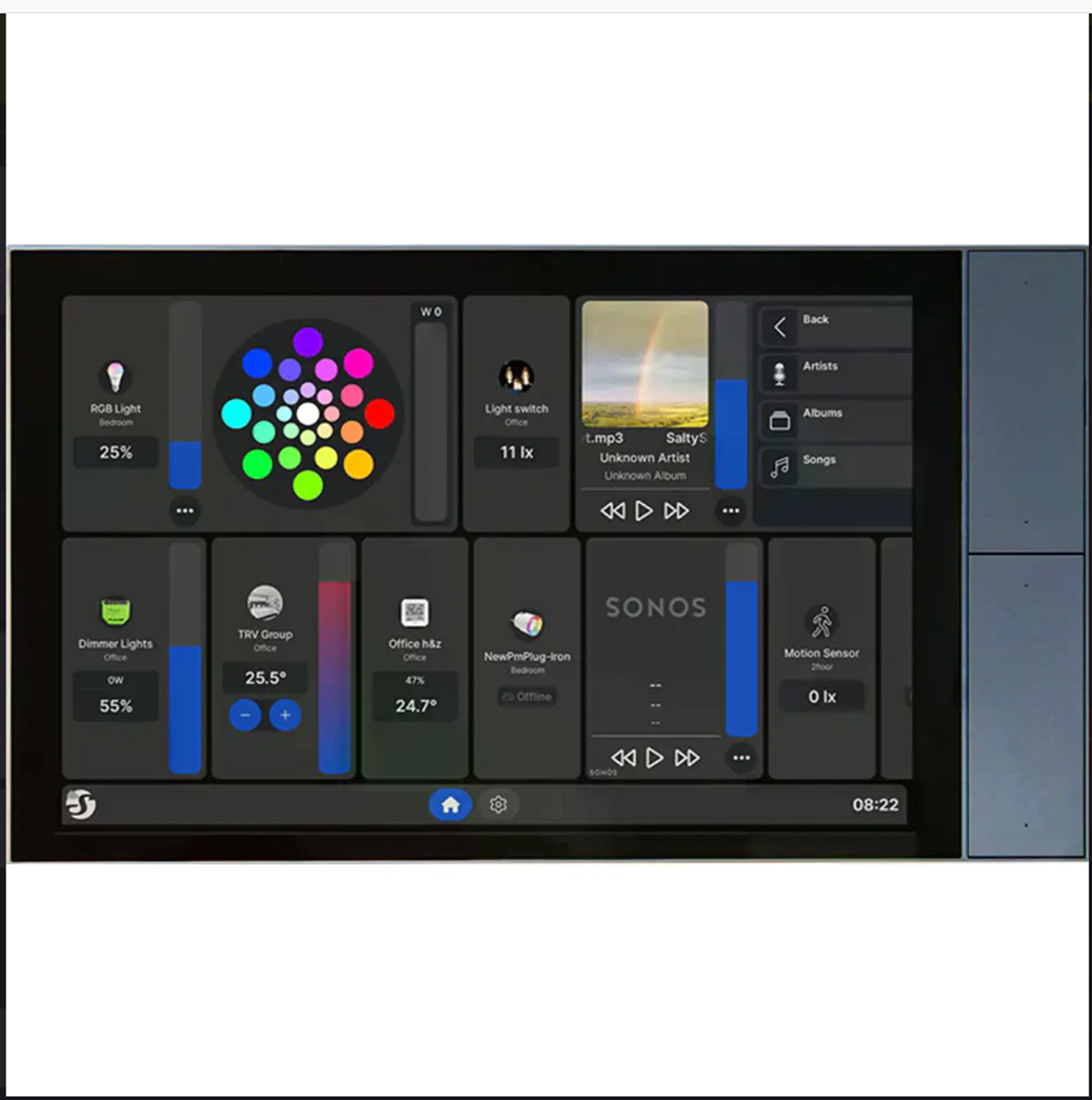

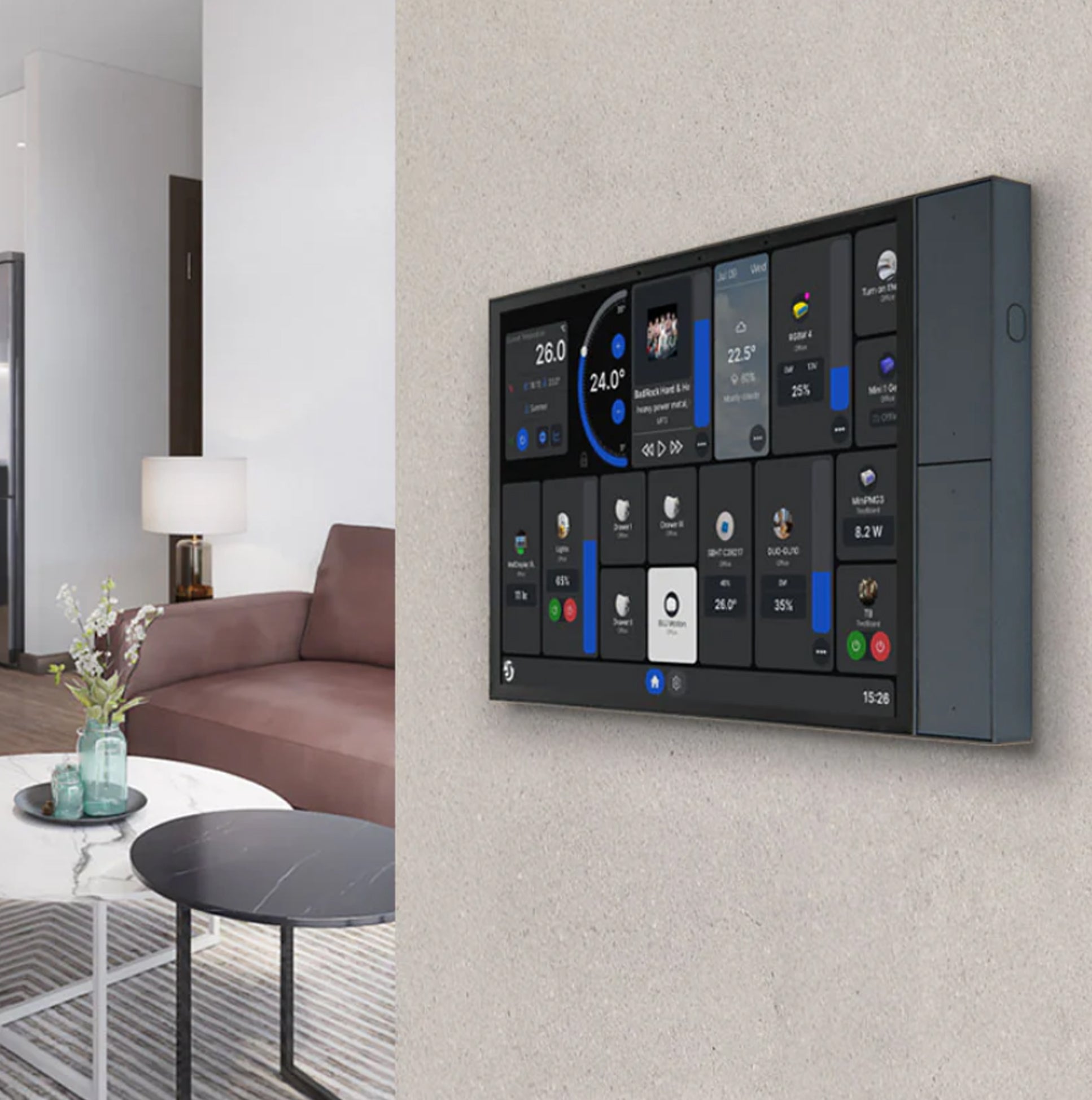

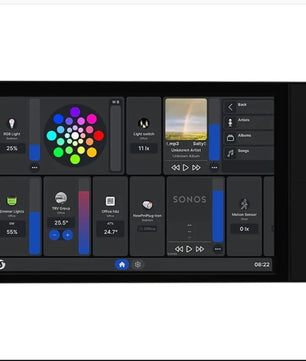

Centralised Wall Control with Touchscreen
Dispatch: Within 2 business days.
Once your order has been processed, you will receive a tracking number by email.
Description
Centralised Wall-Mounted Control with Touchscreen. See below for the features and application requirements of this product.
Product information and features
Description
The Shelly 2PM Gen4 is a two-channel smart switch with energy monitoring and control of electric blinds (or other devices with a bidirectional AC motor).
It allows remote control of electrical equipment via mobile phone, tablet, PC or home automation systems, operating autonomously on a local Wi-Fi network or integrated into cloud-based automation services.
Its compact design allows installation in standard wall electrical boxes, behind sockets or switches, even in confined spaces.
Specifications
| Screen and Interface |
Type: 5-point capacitive touch (G+FF) Resolution: 1280 × 752 px Physical buttons: 4 customisable + 1 screen On/Off power button Volume and assignable relay control Sensors: proximity (≤1 m) and ambient light (lux) Microphone: integrated 4-microphone array Speakers: 2 × 2 W (BOX-type acoustic cavity) |
| Processing and System | CPU: Rockchip RK3566, Quad-Core Cortex-A55 RAM: 2 GB Storage: 32 GB Operating system: Android 11 |
| Communications | Wi-Fi: Dual-Band Wi-Fi 6 (2.4 GHz and 5 GHz) · RF power: < 20 dBm · Range: up to 30 m indoors / 50 m outdoors Bluetooth: 5.4 · Band: 2402 – 2480 MHz · RF power: < 4 dBm · Range: up to 10 m indoors / 30 m outdoors MQTT and Webhooks support, and Home Assistant integration |
| Software Features | Support for up to 20 schedules Up to 20 webhooks (5 URLs per action) Energy monitoring via Shelly Smart Control Full remote control via the mobile app No script support |

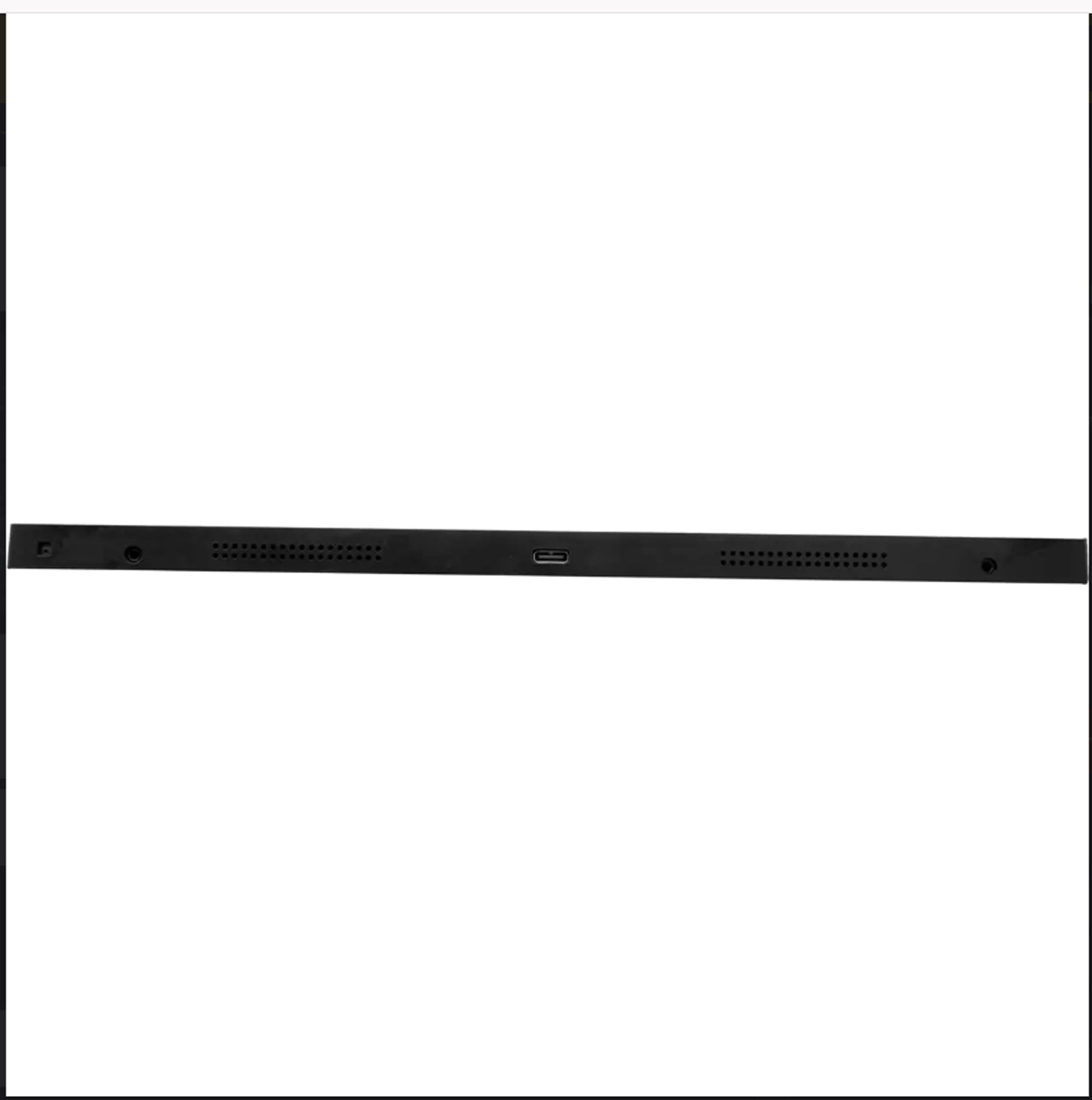

| Inputs and Outputs | Inputs: · 1 switch/button input (screw terminal) · 2 power inputs: N and L Outputs: · 1 relay (max. 240 V~, 5 A) USB Type-C output: 5 V⎓ / 0.5 A |
| Power Supply | Input voltage: 100 – 240 V~ 50/60 Hz Power consumption: < 15 W Alternative power supply: USB-C 5 V⎓ / 3 A Supported load types: resistive, capacitive and inductive Thermal protection against overheating |
| Environmental Conditions | Operating temperature: –20 °C to +40 °C Humidity: 30 % – 70 % RH Maximum altitude: 2000 m |

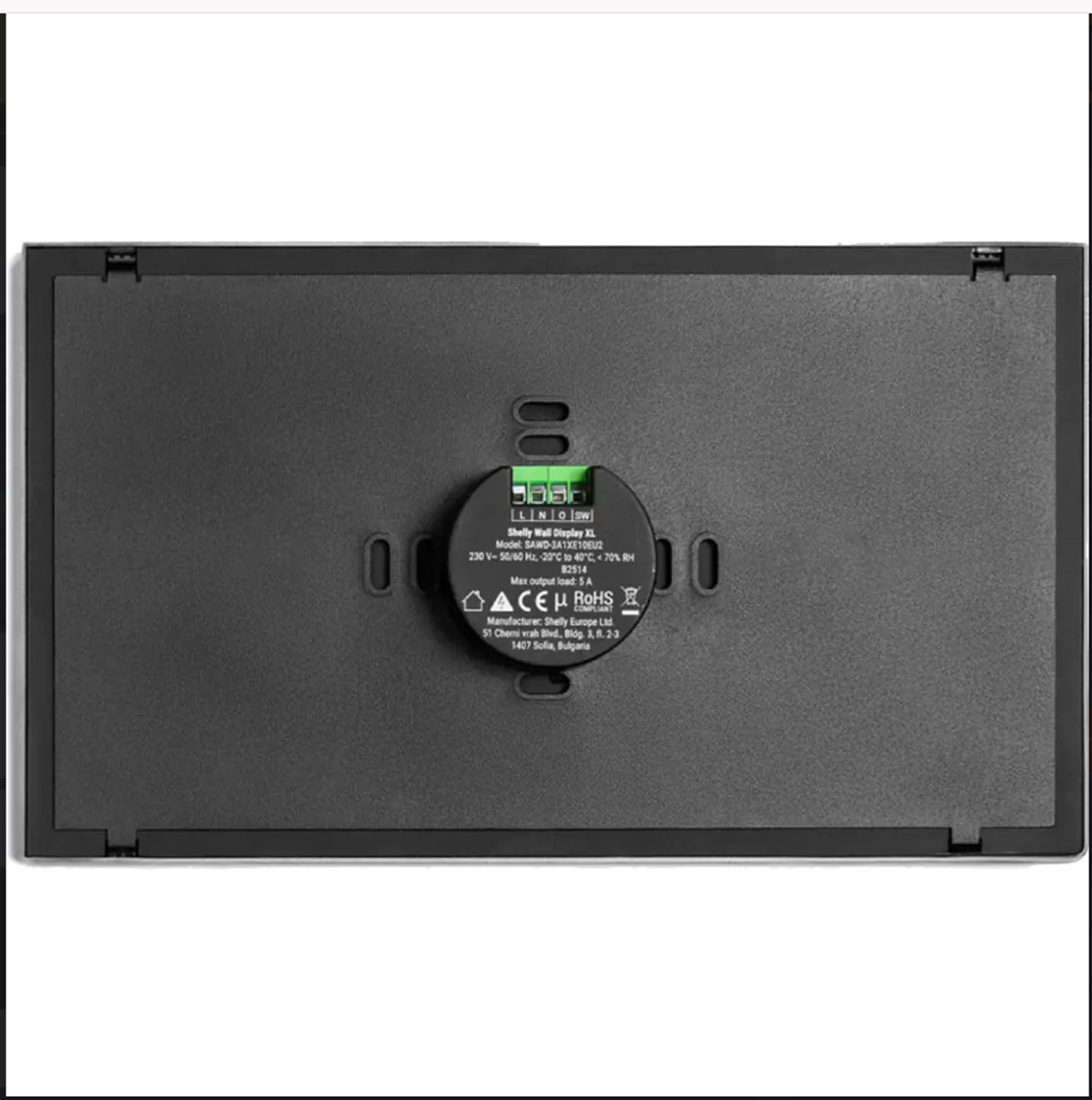

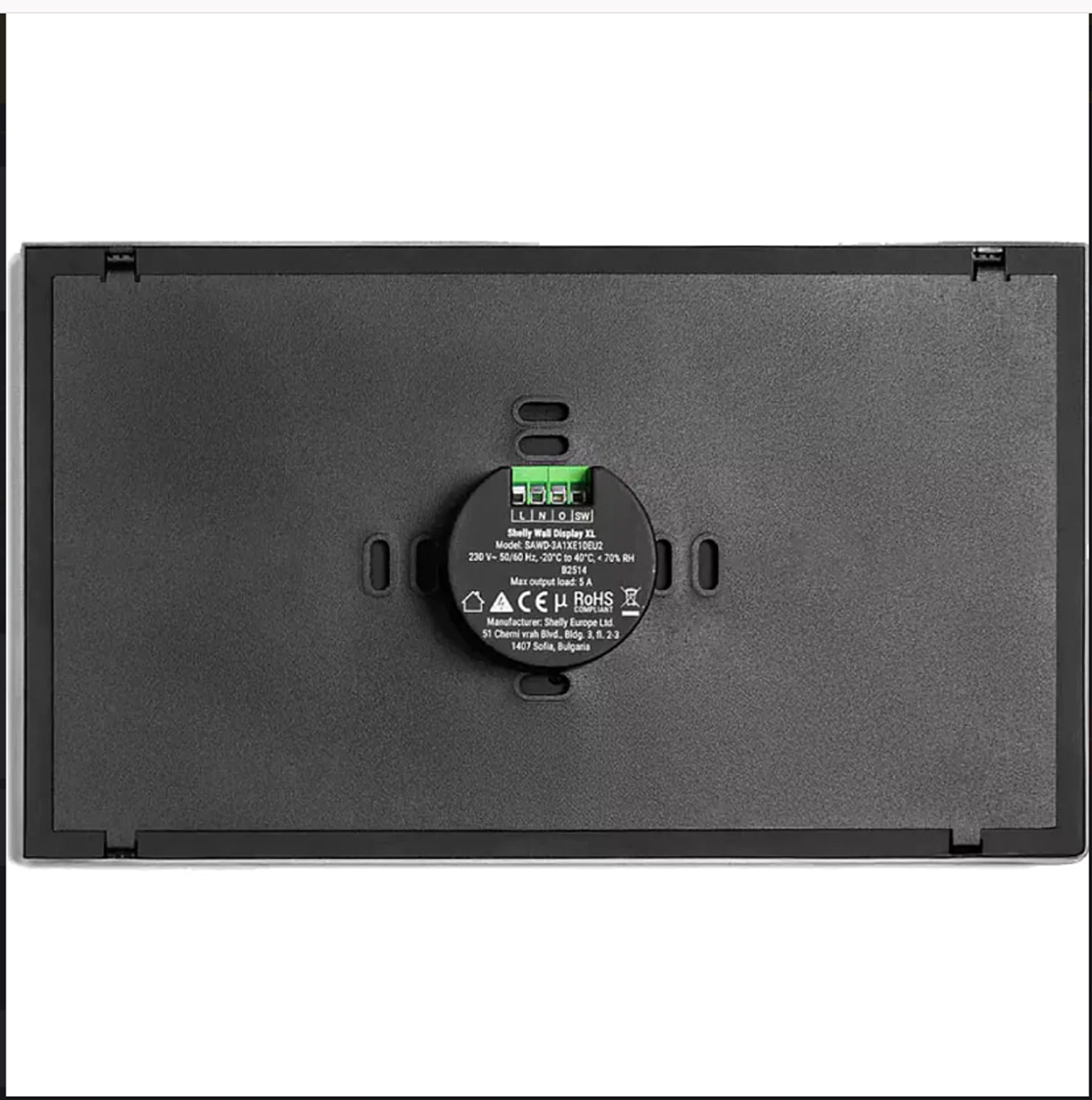

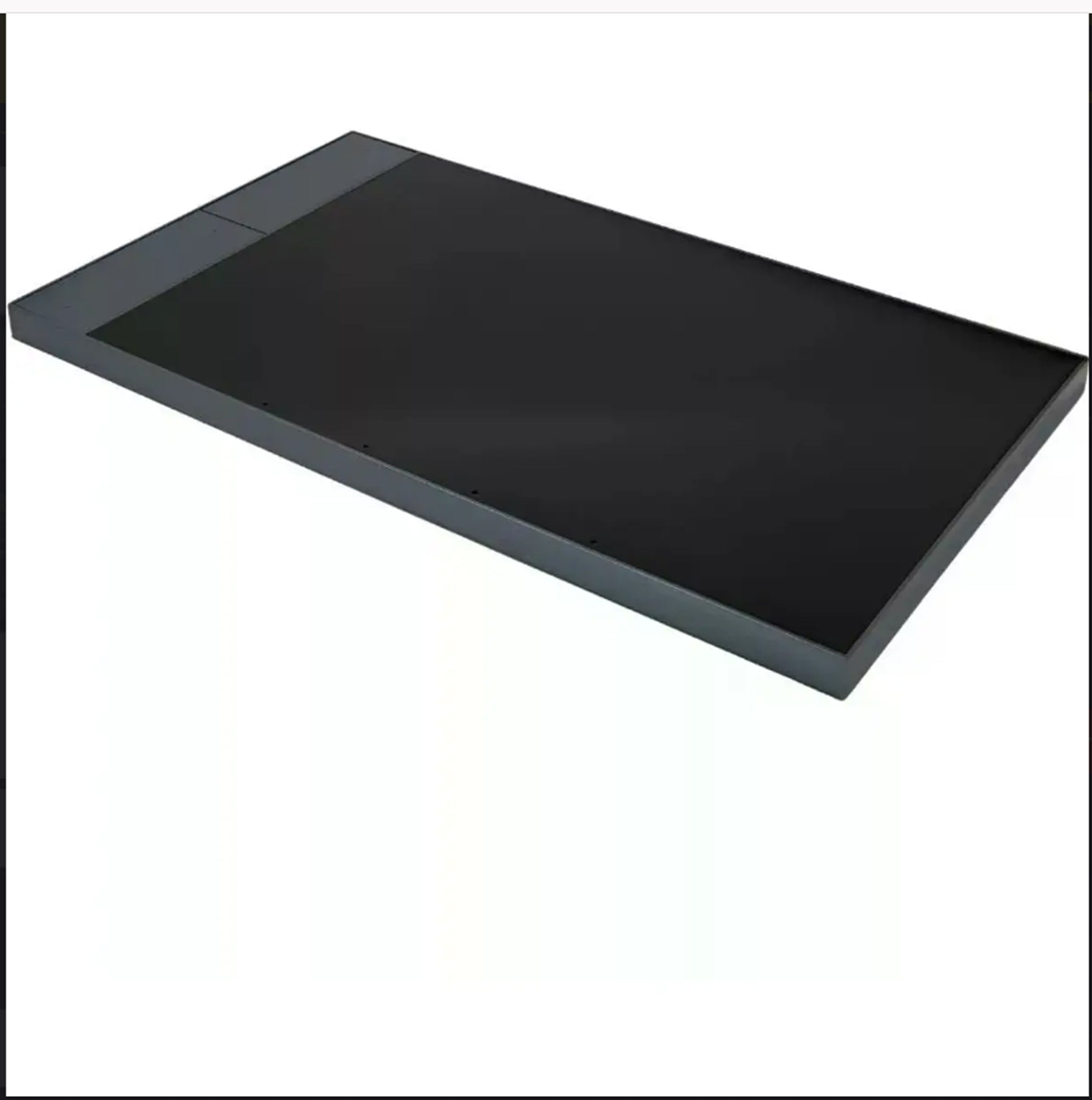

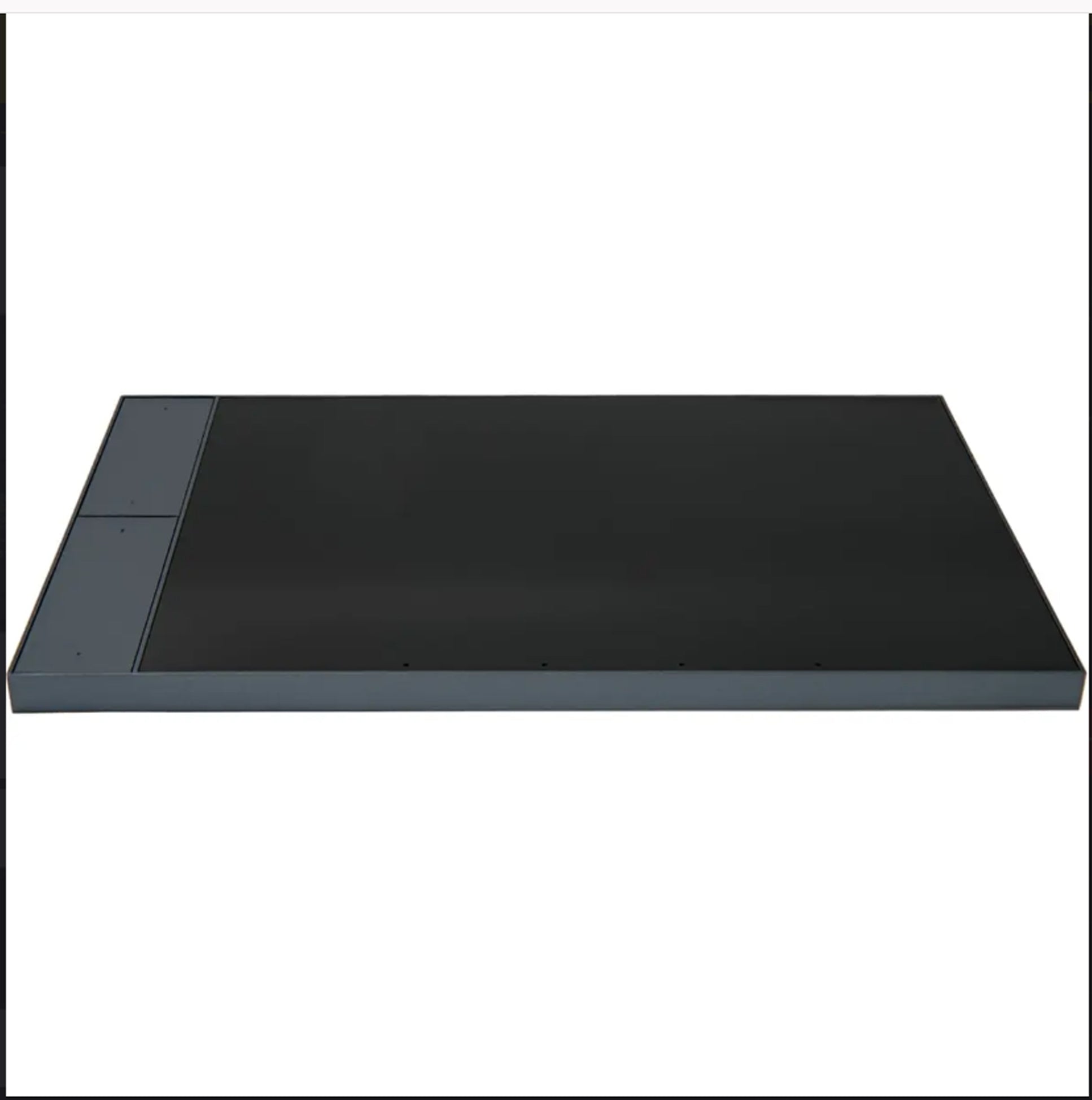

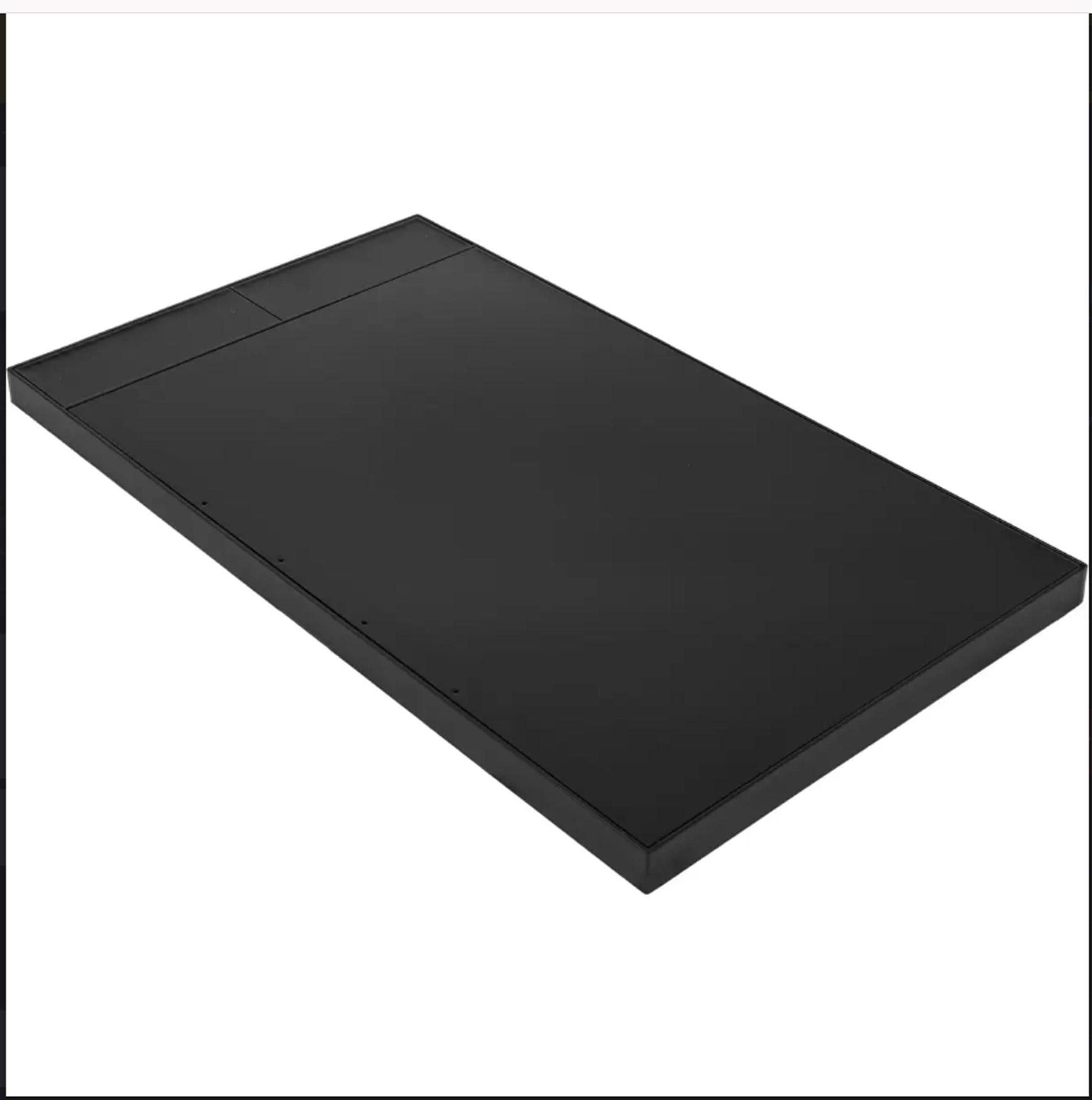

| Construction and installation | Dimensions: 155.8 × 272.5 × 38.3 mm Weight: 920 g Material: stamped metal, coated polycarbonate and glass Installation: recessed in a standard EU wall box Colour: black |
Available options
- COLOUR: BLACK; GREY.
Select the desired options before adding the product to the cart.
