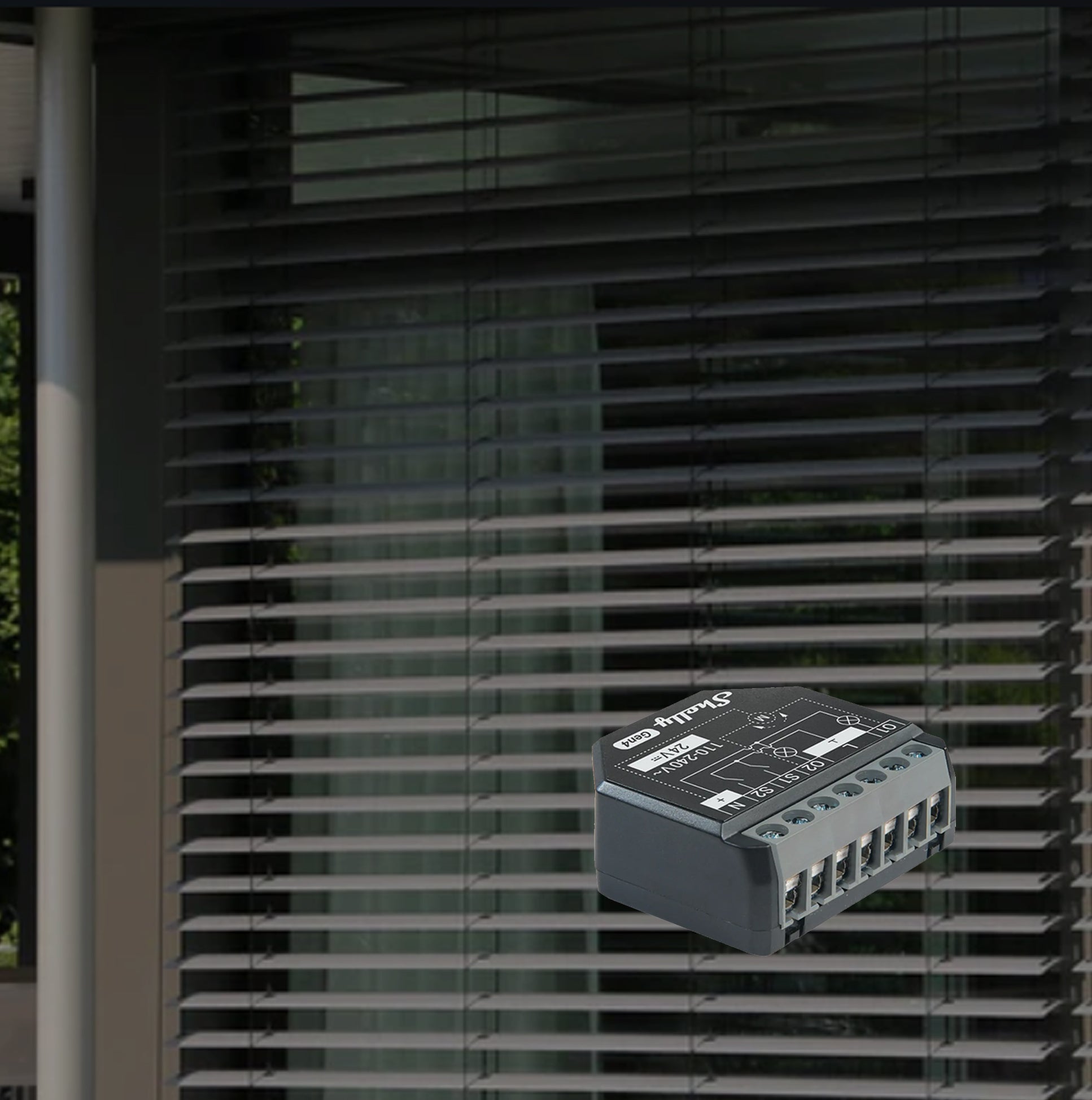

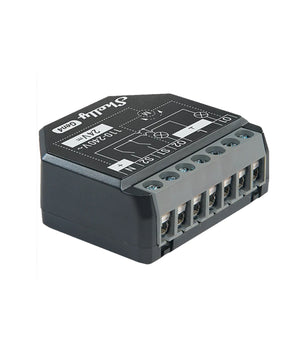

Shelly 2PM Gen4 — Module for Shutters and Energy Monitoring

Ref.: 095-6887 MAUSER
In stock
€34,19 VAT included

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

Shelly 2PM Gen4 — Module for Blinds and Energy Monitoring. See below for the features and conditions of use for this product.

Product information and features

Description

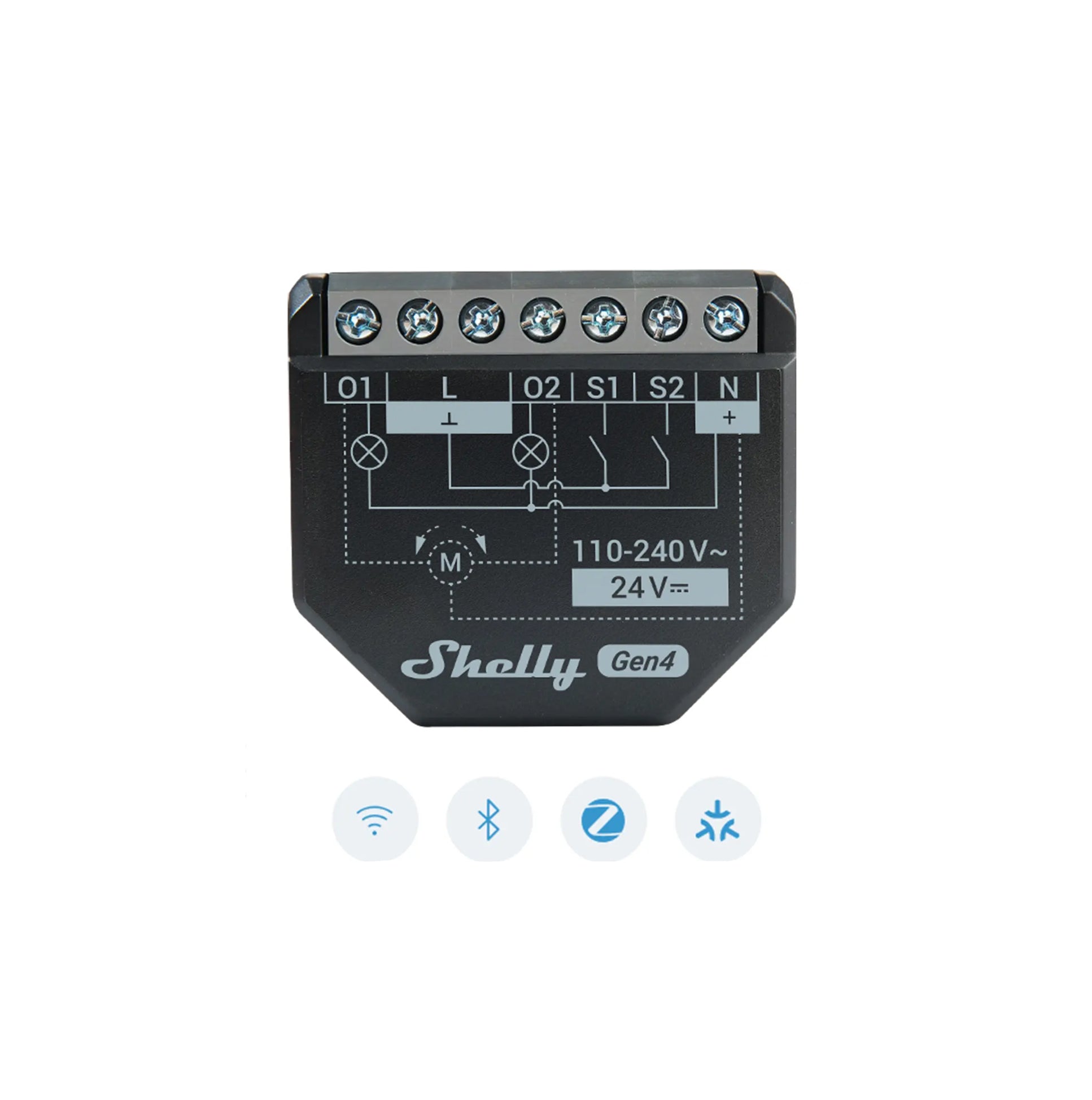

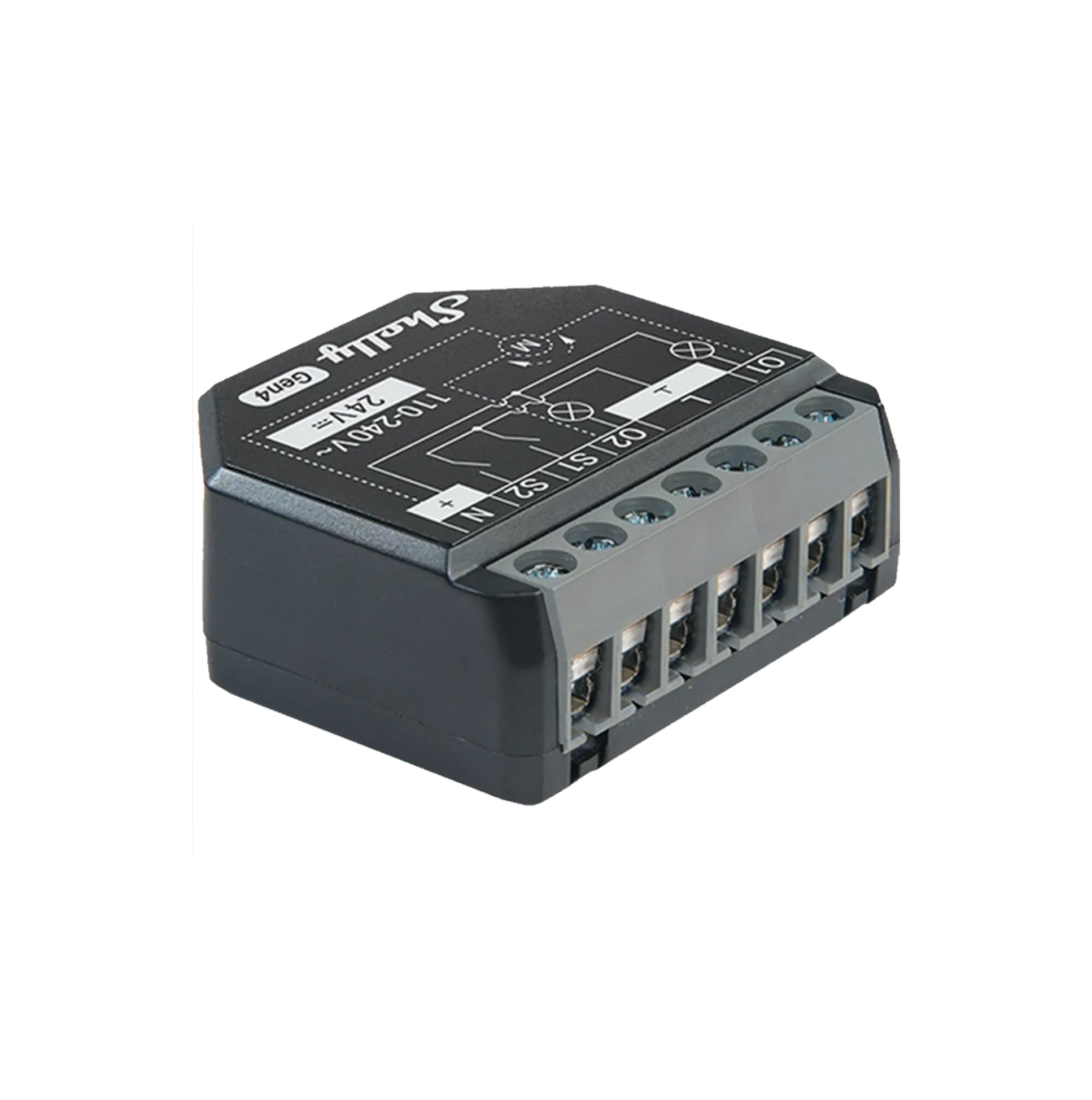

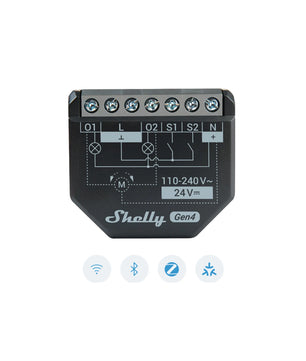

The Shelly 2PM Gen4 module is a two-channel smart switch with electric blind control and energy monitoring, ideal for home automation. It connects via Wi‑Fi, Bluetooth 5.0, Zigbee and Matter without a HUB, with a built-in web interface for configuration and control. It supports scripting, MQTT, Webhooks, TLS/HTTPS and WebSocket, and is compatible with Alexa, Google Home and HomeKit via Matter. It comes with an ESP-Shelly-C68F processor, expanded memory, more durable connection terminals, as well as a Wi‑Fi range extender mode and Bluetooth gateway.

Specifications

 Electrical Power supply: 110-240 V AC / 24 V DC ±10%
    - Power consumption: < 1.4 W
    - Recommended external protection:
        · Type B or C tripping characteristics
        · Max. rated current: 16 A
        · Max. breaking capacity: 6 kA
        · Energy limiting class: 3
Output Circuits
        · Max. switching voltage: 240V AC / 30V DC
        · Max. AC switching current:
              10A per channel,
              16A total,
              18A total peak
        · Max. DC switching current: 10 A
Sensors and Meters
        · Voltmeter (AC): Yes
        · Ammeter (AC): Yes
        · Internal temperature sensor: Yes
Connectivity Wi-Fi
        · Protocol: 802.11 b/g/n
        · RF band: 2412 - 2472 МHz
        · Max. RF power: < 20 dBm
        · Range:
              Up to 30m indoors and
              up to 50m outdoors
              (depending on local conditions)
Bluetooth
        · Protocol: 4.2
        · RF band: 2402 - 2480 MHz
        · Max. RF power: < 4 dBm
        · Range:
              Up to 10m indoors and
              up to 30m outdoors
              (depending on local conditions)
Zigbee
        · Protocol: 802.15.4
        · RF band: 2400-2483.5 MHz
        · Max. RF power: < 20 dBm
        · Range:
              up to 100 m indoors and
              up to 300 m outdoors
              (depending on conditions)
Microcontroller CPU: ESP-Shelly-C38F
Flash memory: 8 MB
Firmware Capabilities Schedules: 20
Webhooks (URL actions): 20 with up to 5 URLs per webhook
Scripting: Yes
MQTT: Yes
Environmental Specifications Operating temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max. altitude: 2000 m
Physical Features Mounting: for electrical junction box
Conductor cross-section: 0.2 to 2.5 mm² (24 to 14 AWG)
Housing material: Plastic
Housing color: Black
Terminal color: Black
Weight: 30 g
Dimensions (HxWxD): 37x42x16 ±0.5 mm
