12–24 VDC power supply module
Dispatch: Within 2 business days.
Once your order has been processed, you will receive a tracking number by email.
Description
12-24 VDC power supply module. See below for the characteristics and conditions of application of this product.
Product information and characteristics

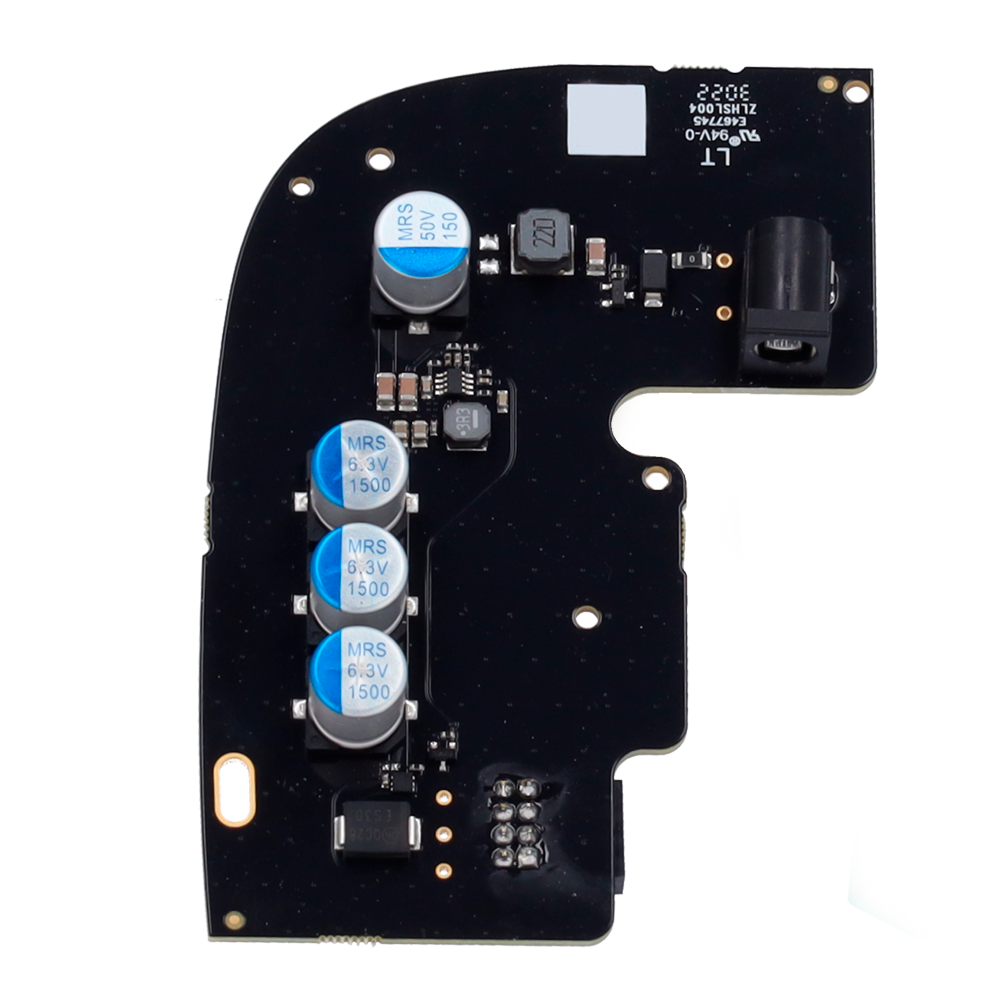

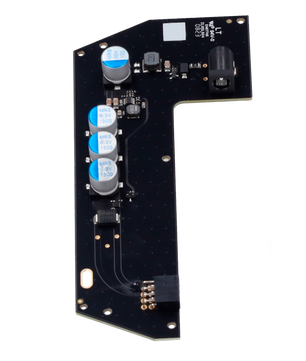

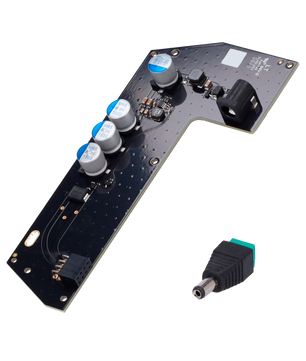

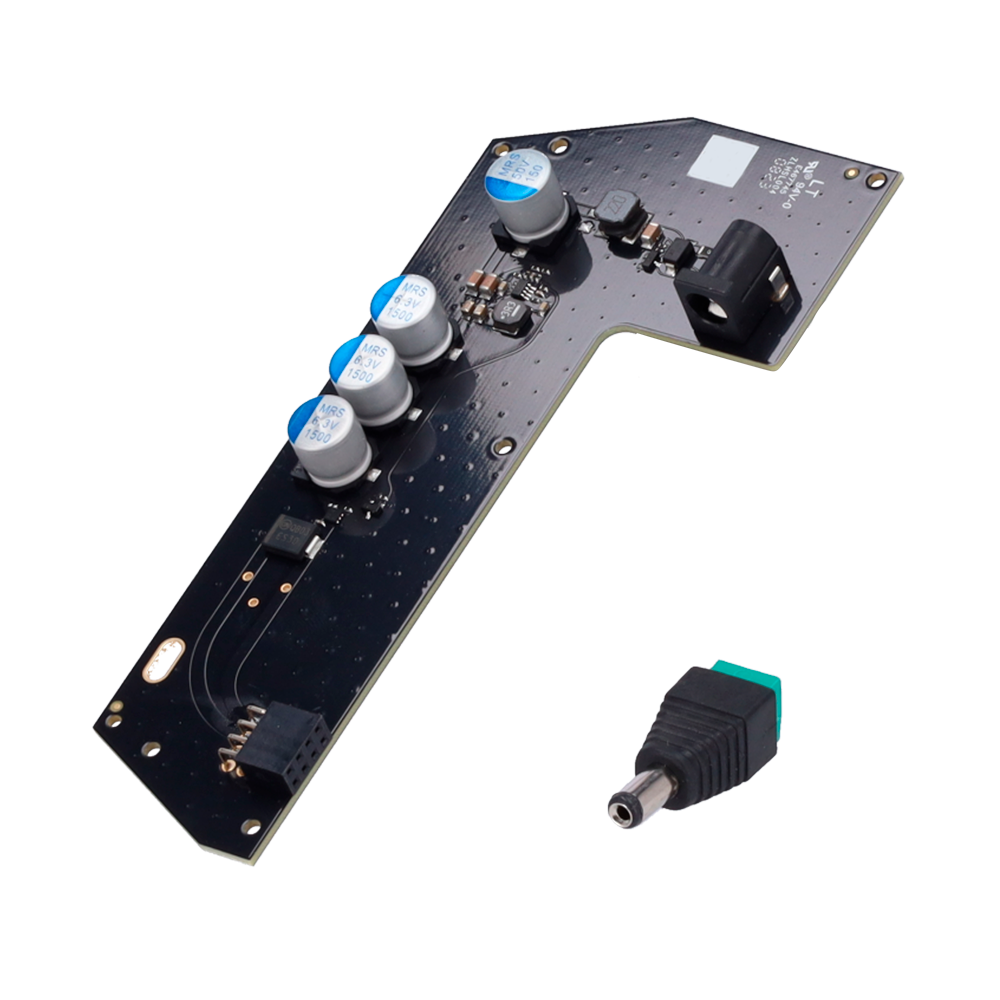

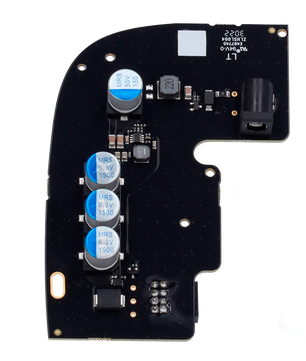

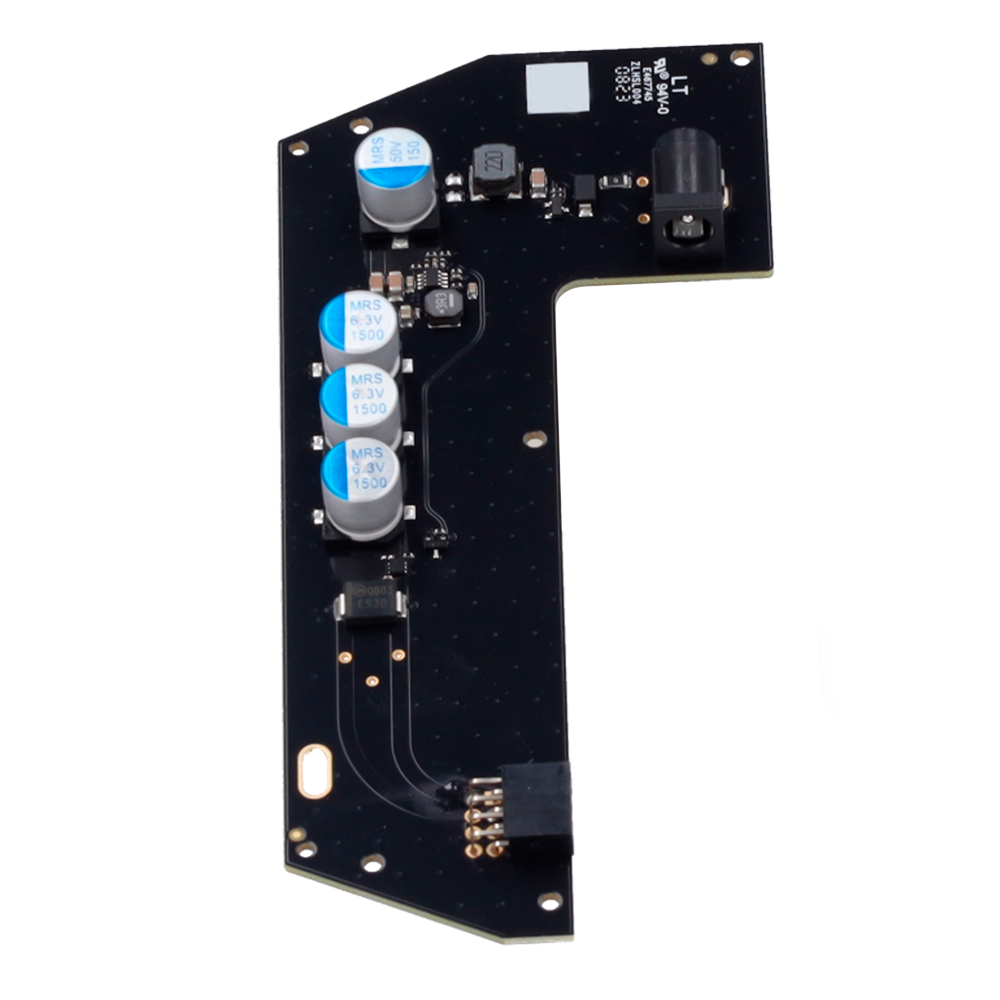

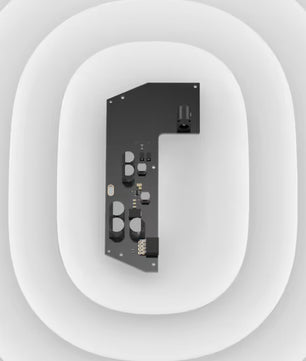

Description - PCB1

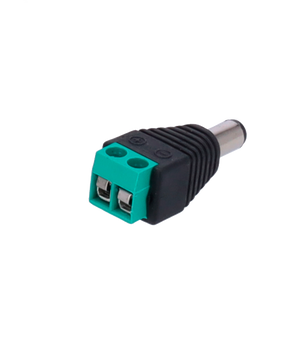

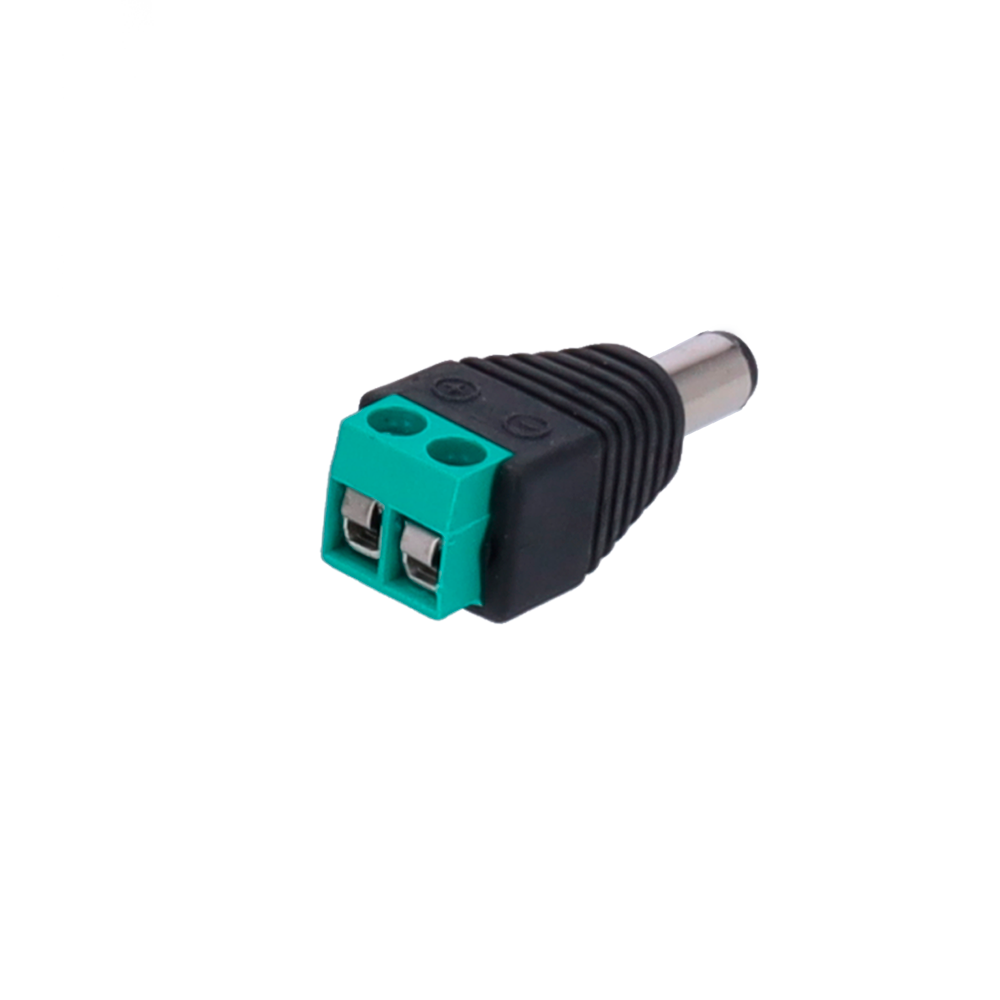

A power supply unit that connects the Hub/Hub Plus control panels and the ReX radio signal repeater to low-voltage power supplies (8~32 VDC input), Compatible with Ajax Hub, Hub Plus and ReX. Connector CON280 included.
Specifications
| Compatibility | Ajax Hub, Hub Plus and ReX |
| Input voltage | 8~32 VDC |
| Required current | 1 A maximum |
| Output current | 1.5 A |
| Dimensions | 138 (W) x 64 (L) x 13 (D) mm |

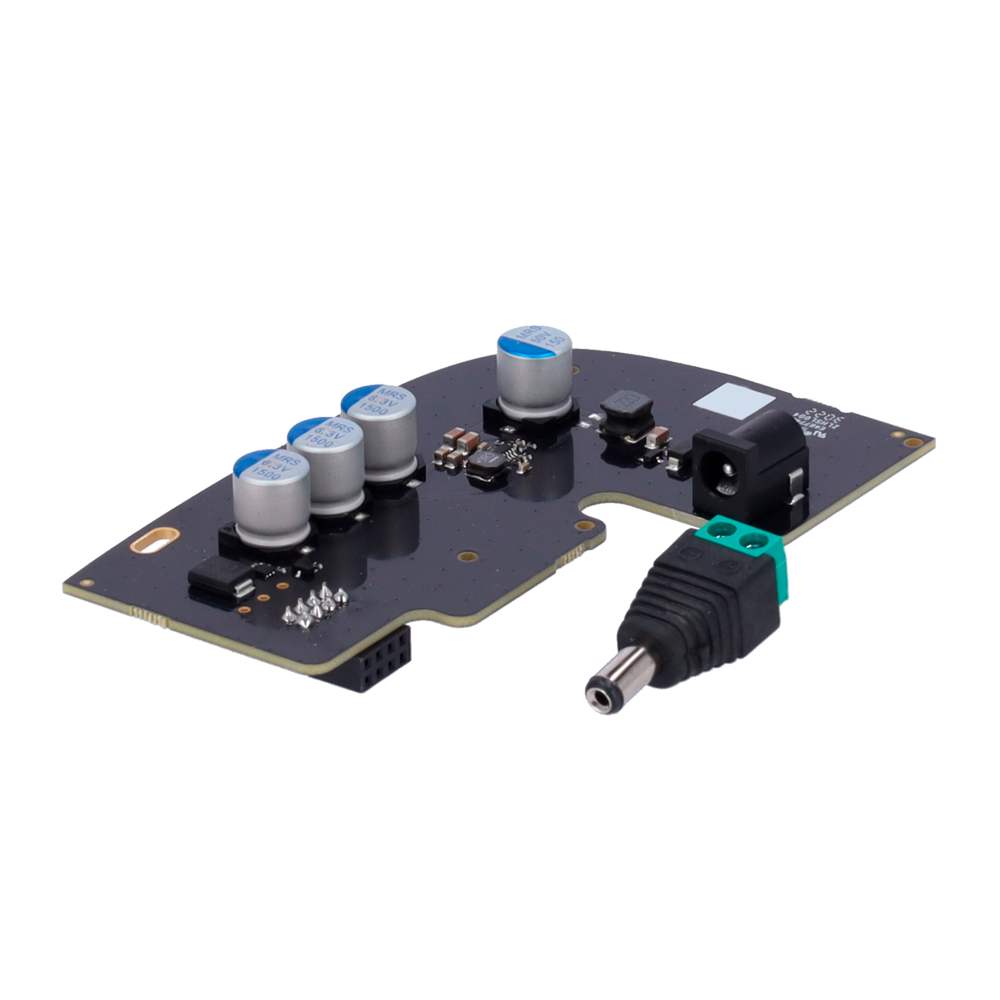

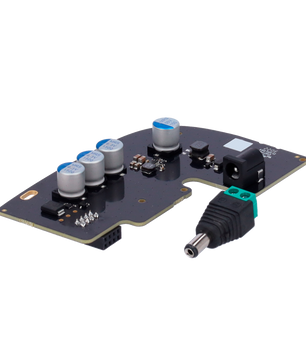

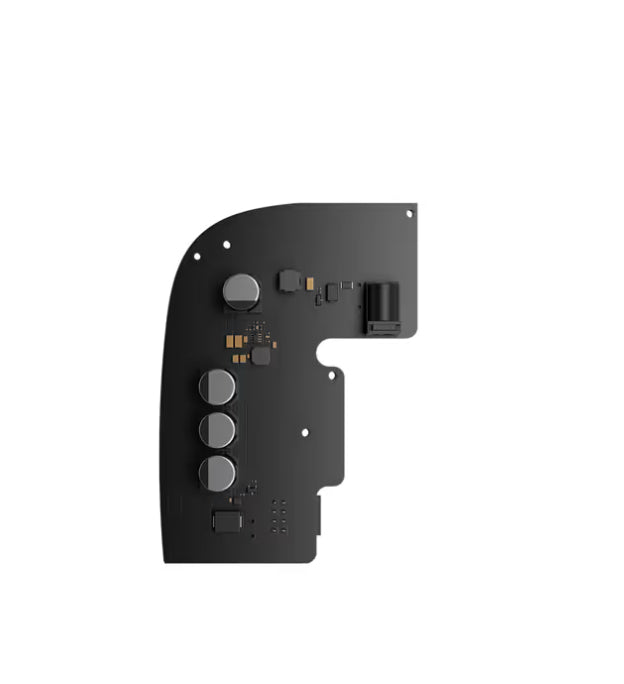

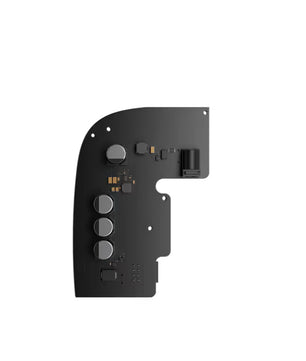

Description - PCB2
A power supply unit that connects the Hub 2/Hub 2 Plus control panels and the ReX 2 radio signal repeater to low-voltage power supplies (8~32 VDC input), Compatible with Ajax Hub 2, Hub 2 Plus and ReX 2. Connector CON280 included.
Specifications
| Compatibility | Ajax Hub 2, Hub 2 Plus and ReX 2 |
| Input voltage | 8~32 VDC |
| Required current | 1 A maximum |
| Output current | 1.5 A |
| Dimensions | 138 (W) x 64 (L) x 13 (D) mm |
Available options
- Reference: PCB1; PCB2.
Select the desired options before adding the product to the cart.
