DIN rail module with 1 relay for Z-Wave™ automation
Ref.: 095-3208 MAUSER
In stock
€72,32
VAT included
Dispatch: Within 2 business days.
Once your order has been processed, you will receive a tracking number by email.
Secure payment
Fast shipping
Customer support
Description
DIN rail module with 1 relay for Z-Wave™ automation. See below for the features and application conditions of this product.
Product information and features
Description

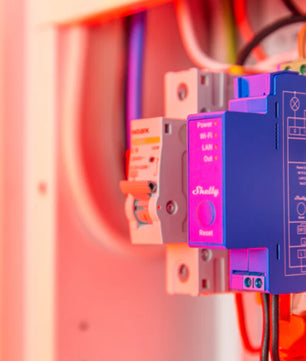

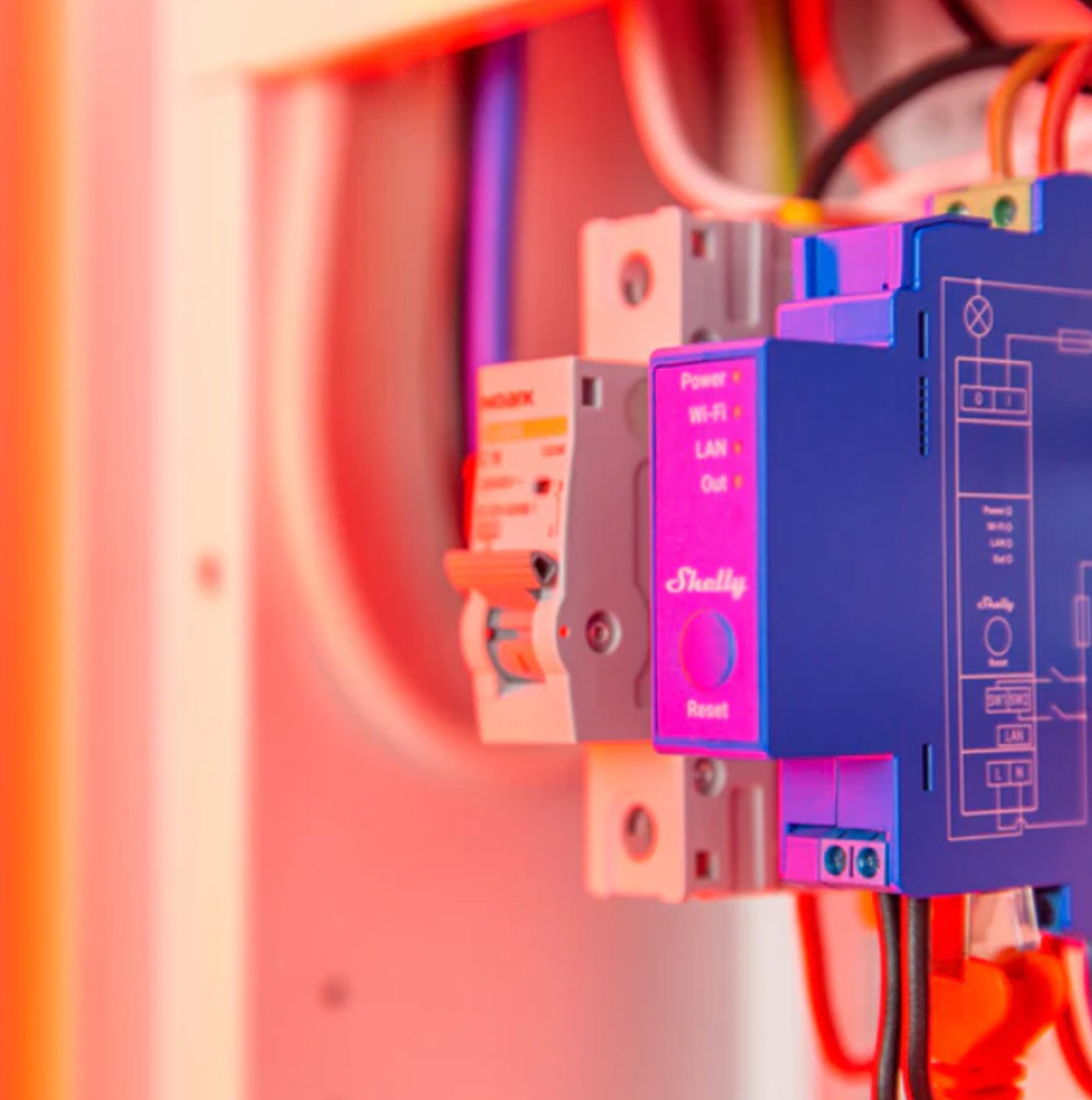

Professional 1-channel Z-Wave® smart switch with 16A dry contacts (potential-free), for DIN rail mounting (inside an electrical panel).
Suitable for the smart automation of homes and remotely controlled installations.
Used by those looking to automate lights, household appliances, irrigation systems, swimming pools, and other water systems.
Specifications
| Power supply | 110-240V AC, 50/60 Hz |
| Own consumption | < 0.3 W |
| Contact | Potential-free: Yes (dry contact) Maximum AC switching voltage/current: 240V / 16 A Maximum DC switching voltage/current: not specified |
| Overheating protection | Yes |
| Power measurement | No |
| Z-Wave communication | Frequencies: Sub-G (from 868.4 to 920.9 MHz) CPU: Z-Wave S800 Z-Wave™ repeater: Yes Range: Up to 40m in indoor spaces (depends on local conditions) |

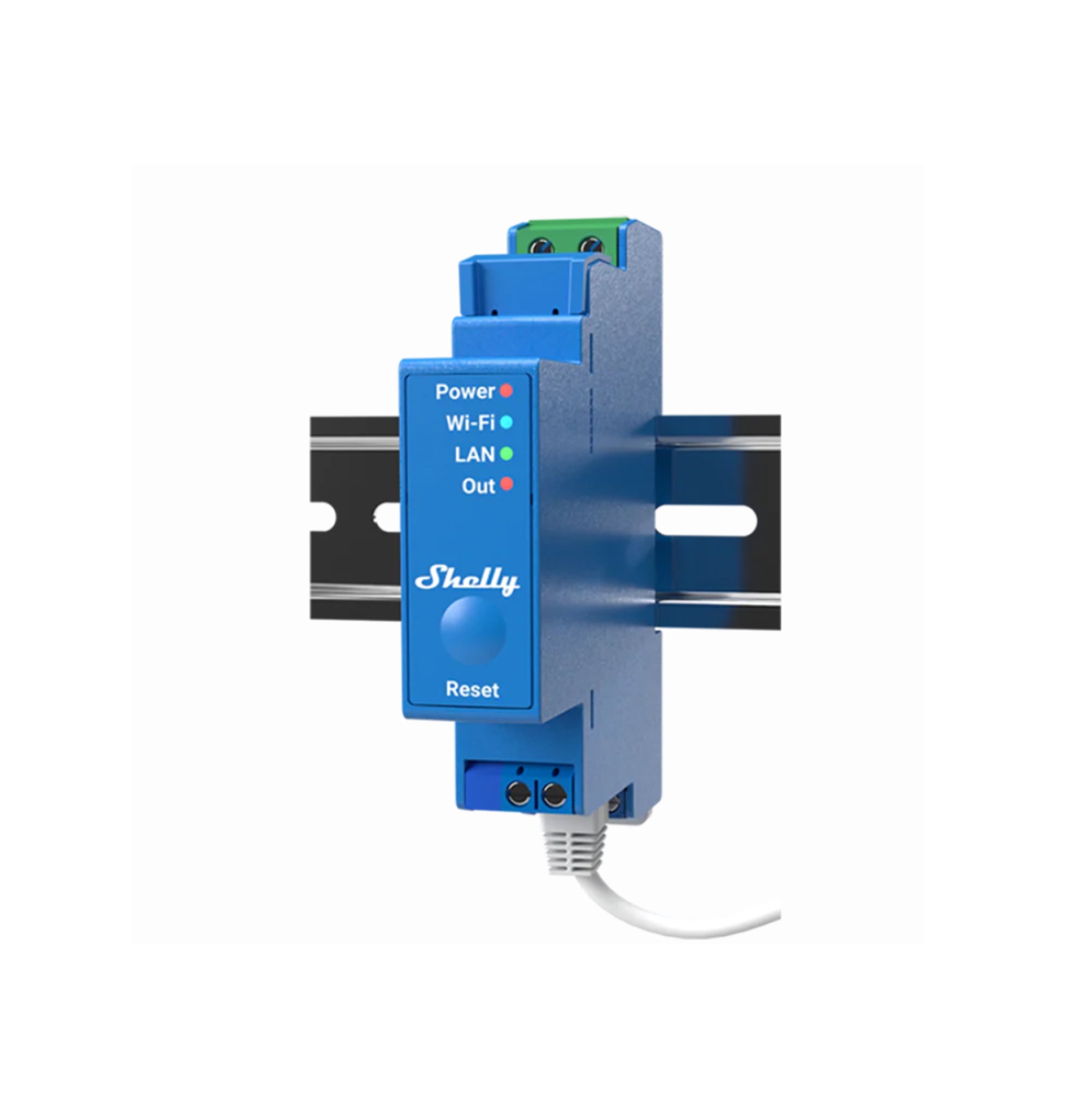

| Mounting | DIN rail |
| Conductor cross-section |
Green connector: 0.5 to 2.5 mm (20 to 14 AWG) White connectors: 0.5 to 1.5 mm (20 to 16 AWG) |
| Dimensions and materials |
Enclosure material: Plastic Color: Blue Ambient temperature: -20°C to 40°C Humidity: 30 % to 70 % RH Maximum altitude: 2000 m Weight: 60 g Size (H x W x D): 94x19x69 mm |
