Three-phase Wi-Fi energy meter module

Ref.: 095-8981 MAUSER
In stock
€157,19 VAT included
AMPERAGE: 120

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

Wi-Fi three-phase energy meter module. See below for the features and application conditions of this product.

Product information and features

Description

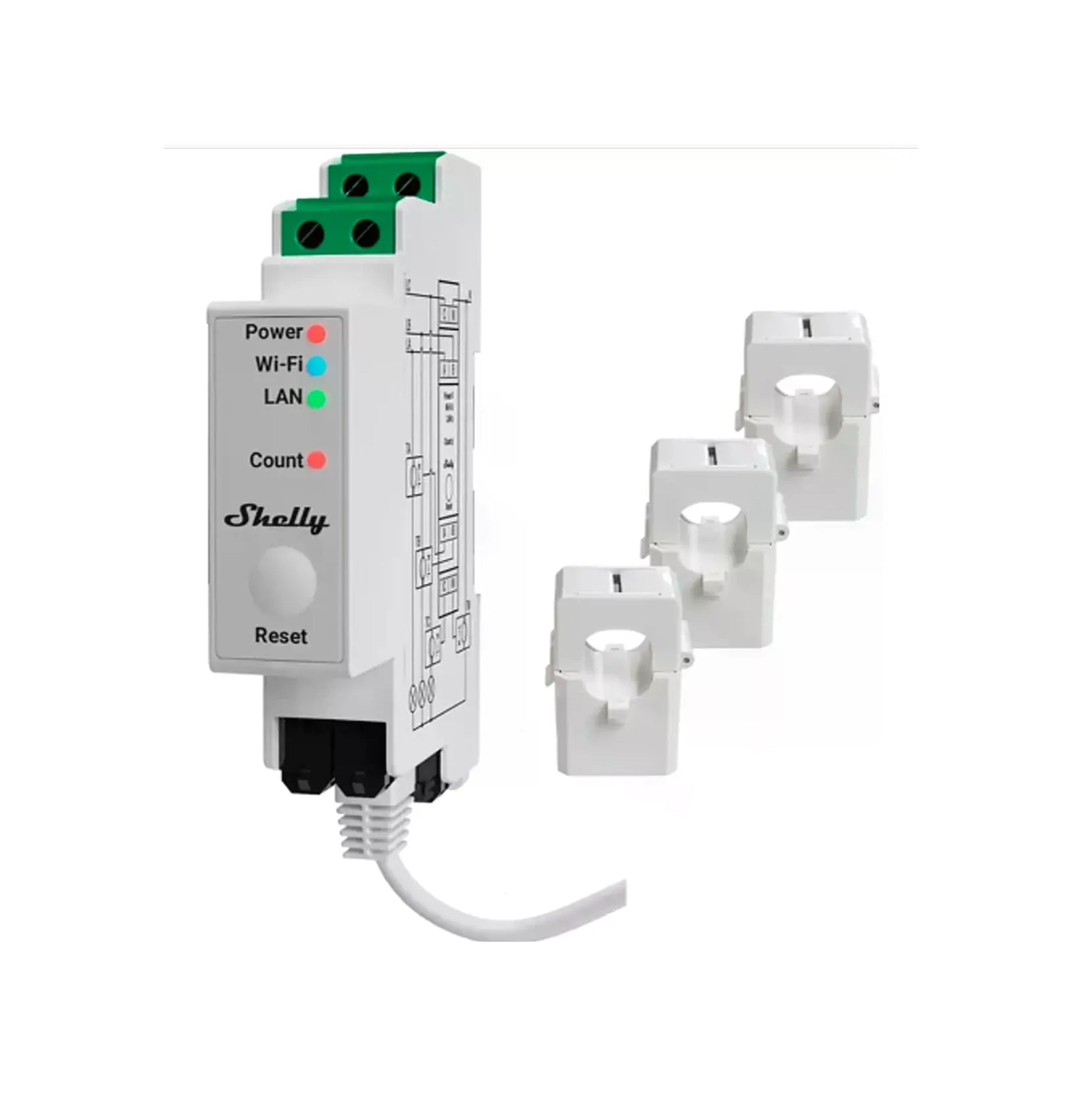

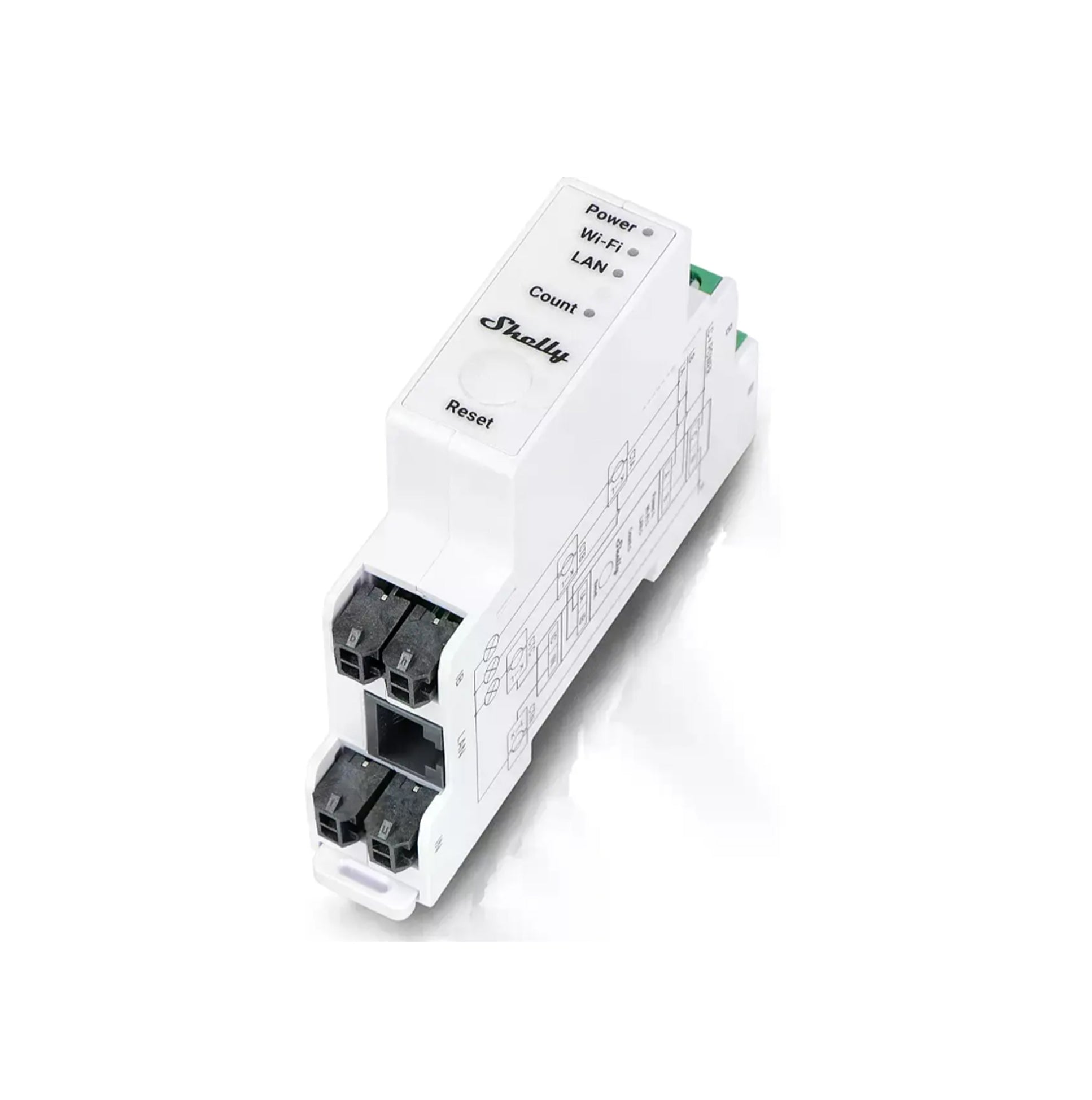

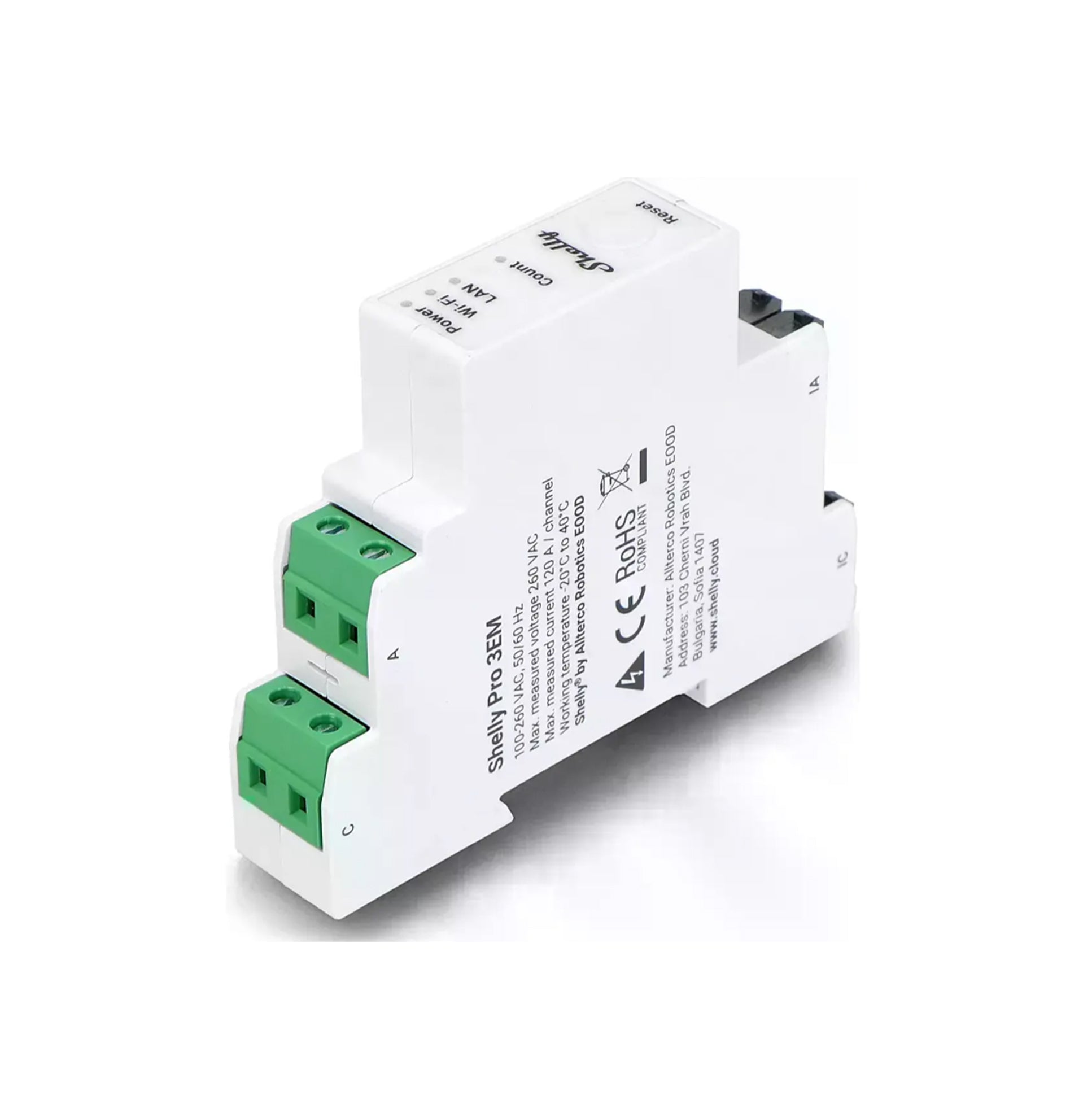

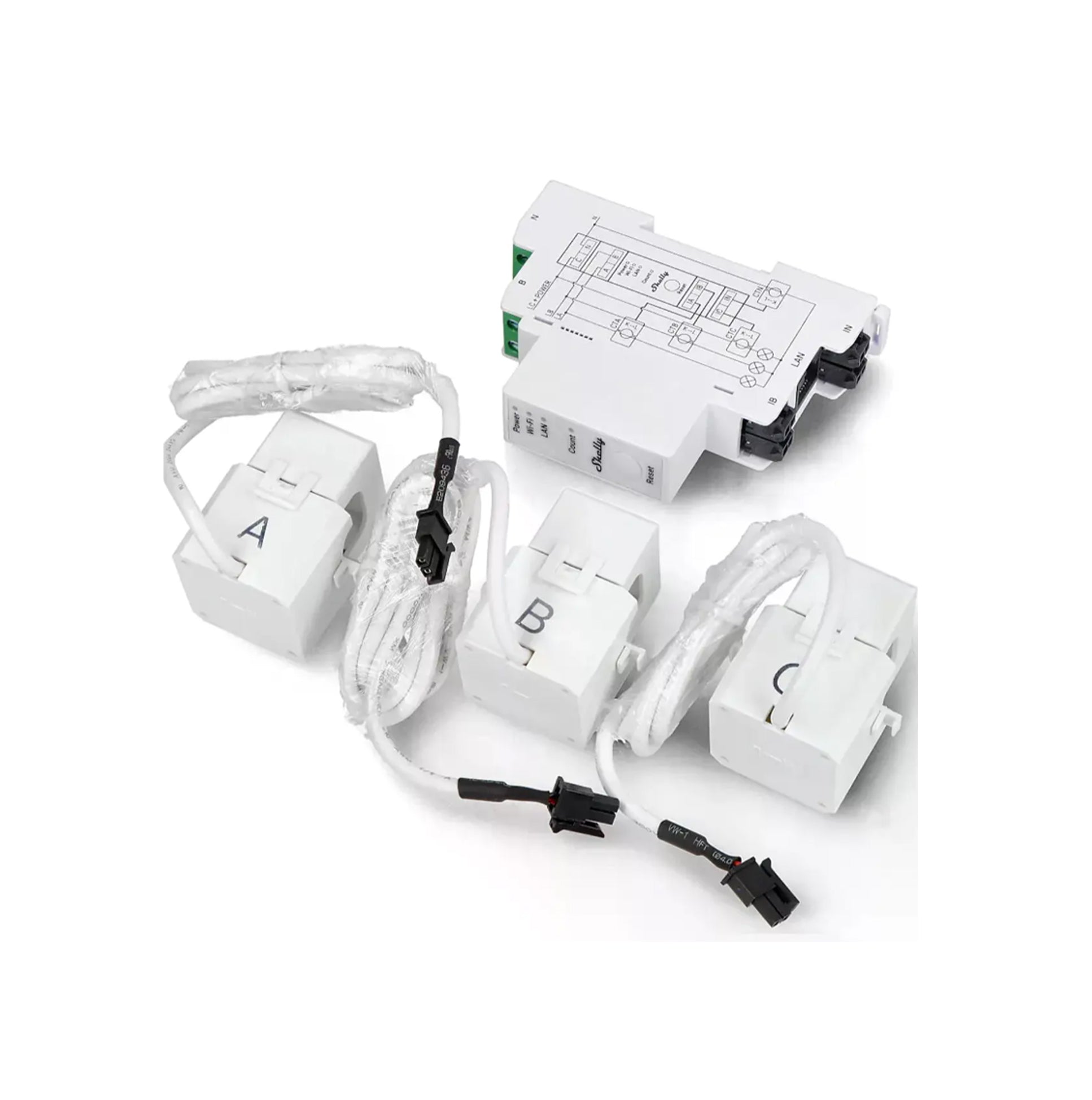

This three-phase energy measurement module mounts on a DIN rail and measures voltage, current, and power factor per phase, with 3 current transformers and accuracy below 1% between 2 and 120 A. It stores data with 1-minute resolution and 60 days of local history, with an option to extend up to 365 days via the cloud. Equipped with ESP32, Wi‑Fi, network extender, and Bluetooth gateway, it supports Modbus TCP, allows the automation of scenarios, local or cloud control of devices, single-phase/three-phase, and exports data in CSV and JSON via RPC, with protection against overheating, overload, overvoltage, and overcurrent.

Specifications

ELECTRICAL: AC supply voltage: 110 - 240 V, 50/60 Hz
DC supply voltage: N/A
Power consumption: < 3 W
SENSORS and MEASUREMENTS: Temperature sensor: Yes
Voltmeters (RMS for each phase): 100 - 260 V
Voltmeter accuracy: ±1% error
Ammeters (RMS via CT for each phase and Neutral): 0-400A
Ammeter accuracy: ±1% (5-400A), ±2% (0-5A)
Power and energy meters:
        · Active and apparent power
        · Active and apparent energy
        · Power factor
        · Fundamental active and reactive energy (ignoring harmonics)
Measurement data storage: At least 60 days with 1-minute data resolution
Data export:
        · CSV for recorded PQ values
        · JSON format export via RPC
WIRELESS: Wi-Fi protocol: 802.11 b/g/n
RF band: 2401 - 2495 MHz
Max. RF signal power: <20 dBm
Wi-Fi range: Up to 30m indoors and 50m line-of-sight
Bluetooth protocol: 4.2
Bluetooth range: Up to 10m indoors and 30m line-of-sight
MCU and FIRMWARE: CPU: ESP32-D0WDQ6
Flash: 16 MB
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: mJS
MQTT: Yes
CoAP: No
GENERAL: Mounting: DIN rail
Max. screw terminal torque: 0.4 Nm
Connection conductor cross-section: 0.5 to 2.5 mm²
Clamp opening: Ø35 mm
Exterior material: Plastic
Color: White
Weight: 62g
Size: 94x19x69 mm
ENVIRONMENTAL Operating temperature: -20°C to 40°C
Humidity: 30 % to 70 % RH
Maximum altitude: 2000 m / 6562 feet



Available options

  • AMPERAGE: '120; '400.

Select the desired options before adding the product to the cart.
