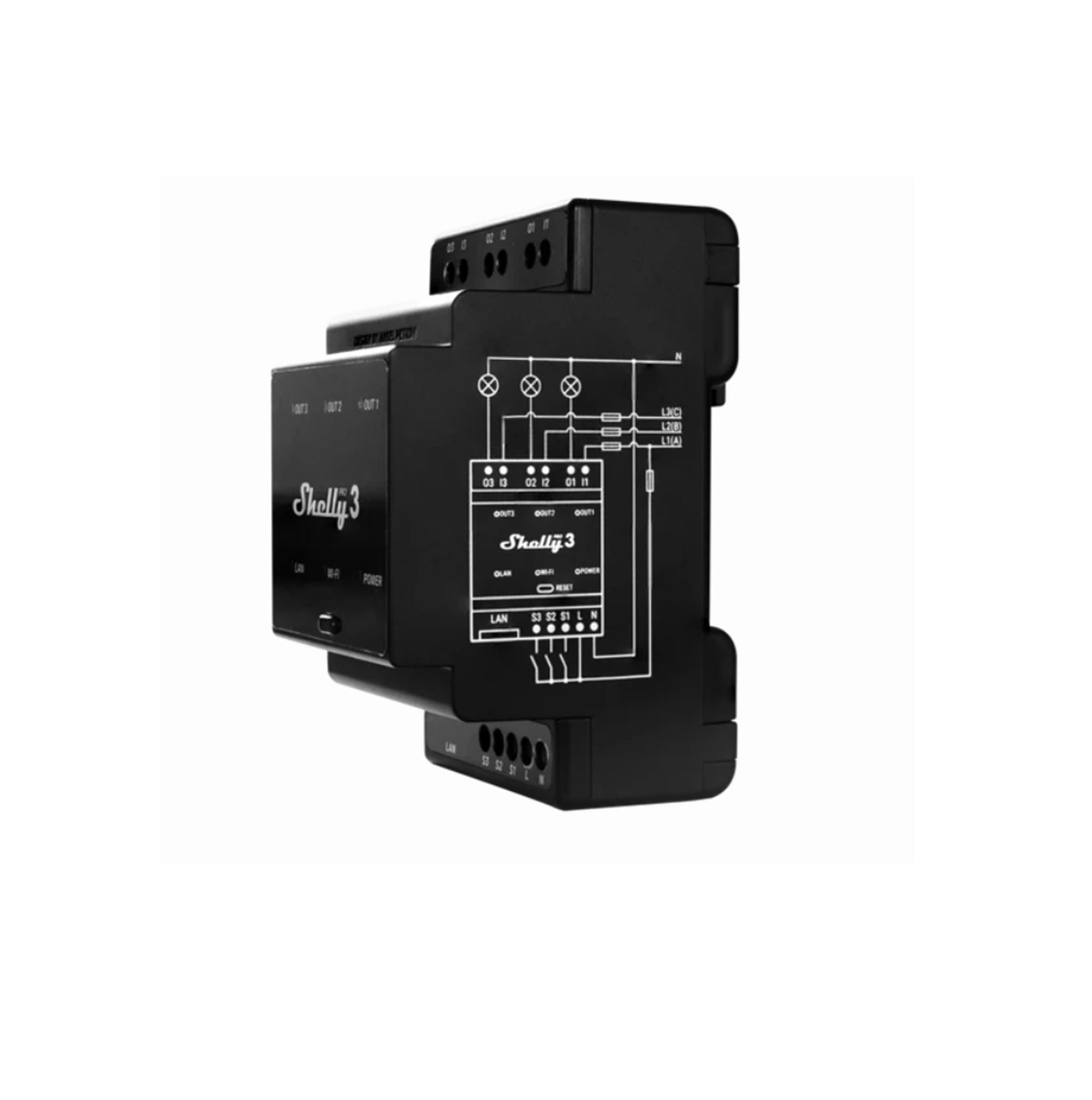

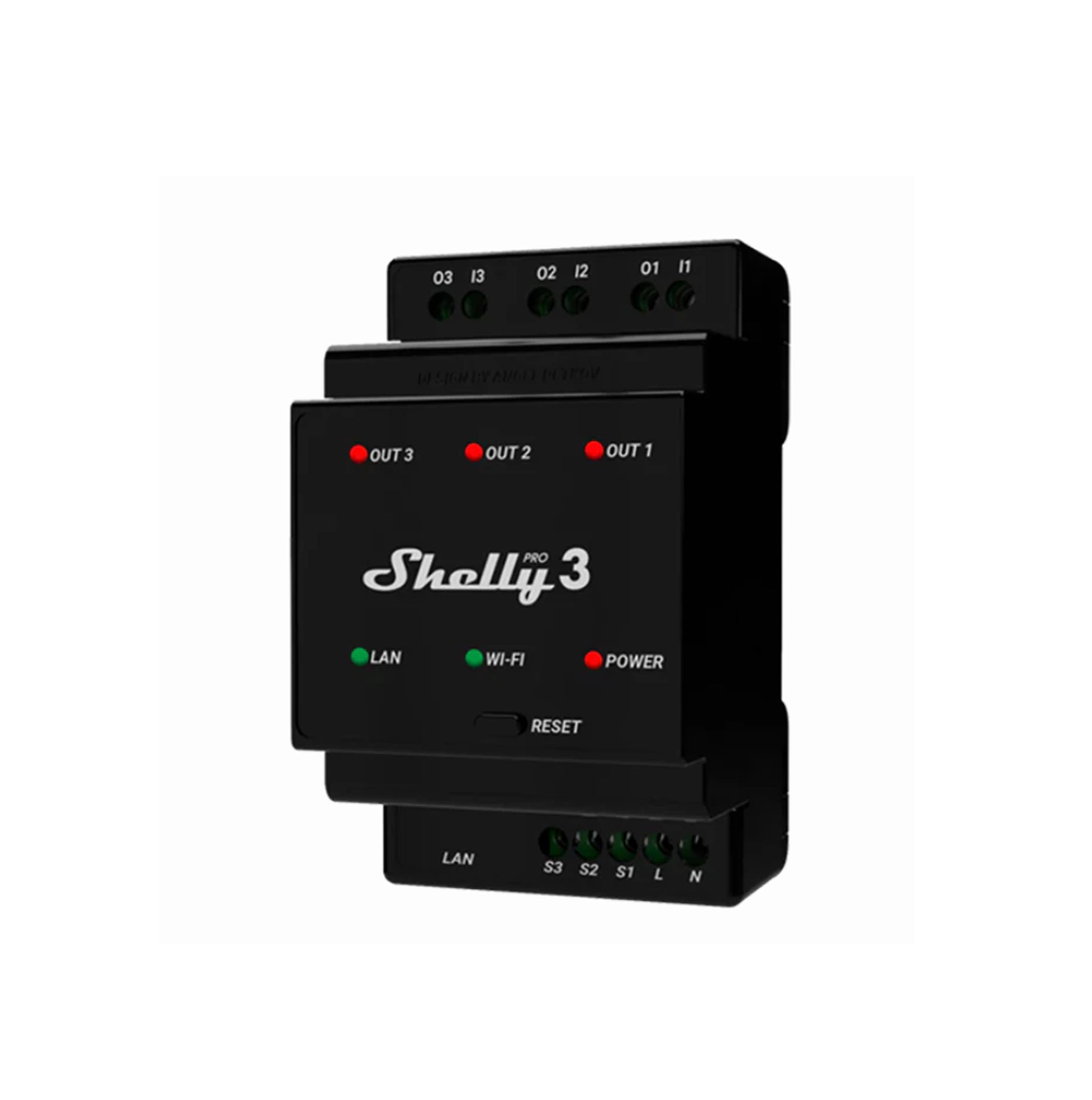

Z-Wave Plus/ZWLR automation module

Ref.: 095-7915 MAUSER
In stock
€122,75 VAT included

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

Module for Z-Wave Plus/ZWLR automation. See below for the features and conditions of application of this product.

Product information and features

Description

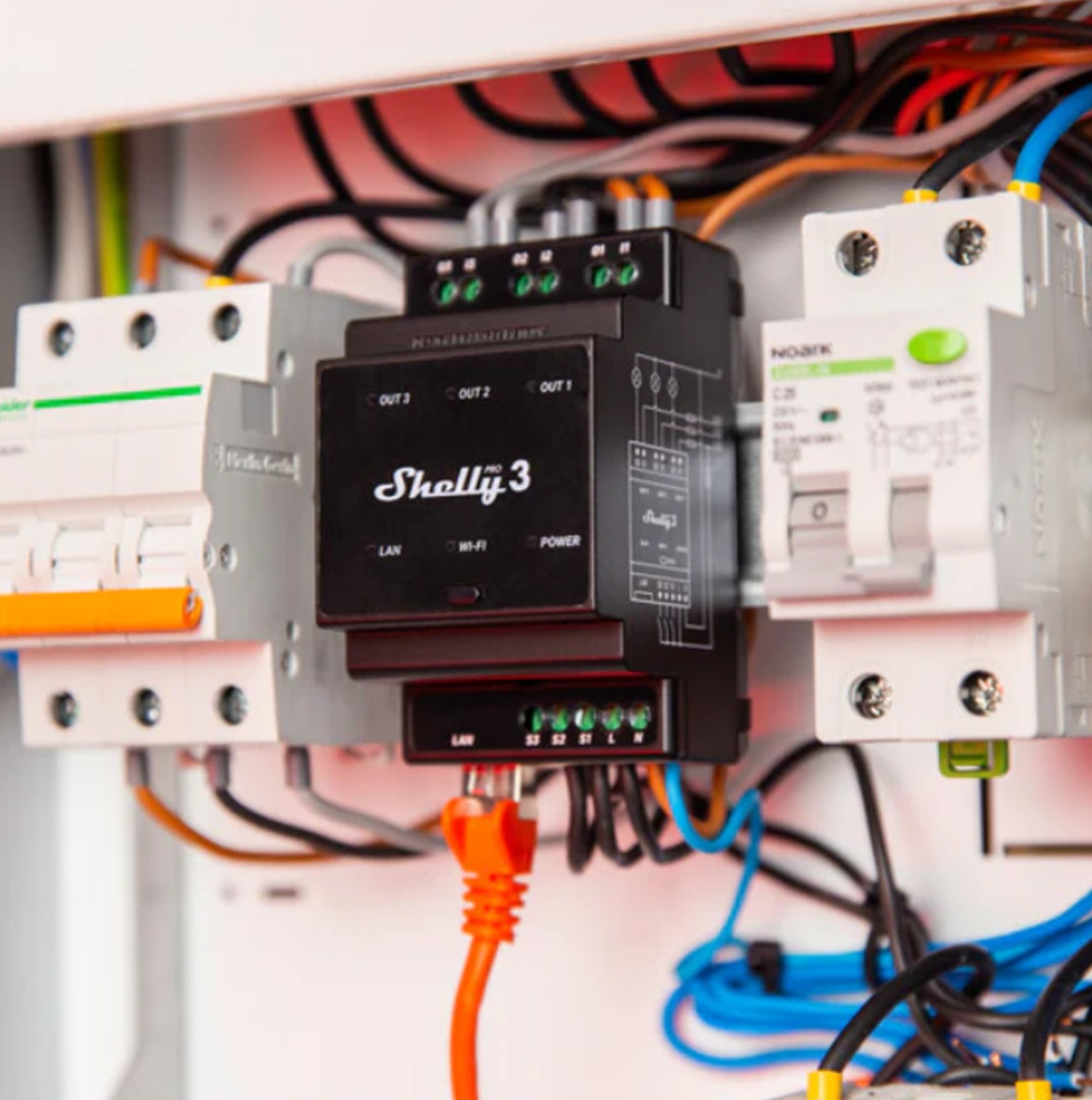

Suitable for installation in electrical panels, it is DIN rail mountable, includes overheating protection and uses the latest generation Z-Wave Series 800 (S800). This LR (Long Range) version allows greater coverage and reliability in large installations, being especially indicated for new buildings, large properties and professional contexts.

Used by those looking to automate lamps, appliances, valves and heating/cooling systems.

Specifications

Power supply Alternating current: 110-240V AC ± 10%, 50/60Hz
Consumption: < 3 W
Outputs Maximum AC switching voltage: 240 V;
Maximum AC switching current: 16 A per channel, 48 A total;
Maximum DC switching voltage: 30 V;
Maximum DC switching current: 16 A per channel, 48 A total;
Connectivity (Z-Wave)

CPU: Z-Wave S800 (Series 800);

Security: Unsecure, S0, S2 Unauthenticated, S2 Authenticated;
Z-Wave Long Range mode (star)
    · Distance: up to 80 m indoors / up to 1000 m outdoors (depends on local conditions);
    · Frequency band: 864 MHz;
    · Z-Wave repeater: No;
Z-Wave mode (mesh)
    · Distance: up to 40 m indoors (depends on local conditions);
    · Frequency band: 868.4 MHz;
    · Z-Wave repeater: Yes;
Maximum transmission power (in the frequency band(s)): < 25 mW;
Overheating protection Yes
Mounting DIN rail
Terminals
Maximum terminal torque: 0.4 Nm;
Conductor cross-section: 0.5 to 2.5 mm²;
Stripped conductor length: 6 to 7 mm;
Physical characteristics Dimensions (H x W x D): 96 x 53 x 59 ± 0.5 mm;
Weight: 150 g;
Enclosure material: Plastic;
Color: Black;
Environmental conditions Ambient temperature: -20°C to 40°C;
Humidity: 30% to 70% RH;
Maximum altitude: 2000 m
