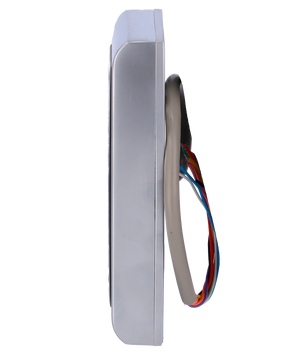

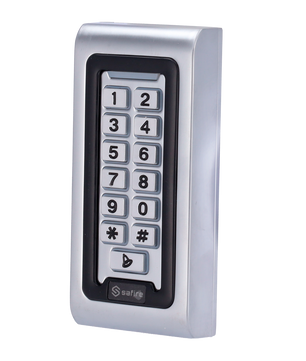

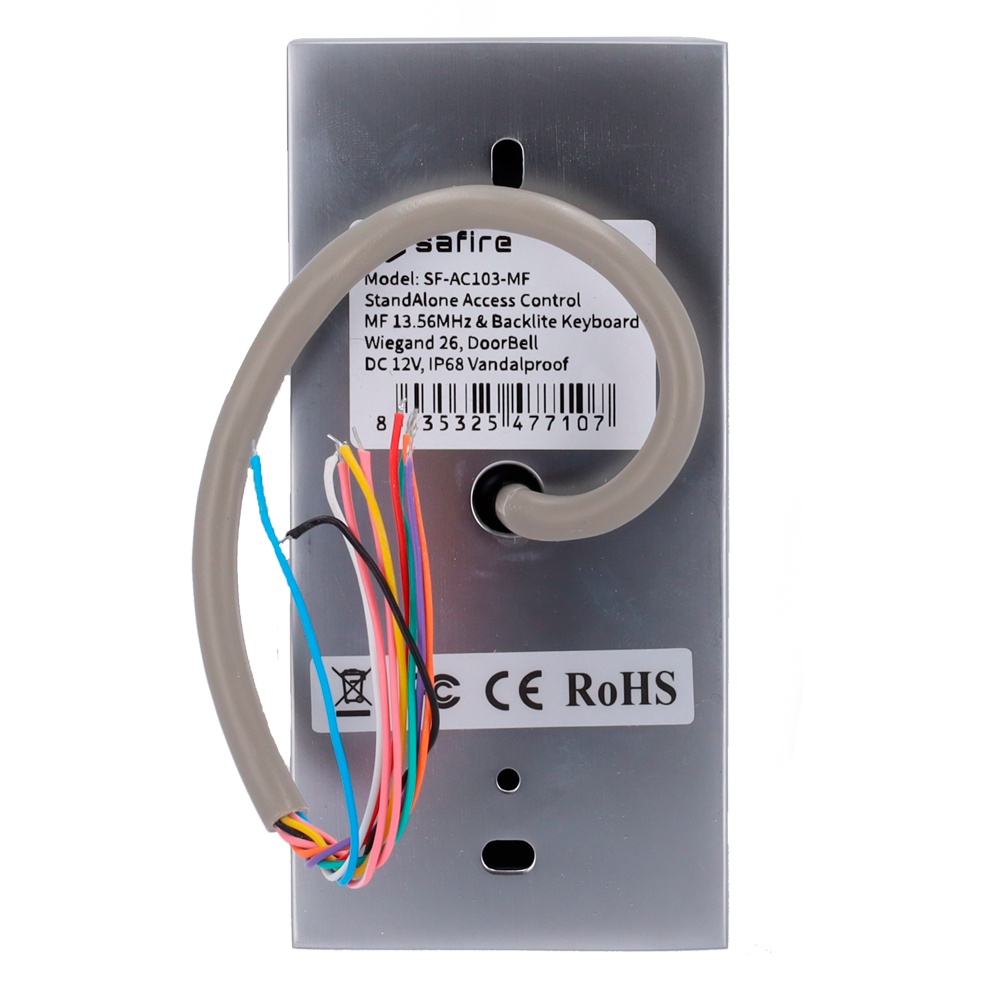

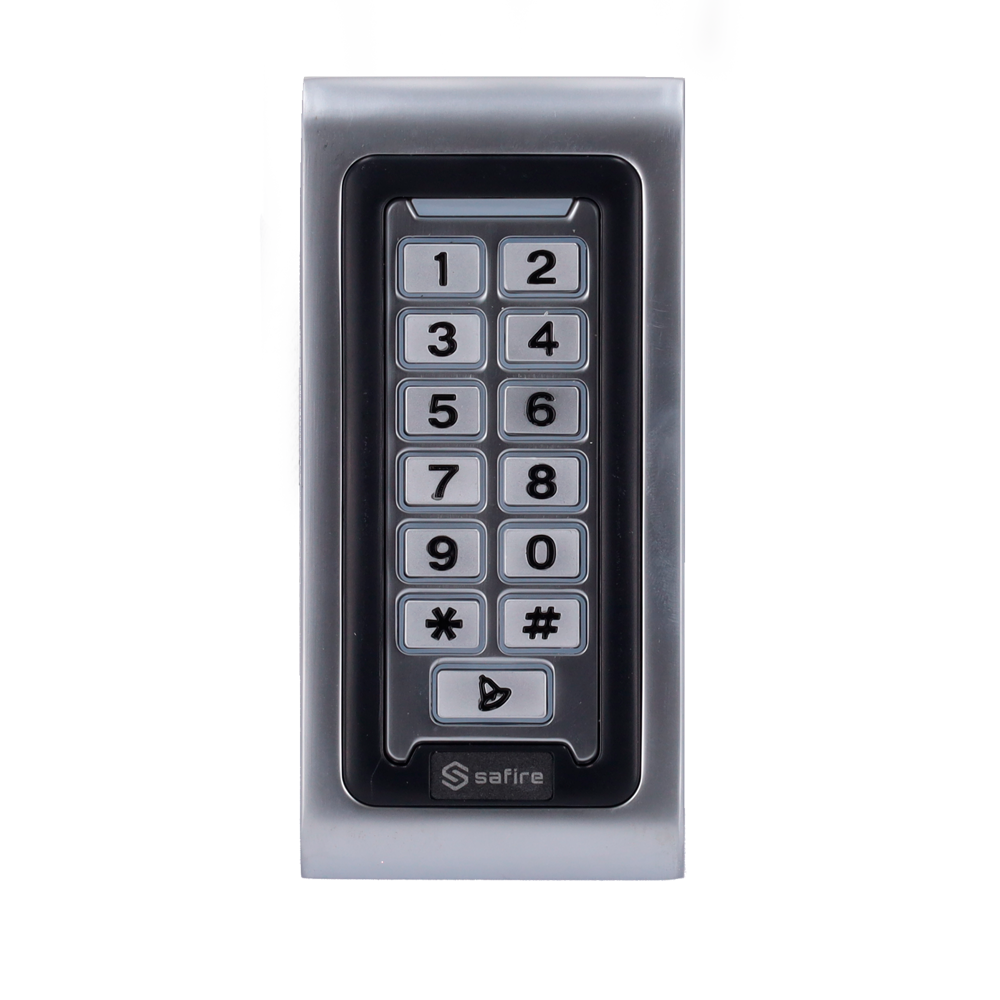

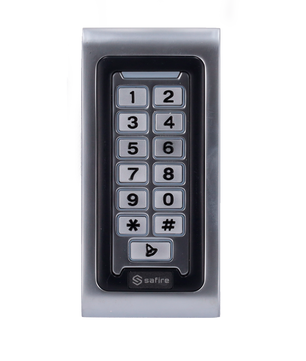

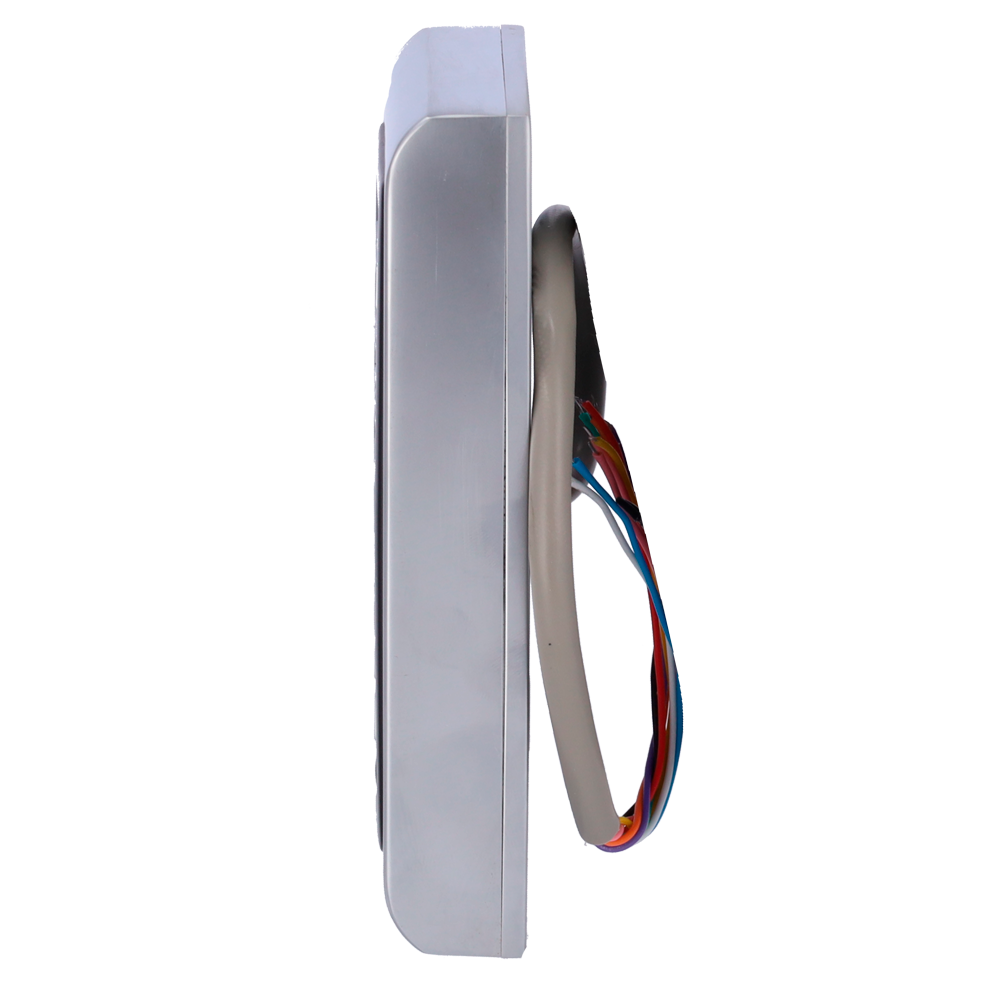

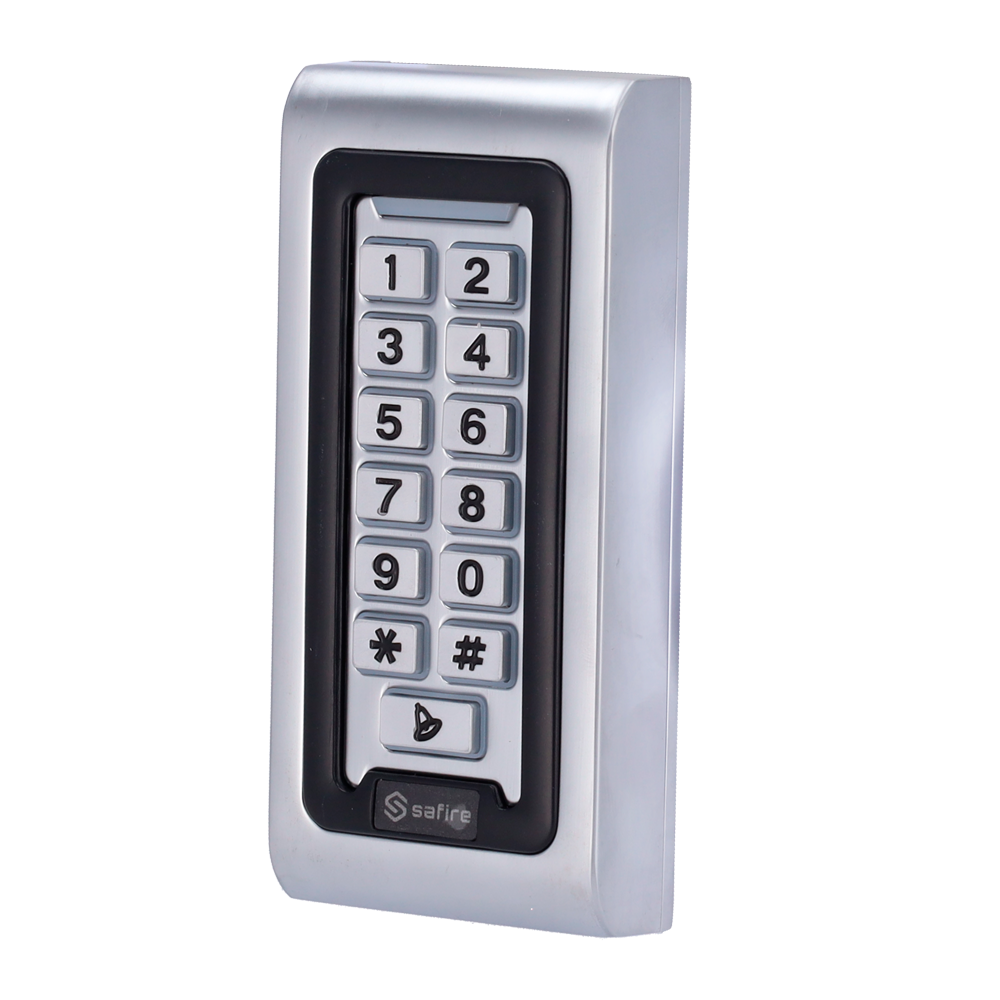

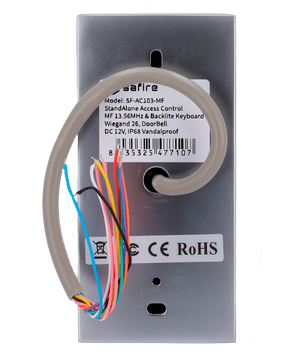

SF standalone access control keypad

Ref.: SF-AC103-MF - visiotech
In stock
€52,15 VAT included

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

SF standalone access control keypad. See below for the features and conditions of use for this product.

Product information and features

Description

A standalone access control device combines the functions of a controller and reader in a single unit. This equipment is responsible for identifying users, validating access permissions, and triggering the electric lock via the integrated relay.

Authentication can be carried out using cards or key fobs with 13.56 MHz MF technology, as well as by entering numerical codes on the built-in keypad.

The system is configured locally, directly on the device, allowing users, credentials, and special functions to be managed, as well as parameters such as relay opening time and reader read time to be adjusted.

Specifications

Capacity Up to 2,000 cards/passwords
Identification methods Card, PIN, and combinations
Proximity card MF 13.56 MHz
Outputs NO/NC relay, push button, and doorbell
Communication Wiegand 26
Special functions Operation as a standalone terminal or as a reader
Power supply 12 V DC
Standby consumption ≤ 30 mA
Protection rating IP68 outdoor
Operating temp. -40 ºC ~ +60 ºC
Dimensions 75 (L) x 110 (H) x 25 (D) mm
Weight 580 g
