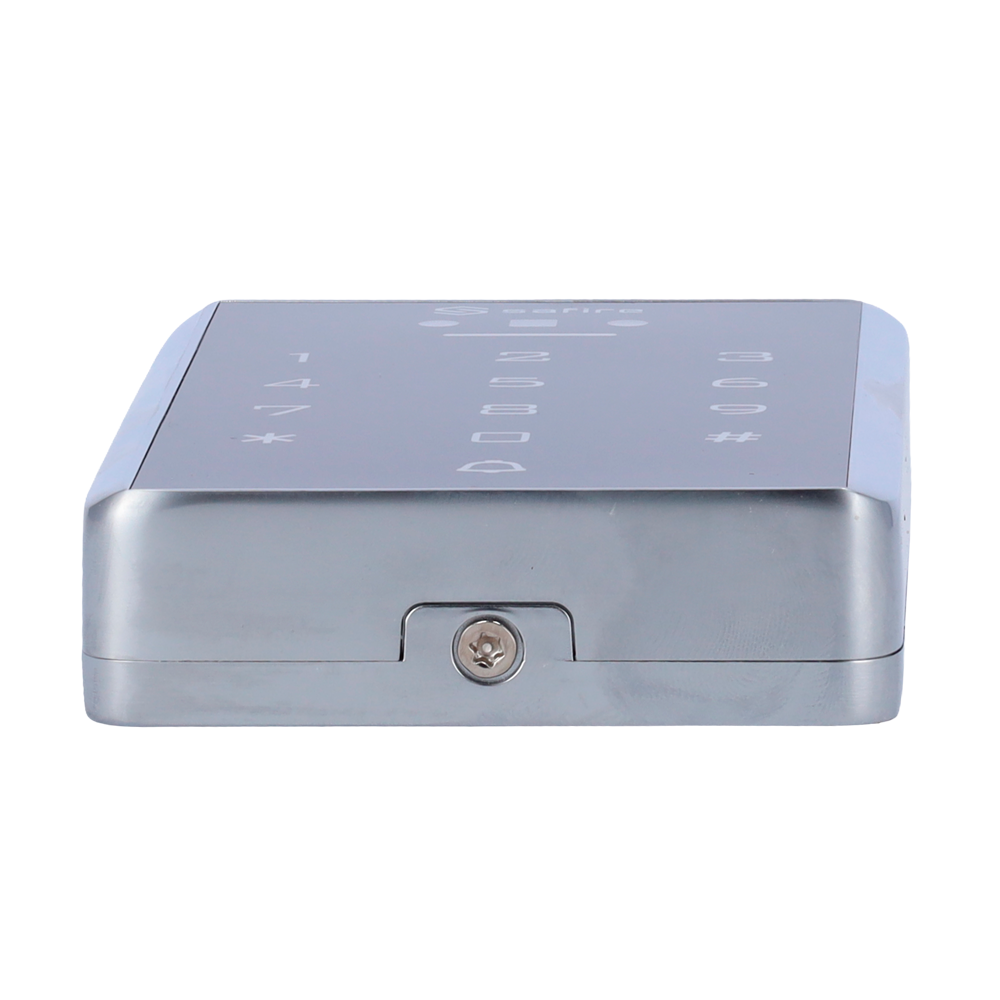

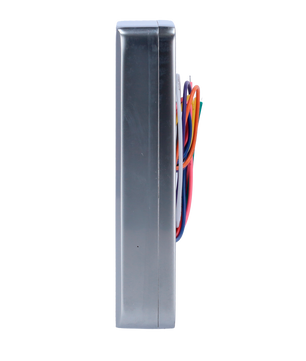

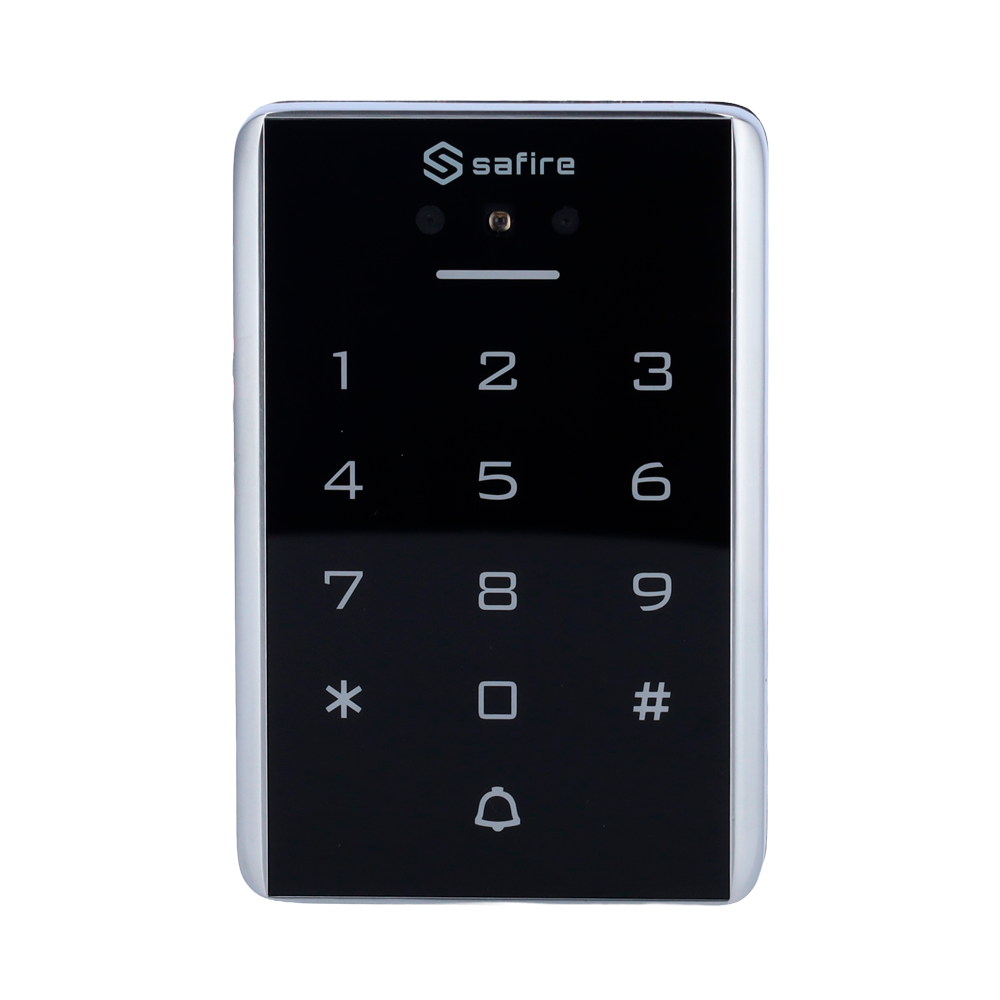

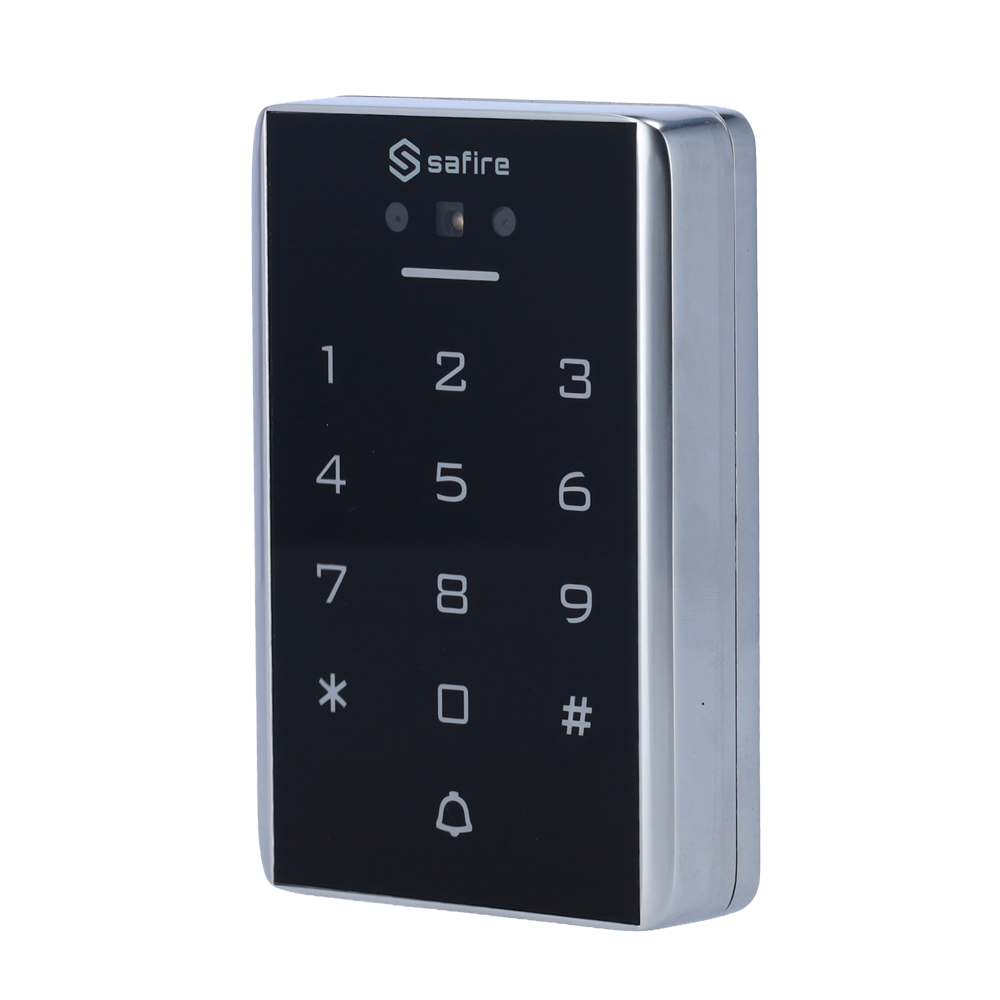

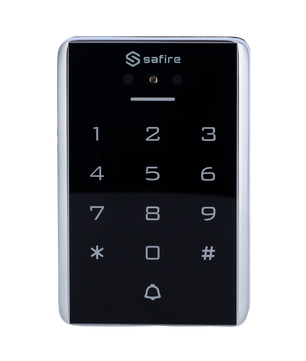

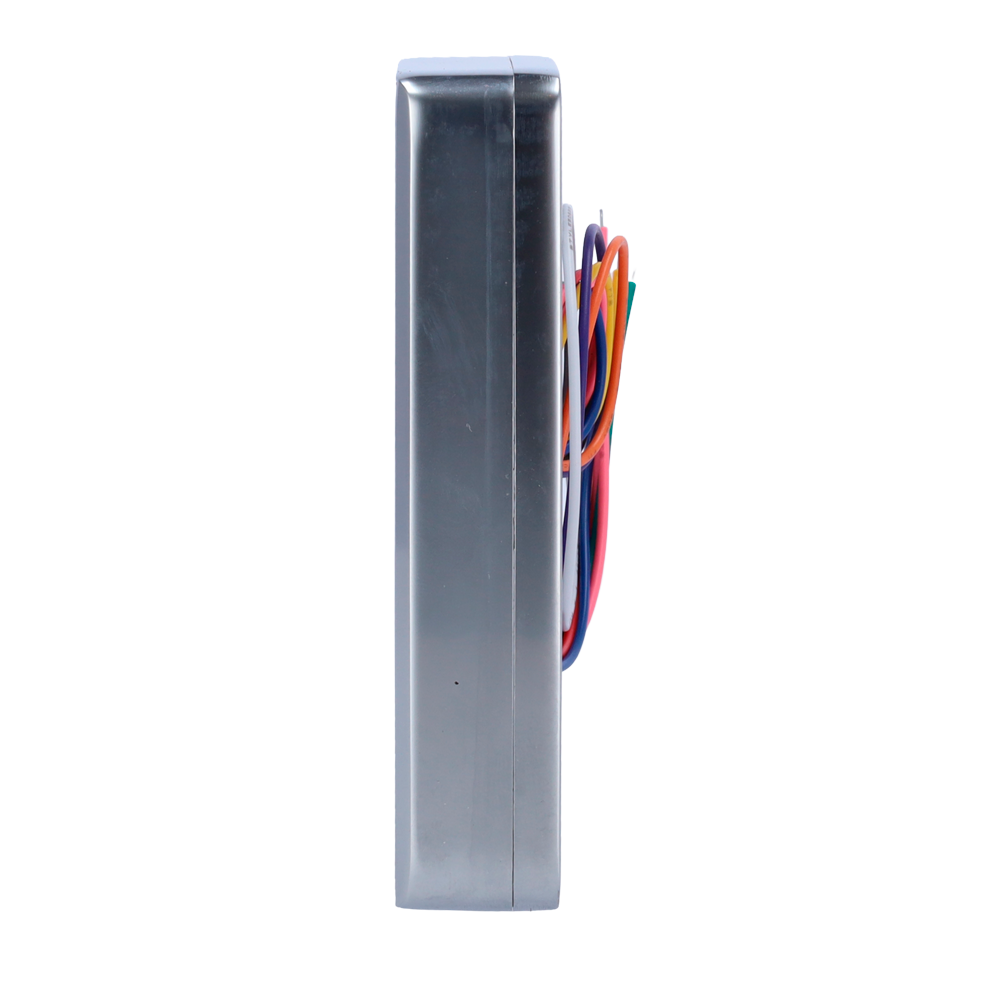

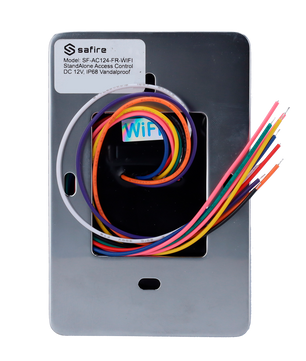

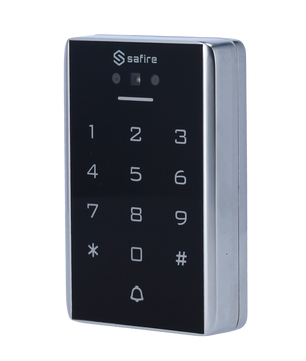

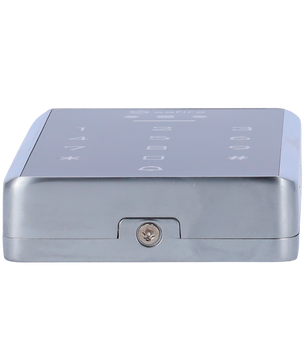

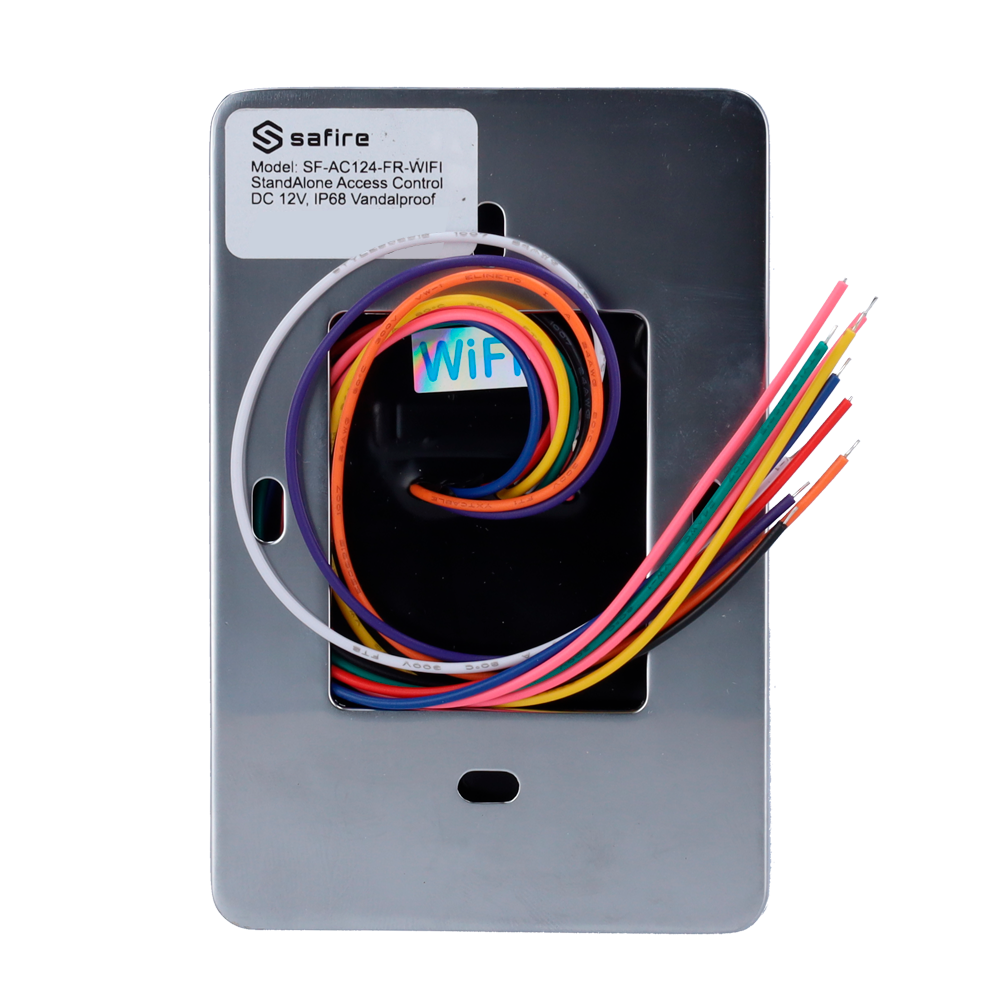

SF Wi-Fi standalone access control keypad

Ref.: SF-AC124-FR-WIFI - visiotech
In stock
€55,84 VAT included

Dispatch: Within 2 business days.

Once your order has been processed, you will receive a tracking number by email.

✓ Secure payment
✓ Fast shipping
✓ Customer support

Description

SF Wi-Fi standalone access control keypad. See below for the features and conditions of use for this product.

Product information and features

Description

A standalone access control device combines the functions of a controller and reader in a single unit. This equipment identifies users, validates their access permissions, and activates the electric lock via the integrated relay.

Authentication can be performed using cards or key fobs with 125 kHz EM RFID technology, numeric codes entered on the keypad, or facial recognition biometrics. It also allows the creation of temporary PIN codes, enabling limited access via the Tuya Smart mobile app.

Thanks to its IP68 protection rating, the equipment is suitable for outdoor installation and withstands the most demanding weather conditions.

Configuration is performed locally, directly on the equipment, allowing management of users, credentials, and special functions, as well as the setting of relay opening and reader read times.

Specifications

Capacity Up to 2,000 cards/passwords and 100 faces
Identification methods Fingerprint, card, PIN, app, and combinations
Proximity card 125 kHz EM RFID
Inputs/Outputs NO/NC relay, push button, and doorbell
Communication Wiegand 26 and Wi-Fi
Special functions Operation as a standalone terminal or as a reader
Power supply 12 V DC
Standby power consumption ≤ 30 mA
Protection rating OUTDOOR IP68
App Tuya Smart
App functions User creation via the app (24-hour permission only) / Temporary codes / Remote opening
Operating temp. -40 ºC ~ +60 ºC
Dimensions 72 (L) x 107 (H) x 21 (D) mm
Weight 600 g
